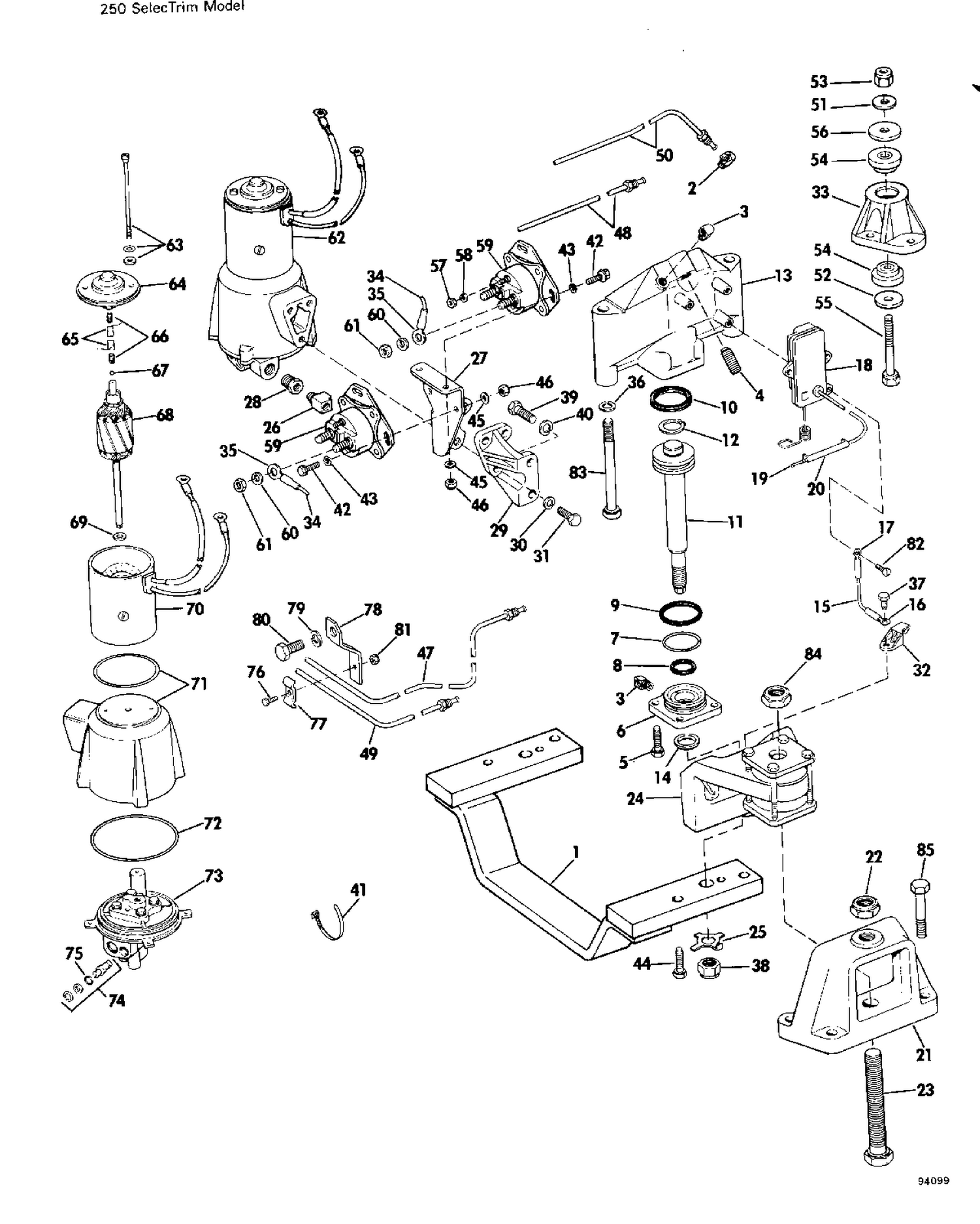

| Ref | Part Number | Description |
|---|
| 1 |
0981156 |
TIE BAR & EXTENSION ASSY |
| 2 |
0908993 |
ELBOW, Trim cyl, stbd |
| 4 |
0908732 |
SET SCREW |
| 5 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 6 |
0909252 |
COVER, Trim cylinder, port & stbd |
| 7 |
0909253 |
BACKUP RING |
| 9 |
0908977 |
QUAD RING, Cover |
| 10 |
0909177 |
T-SEAL, Piston |
| 11 |
0981189 |
PISTON, Rod & ring assy |
| 12 |
0908973 |
RETAINING RING |
| 13 |
0980967 |
TRIM CYL ASSY |
| 14 |
0908975 |
ROD WIPER, Cover, port & stbd |
| 15 |
0980984 |
LEAD ADDY,Trim indicator |
| 18 |
0981286 |
TRIM INDICATOR |
| 21 |
0909710 |
BRACKET, Front mount |
| 22 |
0909194 |
LOCKNUT, Mount bracket |
| 23 |
0908998 |
SCREW |
| 24 |
0980934 |
SUPPORT & BUSHING ASSY |
| 25 |
0909098 |
LOCKWASHER, Tie bar to rod |
| 26 |
0908988 |
MALE TEE |
| 27 |
0908987 |
BRACKET, Solenoids |
| 28 |
3852465 |
BUSHING This part replaces 0908986. |
| 29 |
0908984 |
BRACKET, Pump to engine |
| 31 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 32 |
0909037 |
RETAINER, Support brkt |
| 33 |
0909712 |
BRACKET, Mount striner |
| 34 |
0981890 |
LEAAD ASSY This part replaces 0981601. |
| 36 |
0310855 |
LOCKWASHER |
| 37 |
3852421 |
SCREW, Baffle This part replaces 0907768. |
| 38 |
0907858 |
LOCKNUT, Mount screw |
| 39 |
0306414 |
SCREW |
| 40 |
0120177 |
L'WASHER, Alternator to brkt |
| 44 |
0308197 |
SCREW, Bracket to engine |
| 45 |
0329241 |
RONDELLE This part replaces 0306482. |
| 46 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 47 |
0980942 |
LINE ASSY, Pump to cyl. port |
| 48 |
0980943 |
LINE ASSY, Pump to cyl., stbd |
| 49 |
0980944 |
LINE ASSY, Pump to cover, port |
| 50 |
0980945 |
LINE ASSY, Pump to cover stbd |
| 51 |
0908197 |
WASHER |
| 52 |
3852428 |
WASHER, Lower This part replaces 0907857. |
| 53 |
0908740 |
NUT |
| 54 |
0980159 |
RUBBER MOUNT ASSY |
| 55 |
0908734 |
SCREW |
| 56 |
0909725 |
WASHER, Front mount |
| 59 |
0985063 |
SOLENOID This part replaces 0981410. |
| 62 |
0980940 |
PUMP & MOTOR ASSY |
| 63 |
0172948 |
THRU BOLT PACKAGE |
| 64 |
0979940 |
HEAD ASSY, Comm end |
| 69 |
0172949 |
THRUST WASHER PACKAGE |
| 70 |
0172947 |
FRAME & FIELD ASSY |
| 73 |
0982957 |
PUMP & MTR ASSY This part replaces 0172950. |
| 77 |
0908995 |
CLAMP |
| 78 |
0908994 |
BRACKET |
| 79 |
0303269 |
L'WASHER, Upper |
| 80 |
0311394 |
BOLT, Bracket to head |
| 83 |
0320773 |
SCREW, Trim cyl. to engine |
| 84 |
0909194 |
LOCKNUT, Mount bracket |
| 0172946 |
0172946 |
MOTOR & RESERVOIR ASSY |
| 0981276 |
0981276 |
TRIM CY ASSY,Port |
| 0981277 |
0981277 |
TRIM CY ASSY,Starboard |
