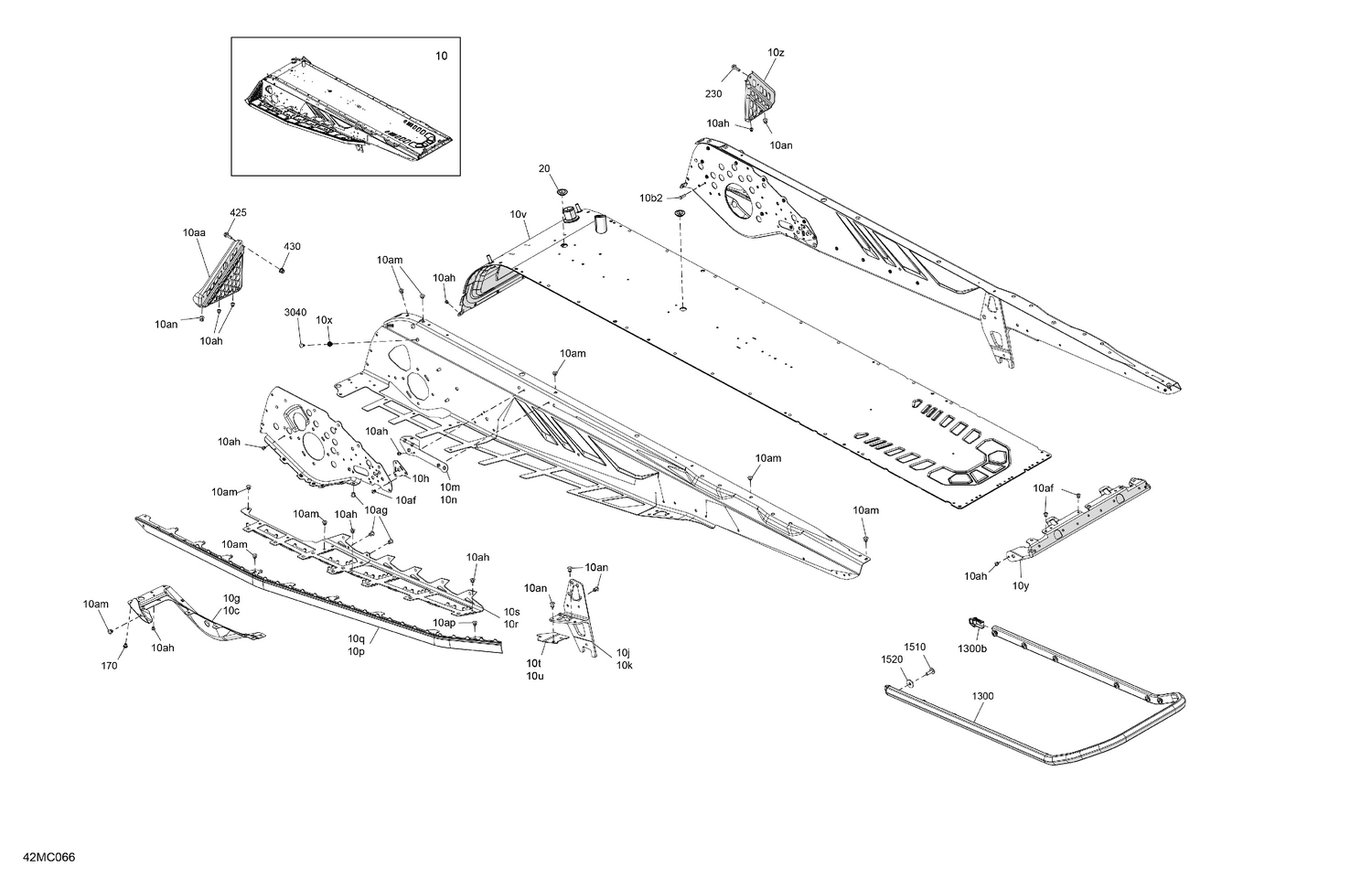

06- Frame - System - Rear Section
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 518332463 | LH Footrest |
| 10af | 390909100 | Avex Rivet |
| 10ag | 293150183 | Rivet |
| 10ah | 390909200 | Avex Rivet |
| 10am | 293150119 | Hemlock Rivet, 6.5 mm |
| 10an | 293150174 | Hemlock Rivet, 6.4 mm |
| 10ap | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10b2 | 250300027 | Clinch Stud M6 X 20 |
| 10c | 518332455 | RH Footrest Reinforcement |
| 10g | 518332456 | LH Footrest Reinforcement |
| 10h | 518333257 | Front Arm Reinforcement |
| 10j | 518336861 | LH Rear Suspension Support This part replaces 518332875. |
| 10k | 518332876 | RH Rear Suspension Support |
| 10m | 518331744 | LH Under Chassis Reinforcement |
| 10n | 518331745 | RH Under Chassis Reinforcement |
| 10p | 518332841 | Formed Boarding Step Rg |
| 10q | 518332842 | Formed Boarding Step |
| 10r | 518332854 | RH Tunnel Liner |
| 10s | 518332855 | LH Tunnel Liner |
| 10t | 518333048 | LH Rear Footrest Reinforcement |
| 10u | 518333049 | RH Rear Footrest Reinforcement |
| 10v | 518334492 | Radiator Tunnel 154 Ass'y |
| 10x | 605636003 | Clinch Nut M6 Hexsert |
| 10y | 518328990 | Rear Cap |
| 10z | 518332462 | RH Footrest |
| 20 | 293730052 | Black, Plug |
| 170 | 293450267 | Insert M5 - 0.8 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1300b | 520001612 | Cap |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 | 224061201 | Flat Washer |
