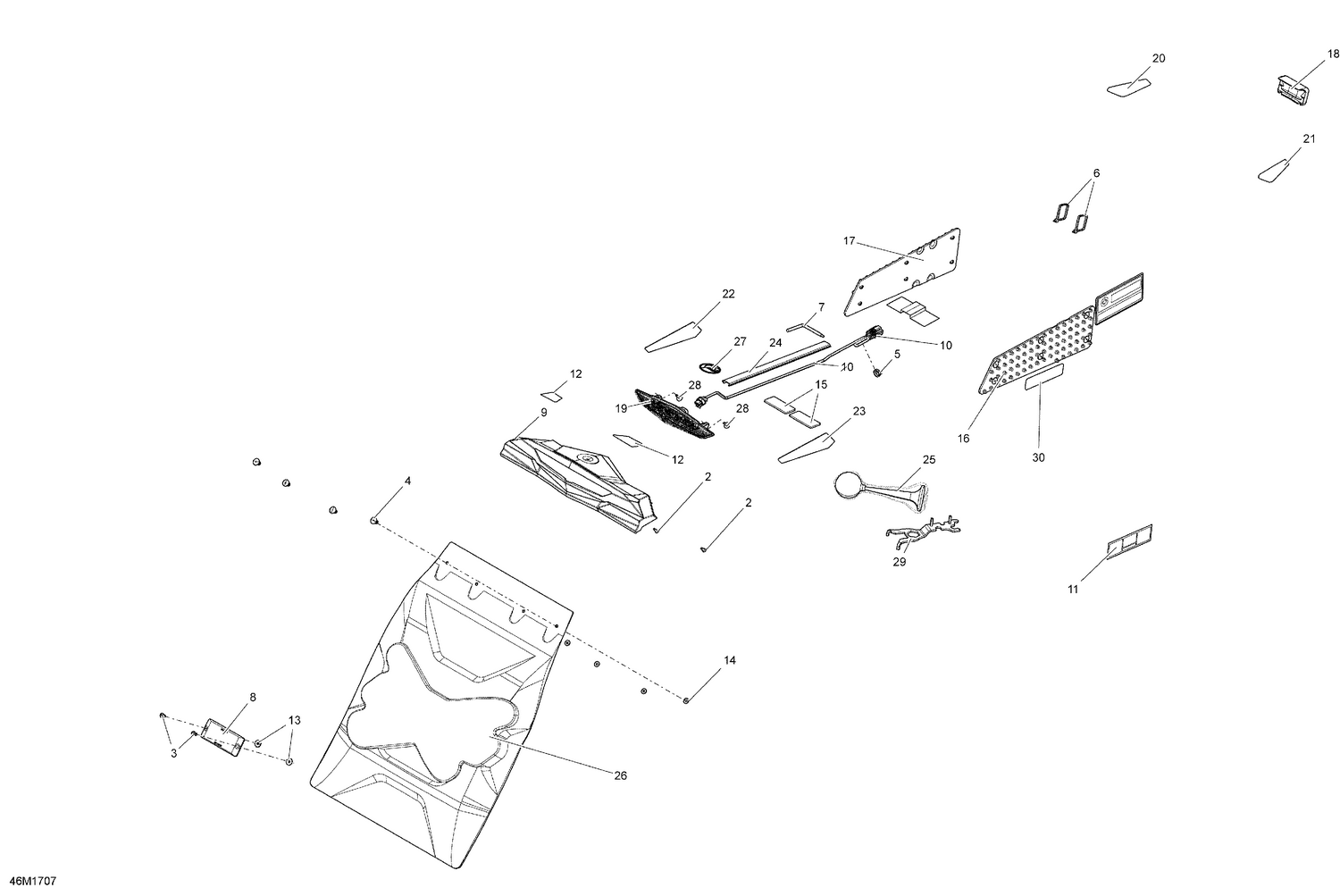

09- Utilities
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 241141340 | Hex. Screw K40 X 13 |
| 4 | 293150104 | Pop Rivet 3/16" |
| 5 | 293750002 | Tie Wrap 142 mm |
| 7 | 417127044 | Belt Installation Tool |
| 9 | 511000810 | Deep Black, Light Fairing |
| 10 | 515178062 | Wiring Harness |
| 11 | 516008203 | DECAL X - Call your local BRP dealership |
| 12 | 516005058 | Warning Decal, Safety |
| 12 | 516006914 | Security Label, XS |
| 14 | 517225900 | Flat Washer |
| 16 | 860200164 | Grip Plate Kit |
| 17 | 860200164 | Grip Plate Kit |
| 19 | 520001143 | Rear Light |
| 20 | 520001236 | Yellow, LH Front Reflector |
| 21 | 520001237 | Yellow, RH Front Reflector |
| 24 | 520000829 | Radiator Trim |
| 26 | 520001441 | Snow Flap |
| 27 | 516008738 | BRP Logo 48mm This part replaces 516006887. |
| 28 | 250000725 | Screw M4 X 16 |
| 29 | 520001499 | Wrench |
