| Ref | Part Number | Description |
|---|
| 1 |
0283532 |
ENGINE COVER ASSY. |
| 1 |
0435139 |
ENGINE COVER ASSY. This part replaces 0432246. |
| 2 |
0391114 |
HOOK Rear, (includes rivets) |
| 3 |
0318836 |
RIVET |
| 4 |
0431940 |
HOOK Front, (includes rivets) |
| 5 |
0334146 |
SEAL |
| 5 |
0334154 |
SEAL |
| 6 |
0331134 |
TILT HANDLE |
| 8 |
0211144 |
APPLIQUE |
| 8 |
0331906 |
APPLIQUE |
| 9 |
0211145 |
PLATE |
| 9 |
0332309 |
PLATE |
| 11 |
0312833 |
HANDLE, Latch |
| 12 |
0204444 |
BUSHING |
| 13 |
0331634 |
BAGUE, câble d'accélérateur |
| 14 |
0396888 |
ENGINE COVER, Lower |
| 16 |
0325104 |
RETAINING RING |
| 17 |
0324973 |
GROMMET, Knob slow speed |
| 18 |
0324974 |
KNOB, Slow speed |
| 19 |
0204457 |
GOMMET, Choke knob |
| 20 |
0325085 |
SLEEVE, Mount engine cover |
| 22 |
0329241 |
RONDELLE This part replaces 0306482. |
| 24 |
0325087 |
SEAL, Engine cover side |
| 25 |
0325088 |
SEAL, Exhaust housing rear, starboard |
| 26 |
0325823 |
SEAL, Exhaust housing, rear port |
| 27 |
0326723 |
BUSHING, Choke knob |
| 31 |
0328031 |
KNOB, Choke |
| 32 |
0306409 |
VIS, collecteur vers carter-moteur |
| 33 |
0302592 |
SCREW |
| 34 |
0334858 |
WASHER |

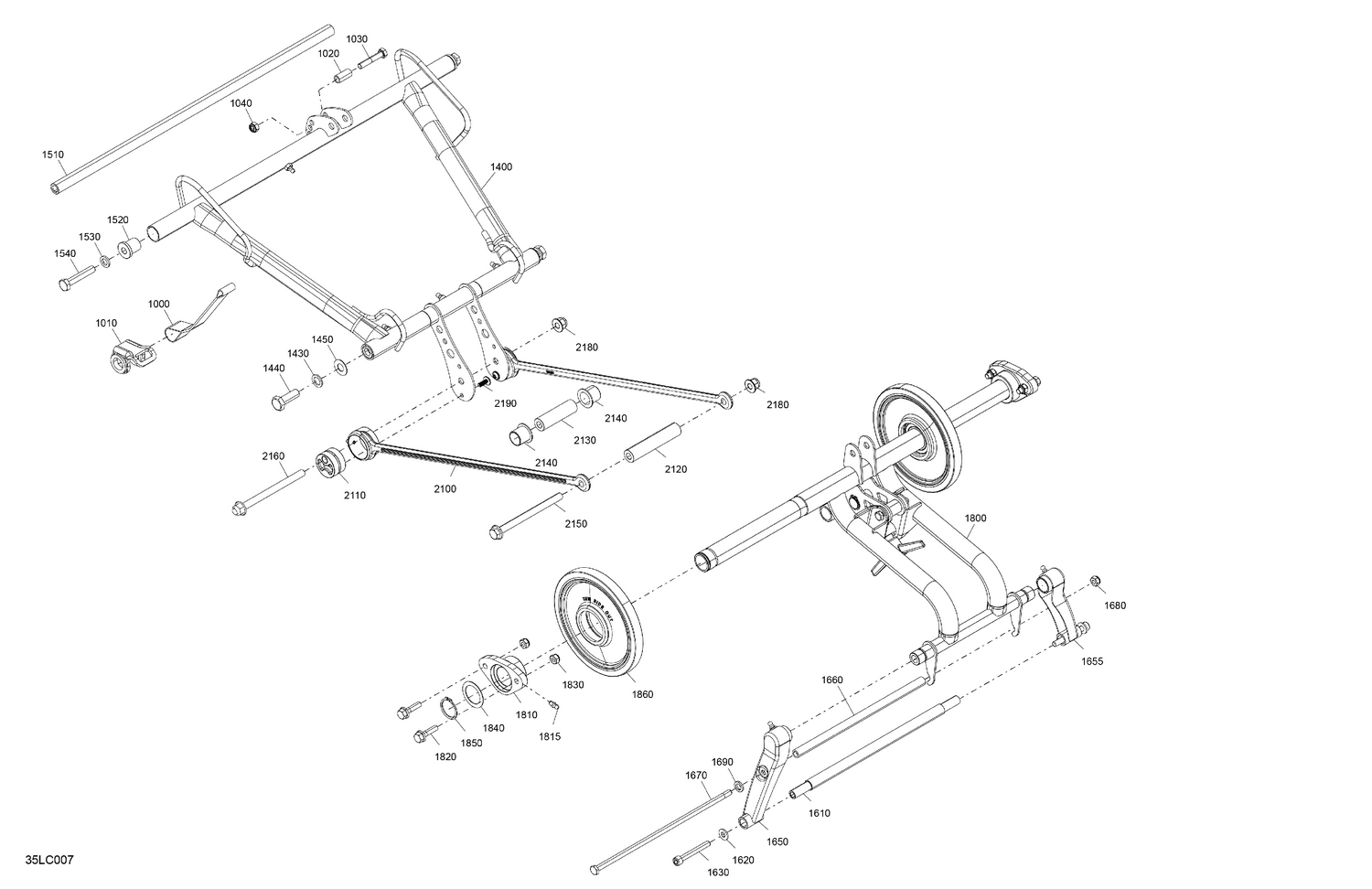

| 1000 |
503195777 |
Strap Stopper |
| 1010 |
503194867 |
Holder, Limiter Strap |
| 1020 |
503195579 |
Sleeve |
| 1030 |
207084544 |
Hex. Screw M8 X 45 |
| 1040 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1400 |
503195581 |
Front Arm Ass'y |
| 1430 |
503192491 |
Washer |
| 1440 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 1450 |
706200281 |
Hardened Washer |
| 1510 |
503191392 |
Upper Shaft |
| 1520 |
503189324 |
Bushing |
| 1530 |
503191926 |
Washer |
| 1540 |
250000605 |
Hex. Screw S.GRIP M10 X 55 |
| 1610 |
503196133 |
Pivot Arm Axle |
| 1620 |
503192494 |
Washer |
| 1630 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 1650 |
503195306 |
LH Rear Swing Ass'y |
| 1655 |
503195307 |
RH Rear Swing Ass'y |
| 1660 |
503195343 |
Spacer |
| 1670 |
503195342 |
Bolt M8 |
| 1680 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1690 |
250200111 |
Washer |
| 1800 |
503195459 |
Rear Arm Ass'y |
| 1810 |
503195042 |
Cushion |
| 1815 |
408200700 |
Grease Fitting |
| 1820 |
207683054 |
Hex. Flange Screw M8 X 30 |
| 1830 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1840 |
503195150 |
Shim Ring 30X42X1.0 |
| 1850 |
293370143 |
Circlip |
| 1860 |
503195041 |
Wheel Ass'y 170 MM |
| 2100 |
503195312 |
Link Rod Ass'y |
| 2110 |
503195337 |
Rod Shaft |
| 2120 |
503194457 |
Rod Shaft |
| 2130 |
503195030 |
Front Swing Shaft |
| 2140 |
503195184 |
Bushing |
| 2150 |
230603044 |
Hex. Flanged Screw DIN.6921 |
| 2160 |
230604044 |
Hex. Flanged Screw M10 X 140 |
| 2180 |
233201414 |
Hex. Flanged Elastic Nut M10 |
| 0211176 |
0211176 |
OWNERS MANUAL |
| 0283728 |
0283728 |
DECAL SET, Ev. |
| 0432358 |
0432358 |
OWNERS MANUAL |
| 0432420 |
0432420 |
OWNERS MANUAL |
| 0433040 |
0433040 |
DECAL SET, Jo. |
