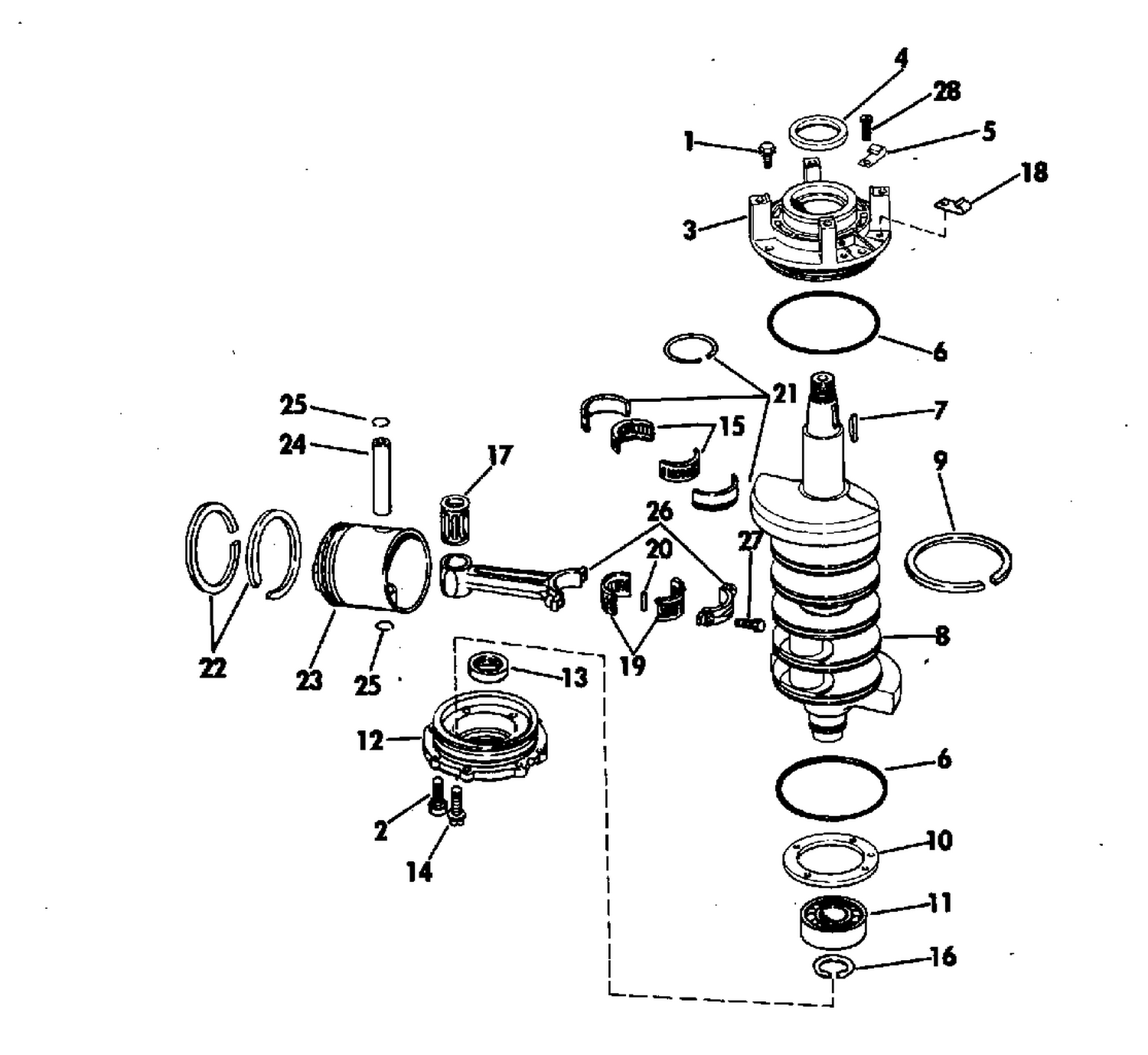

| Ref | Part Number | Description |
|---|
| 1 |
0307028 |
SCREW |
| 2 |
0309924 |
SCREW |
| 3 |
0387432 |
CRANKCASE HEAD BRG. ASSY. This part replaces 0385504. |
| 5 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 6 |
0305123 |
O RING |
| 8 |
0386281 |
CRANDSHAFT ASSY. |
| 9 |
0319244 |
JOINT ANNULAIRE |
| 10 |
0317762 |
PALTE,Lower bearing |
| 11 |
0385503 |
BEARING , Ball |
| 12 |
0396610 |
CRANKCASE HEAD ASSY. This part replaces 0385502. |
| 14 |
0317763 |
SCREW & SEAL, Plate |
| 15 |
0378252 |
BEARING ASSY., Needle |
| 16 |
0308213 |
RETAINING RING |
| 17 |
0395627 |
BEARING & RETAINER This part replaces 0385482. |
| 18 |
0310441 |
CLAMP, CPS lead |
| 19 |
0387787 |
BEARING Assembly, Connecting rod This part replaces 0386534. |
| 20 |
0386535 |
BEARING SET, Conn. rod |
| 21 |
0310433 |
SLEEVE |
| 22 |
0385664 |
RING SET, Std |
| 22 |
0385666 |
RING SET, .030 O.S. |
| 23 |
0388312 |
PISTON, Std., 85 HP This part replaces 0386301. |
| 23 |
0388315 |
PISTON, .030 O.S., 85 HP This part replaces 0386331. |
| 24 |
0317819 |
WRIST PIN |
| 25 |
0317831 |
Circlip |
| 26 |
5006383 |
CONNECTING ROD This part replaces 0385911. |
