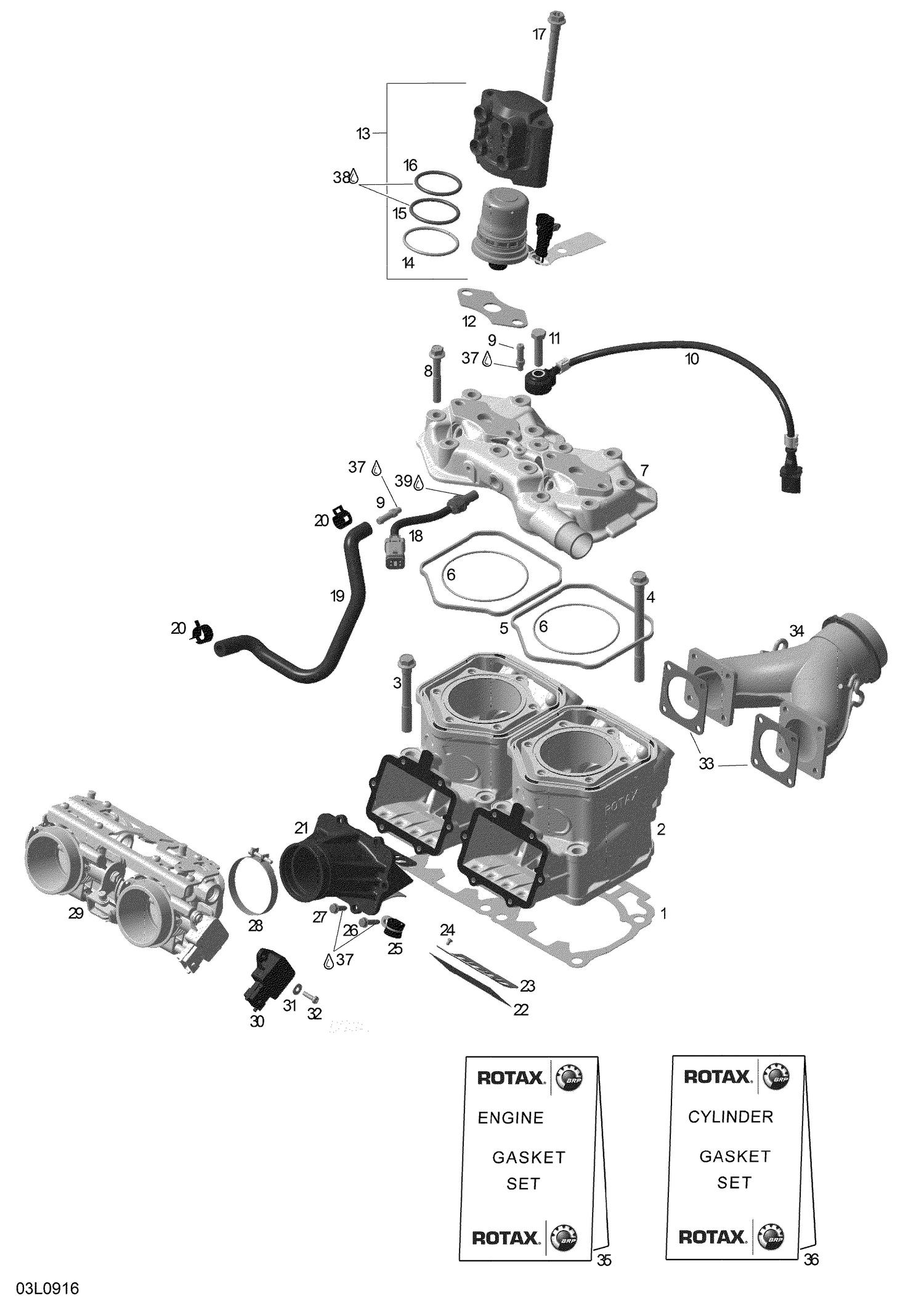

01- Cylinder — Parts Catalog

Parts (40)

Ref	Part Number	Description
1	420431160	Base gasket 0.5 mm
1	420431161	Base gasket 0.6 mm
1	420431162	Double Gasket 0.7 mm This part replaces 420931894.
1	420431163	Double Gasket 0.8 mm This part replaces 420931895.
2	420623263	Cylinder This part replaces 420623262.
3	420640524	Hex screw M10x80
4	420640534	Hex. screw M10x120
5	420931590	Square ring
6	293300026	O-ring
7	420623296	HEAD CYLINDER COVER - Call your local BRP dealership This part replaces 420623292.
8	420941627	Hex. Screw M8 X 56.5
9	420924724	Hose Nipple This part replaces 420924720.
10	270000484	Knock sensor asy
11	207083544	Hex. Screw M8 X 35
12	420430930	Gasket
14	415129497	Crush Ring This part replaces 420827330.
15	415129498	O-Ring This part replaces 420431560.
16	415129499	O-Ring This part replaces 420431550.
17	420441187	Flanged Torx Screw M10 X 90 -SW 13/T50
18	420664509	Temperature Senor This part replaces 515176398.
19	420460867	Molded Hose This part replaces 420460865.
20	293650214	Spring Clamp This part replaces 420853510.
21	420667533	Intake Socket With Reed Valve This part replaces 420667530.
22	420924680	Reed pedal
23	420924695	Pedal stop
24	420941215	Oval-head screw M3x5
25	420851250	Clamp
26	420841550	Tapping Screw M5 X 22
27	420941928	Taptite Screw M5 X 16 This part replaces 420941925.
28	420851065	Clamp
29	420889201	Throttle Body This part replaces 420889197.
30	420866120	Position Sensor This part replaces 270000251.
31	234041600	Washer
32	208641660	Screw
33	420850552	Gasket
34	420673421	Exhaust Manifold This part replaces 420673420.
35	420889931	Engine Gasket Set This part replaces 420889923.
36	420889928	Cylinder gasket set
37	293800060	Loctite 243
38	Not	Available As Spare Part - Engine oil
