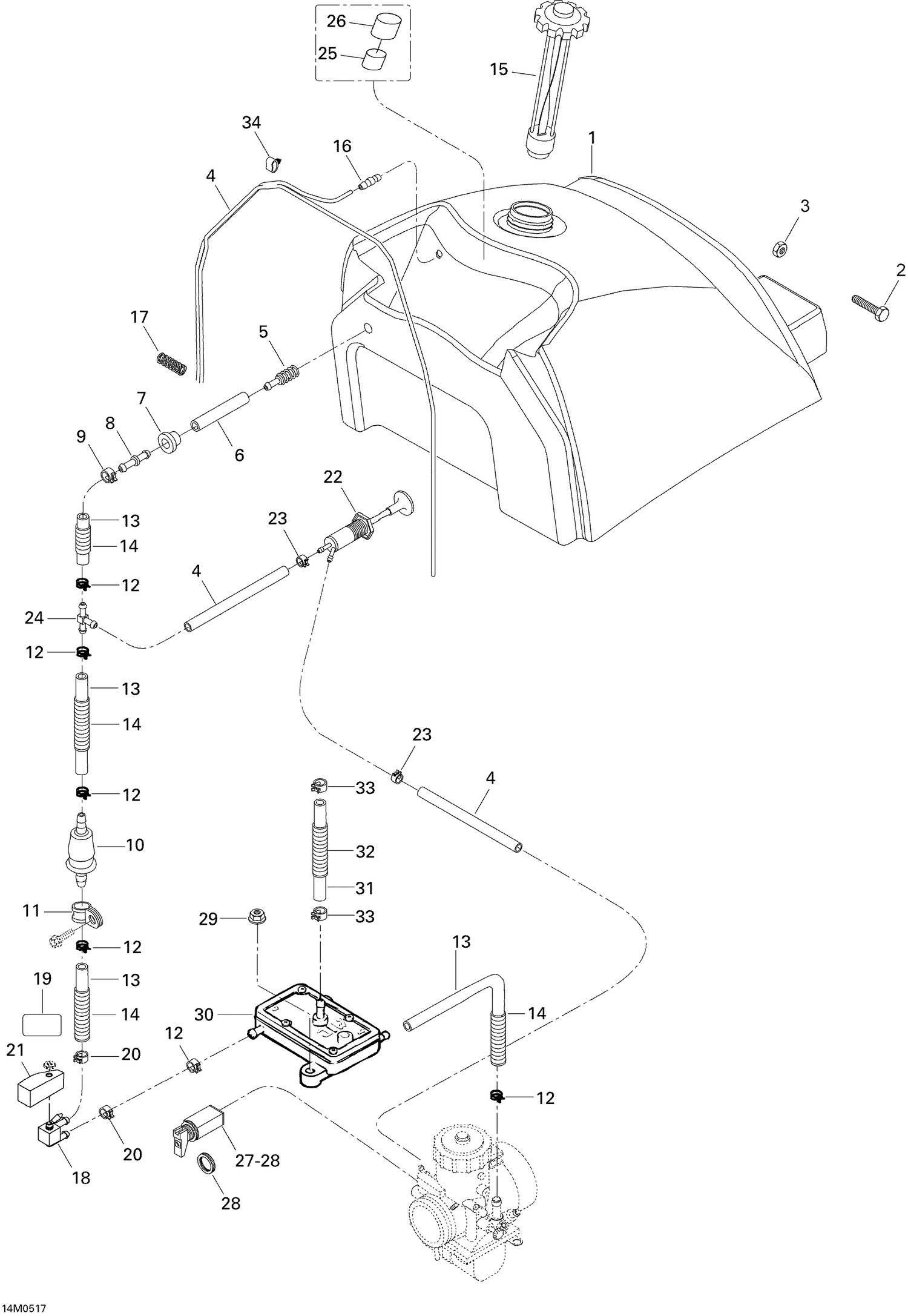

| Ref | Part Number | Description |
|---|
| 1 |
M5145048 |
Fuel Tank |
| 2 |
M40826 |
Hex. Screw |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 4 |
M39035 |
HOSE - Call your local BRP dealership |
| 5 |
414865700 |
Fuel Filter |
| 6 |
M39030 |
Hose |
| 7 |
570045500 |
Grommet |
| 8 |
414518500 |
Male Connector |
| 9 |
414554800 |
Spring Clamp |
| 10 |
605352516 |
Fuel Filter This part replaces 414363600. |
| 11 |
M27039 |
CLAMP - Call your local BRP dealership |
| 12 |
M27086 |
Spring Clamp |
| 13 |
219704397 |
Hose 5/8 1000MM LONG - Call your local BRP dealership |
| 14 |
M28012 |
HOUSING - Call your local BRP dealership |
| 15 |
605349994 |
Cap Fuel Tank |
| 16 |
404127600 |
NIPPLE - Call your local BRP dealership |
| 17 |
M25006 |
SPRING - Call your local BRP dealership |
| 18 |
414935900 |
SHUT OFF VALVE - Call your local BRP dealership |
| 19 |
605452092 |
Instruction Decal |
| 20 |
414554800 |
Spring Clamp |
| 21 |
605451399 |
Fastening Bracket |
| 22 |
415060500 |
Primer |
| 23 |
Not |
Available As Spare Part - Spring Clamp |
| 24 |
M21067 |
T Fitting |
| 25 |
M5446811 |
HOLDER - Call your local BRP dealership |
| 26 |
605450311 |
Plug Hose |
| 27 |
M524046 |
CABLE-CHOKE - Call your local BRP dealership |
| 28 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 29 |
232561414 |
Elastic Stop Nut M6 |
| 30 |
403800800 |
FUEL PUMP DF44-226A - Call your local BRP dealership |
| 31 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 32 |
M28015 |
HOUSING - Call your local BRP dealership |
| 33 |
414420700 |
Spring Clamp |
