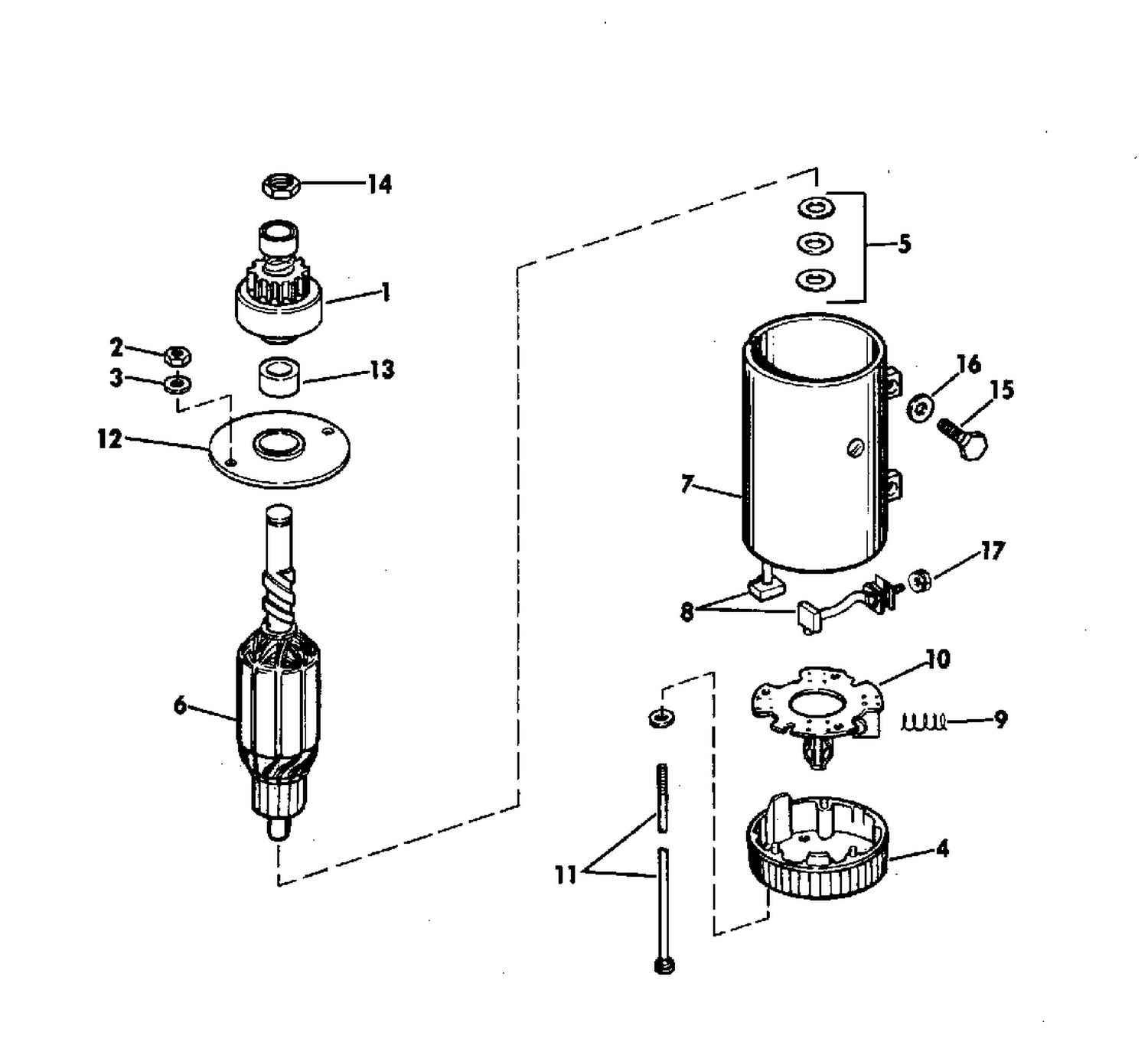

| Ref | Part Number | Description |
|---|
| 1 |
0315377 |
DRIVE ASSEMBLY |
| 3 |
0329241 |
RONDELLE This part replaces 0306482. |
| 4 |
0379966 |
HEAD ASSEMBLY, Commutator end |
| 5 |
0384306 |
THRUSH WASHER PKG. This part replaces 0383843. |
| 6 |
0315376 |
ARMATURE |
| 7 |
0382963 |
FRAME & FIELD ASSEMBLY, Complete |
| 9 |
0383142 |
SPRING SET |
| 10 |
0379967 |
BRUSH PLATE & HOLDER |
| 11 |
0383198 |
THROUGH BOLT PKG ASSEMBLY |
| 12 |
0385059 |
HEAD ASSY, Drive end This part replaces 0383842. |
| 14 |
0307936 |
STOP NUT |
| 15 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 15 |
0306501 |
BOLT, Water pump |
| 0383575 |
0383575 |
STARTER MOTOR ASSEMBLY |
