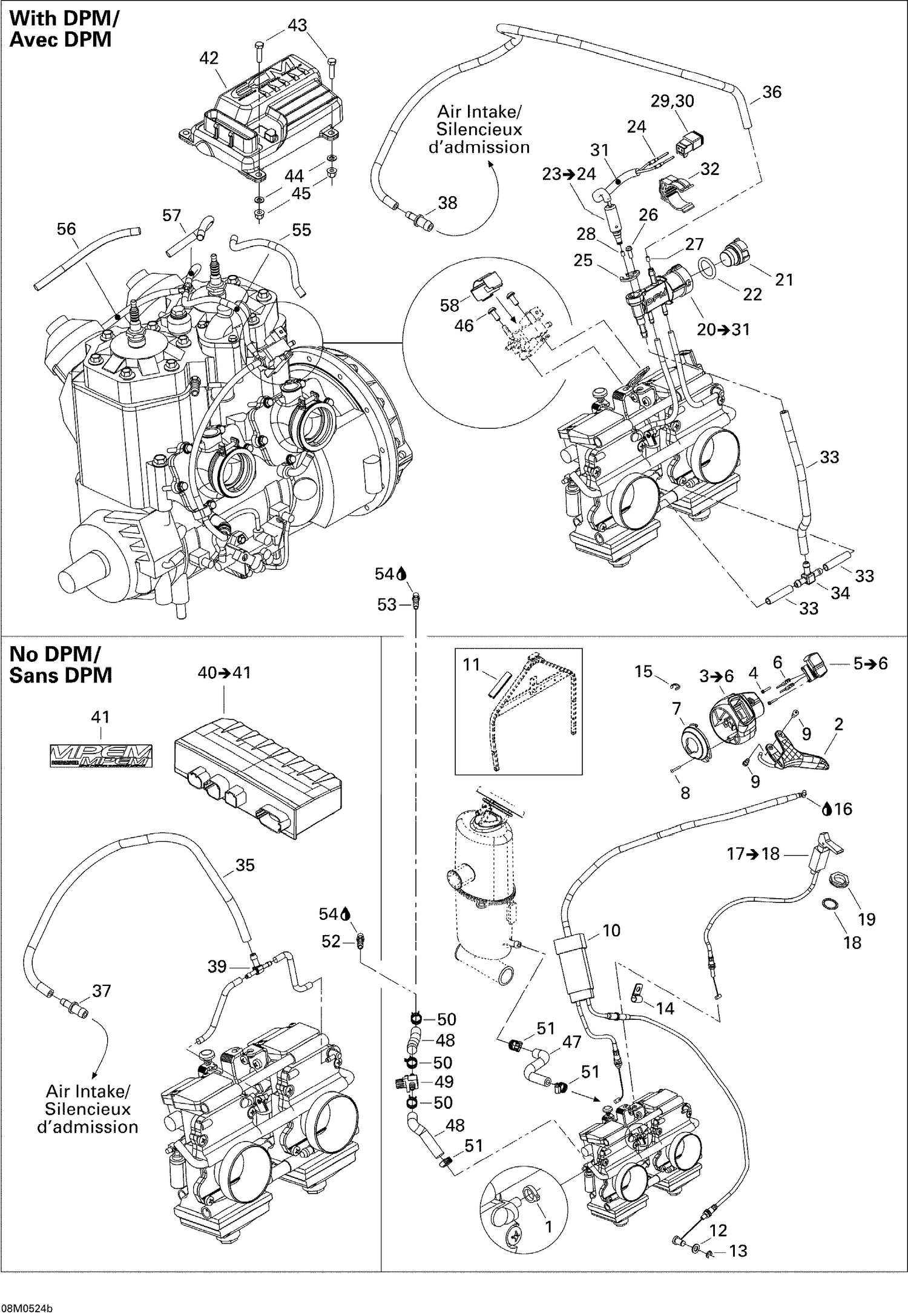

01- Engine 2
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293750001 | Tie Wrap 94 mm |
| 2 | 512060484 | Throttle Handle Ass'y This part replaces 512059891. |
| 4 | 250000098 | PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 5 | 512060121 | Housing Throttle Ass'y This part replaces 415128683. |
| 6 | 515175232 | Male Terminal |
| 7 | 512059698 | COVER - Call your local BRP dealership |
| 8 | 250000098 | PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 9 | 732601143 | Flange Screw |
| 11 | 512059750 | PROTECTOR - Call your local BRP dealership |
| 12 | 234081100 | Flat Washer 8 mm, Nylon |
| 13 | 414753500 | Circlip |
| 14 | 414176000 | Open Clamp |
| 15 | 414274500 | Circlip |
| 16 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 17 | 512059266 | CHOKE CABLE - Call your local BRP dealership |
| 18 | 394103300 | Lock Washer, Interior Teeth |
| 19 | 512059094 | PLASTIC NUT - Call your local BRP dealership |
| 47 | 509000171 | FORMED HOSE - Call your local BRP dealership |
| 48 | 509000093 | Hose 8 mm |
| 49 | 512059324 | Valve 5/16” |
| 50 | 414655700 | Spring Clamp |
| 51 | 293650170 | Tridon Gear Clamp |
| 54 | 219704455 | Was 293800018 Loctite 592, 50 ml |
