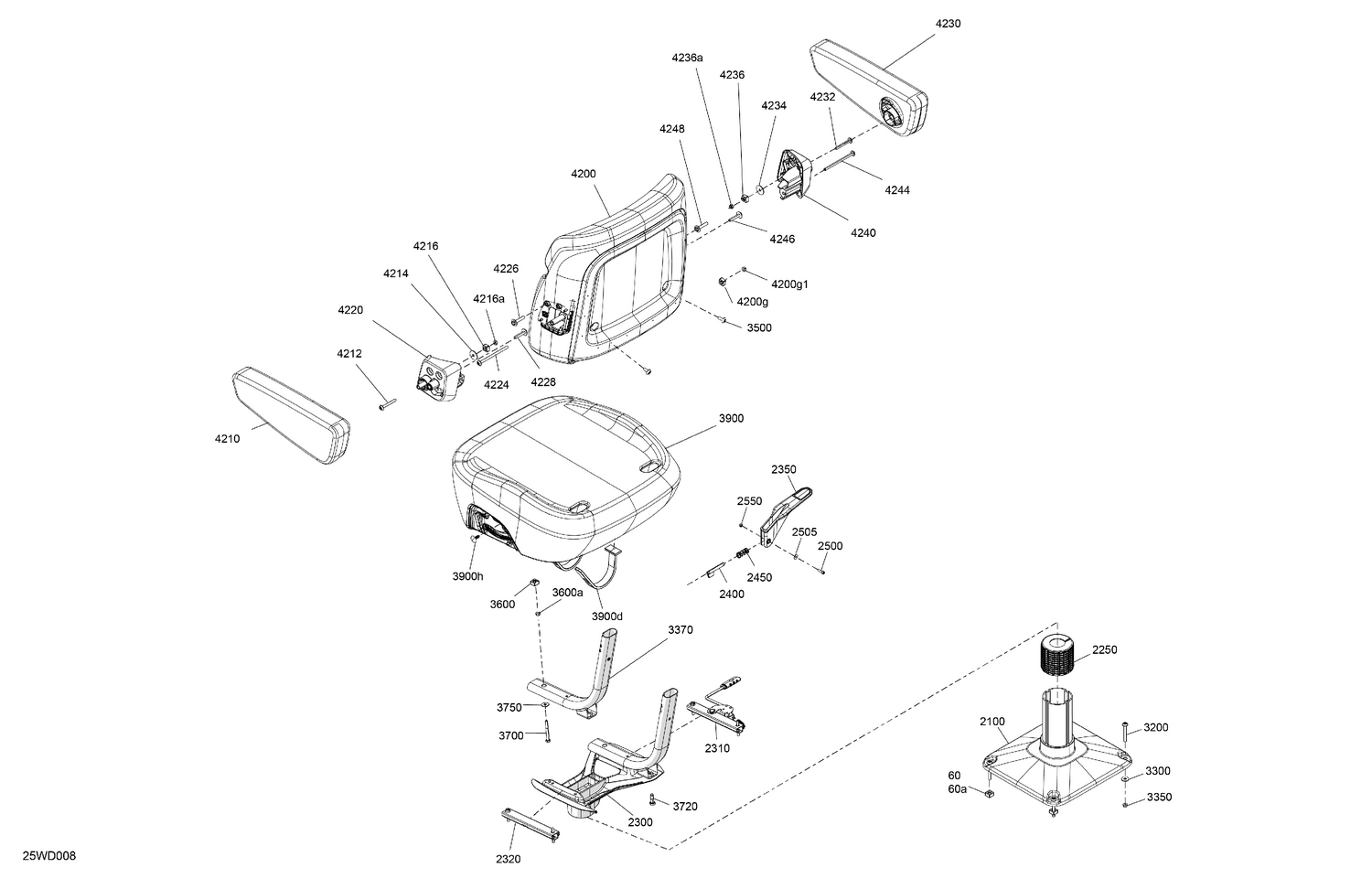

03- HELM - Driver Seat
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 60a | 232561200 | Brass Elastic Stop Nut M6 |
| 2100 | 295101108 | Seat Anchorage Service Kit |
| 2250 | 281000022 | Sleeve |
| 2300 | 281000163 | Seat Support |
| 2310 | 708003617 | RH Slide |
| 2320 | 708003618 | LH Slide |
| 2350 | 281000020 | Seat Latch |
| 2400 | 281000051 | Latch Rod |
| 2450 | 281000063 | Compression Spring |
| 2500 | 250001011 | Black, Socket Head Screw M4 X 16 |
| 2505 | 234042600 | Flat Washer 4 mm, Stainless |
| 2550 | 232541200 | Elastic Stop Nut M4 |
| 3200 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 3300 | 234062600 | Flat Washer M6, Stainless |
| 3350 | 232561200 | Brass Elastic Stop Nut M6 |
| 3370 | 281000181 | Backrest Support Ass'y |
| 3500 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 3600a | 232561200 | Brass Elastic Stop Nut M6 |
| 3700 | 232581200 | Hex. Elastic Nut M8 Brass |
| 3720 | 207382560 | Hex. Screw M8 X 25, Scotch Grip |
| 3750 | 234062600 | Flat Washer M6, Stainless |
| 3900d | 269502417 | Strap |
| 3900h | 293730011 | Black, Dart |
| 4200 | 281000142 | Dusty Navy Satin, Driver Backrest Ass'y |
| 4200g1 | 232561200 | Brass Elastic Stop Nut M6 |
| 4210 | 281000196 | LH Driver Arm Rest Ass'y |
| 4212 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 4214 | 250200044 | Flat Washer M6 X 25 |
| 4216a | 232561200 | Brass Elastic Stop Nut M6 |
| 4220 | 281000138 | LH Arm Rest Trim |
| 4224 | 250001163 | Cone Torx Truss Screw HD.M6 X 100 |
| 4226 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 4228 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 4230 | 281000197 | RH Driver Arm Rest Ass'y |
| 4232 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 4234 | 250200044 | Flat Washer M6 X 25 |
| 4236a | 232561200 | Brass Elastic Stop Nut M6 |
| 4240 | 281000139 | RH Arm Rest Trim |
| 4244 | 250001163 | Cone Torx Truss Screw HD.M6 X 100 |
| 4246 | 250000399 | Hexagonal Cap Screw M6 X35 |
