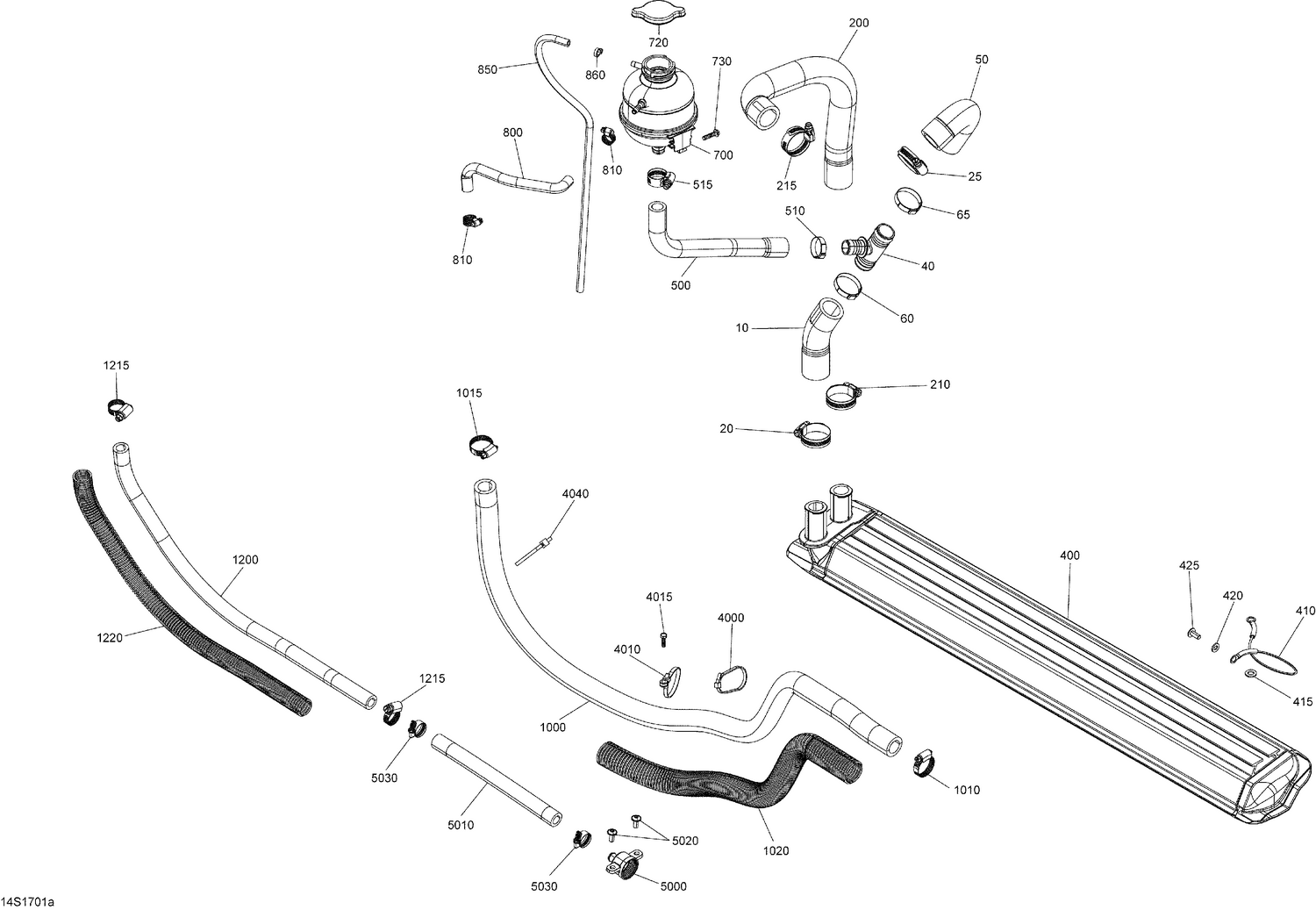

01- Cooling System - All Models
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000292 | Radiator Hose |
| 20 | 293650245 | Norma Clamp |
| 25 | 293650245 | Norma Clamp |
| 40 | 509000372 | T-Fitting |
| 50 | 276000301 | Hose |
| 60 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 65 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 200 | 276000449 | Cooling Hose This part replaces 276000291. |
| 210 | 293650245 | Norma Clamp |
| 215 | 293650245 | Norma Clamp |
| 400 | 276000389 | Heat Exchanger |
| 410 | 278003272 | Ground Wire |
| 420 | 234061600 | Stainless Flat Washer M6 |
| 425 | 250000384 | Torx Screw M6 X 14 |
| 500 | 276000290 | Hose |
| 510 | 293650099 | Crimp Clamp |
| 515 | 293650016 | Tridon Clamp |
| 700 | 509000802 | Coolant Tank |
| 720 | 509000180 | Radiator Pressure Cap |
| 730 | 241152060 | Hex. Flange Screw K50 X 20 |
| 730a | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 800 | 276000316 | Formed Hose |
| 810 | 293650170 | Tridon Gear Clamp |
| 850 | 219704410 | Polyurethane Hose 10000Mm Long |
| 860 | 293750001 | Tie Wrap 94 mm |
| 1010 | 293650051 | Tridon Gear Clamp |
| 1015 | 293650051 | Tridon Gear Clamp |
| 1020 | 219704402 | Tubing 25 MM 1000MM Long |
| 1210 | 293650172 | Tridon Gear Clamp |
| 1215 | 293650172 | Tridon Gear Clamp |
| 1220 | 219704398 | Was 409901600 Tubing 19mm |
| 4000 | 293750008 | Tie Wrap 368 mm |
| 4010 | 293750049 | Tie Rap 305 mm with Screw Mount Hole #10 |
| 4015 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 4040 | 414115200 | Tie-Rap 180 mm |
| 5000 | 269800521 | Drain Plug Neck |
| 5010 | 219704394 | Was 276000001 Hose 12.5 mm |
| 5020 | 250000384 | Torx Screw M6 X 14 |
