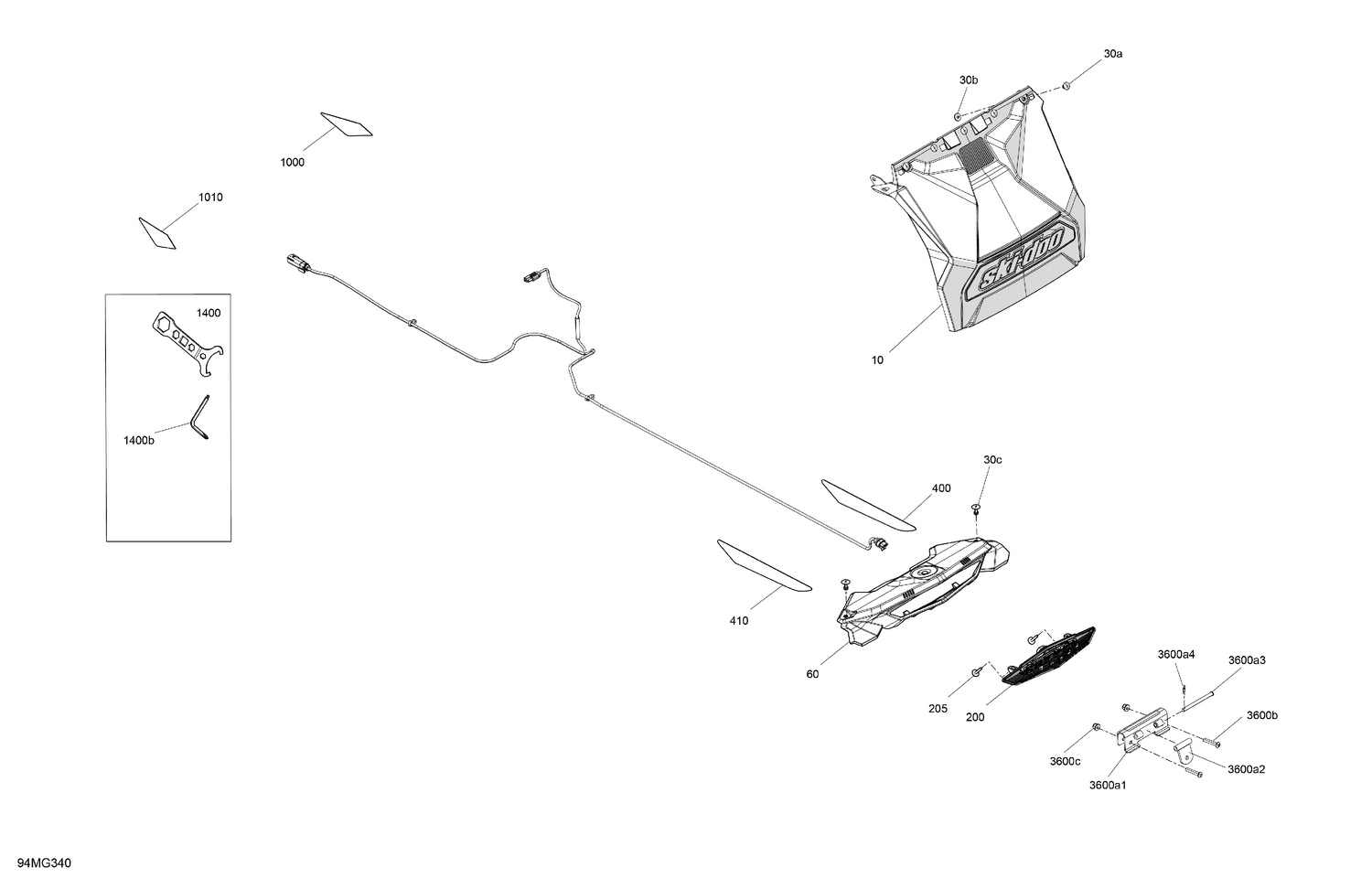

09- Miscellaneous - Utilities
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 30b | 517124300 | Washer |
| 30c | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 60 | 520001487 | Light Fairing |
| 200 | 520002710 | Tail Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 3600a3 | 511001451 | Lock Pin |
| 3600a4 | 371800200 | Cotter Pin |
| 3600b | 205484566 | Socket Head Screw M8 X 45 |
