| Ref | Part Number | Description |
|---|
| 1 |
0385492 |
CYLINDER & CRANKCASE ASSEMBLY |
| 3 |
0310221 |
CORE PLUG |
| 4 |
0314969 |
STUD |
| 5 |
0310507 |
PLUG |
| 6 |
0310872 |
STUD |
| 8 |
0315405 |
SCREW, C' case to cyl.-1-5/8" long |
| 8 |
0317926 |
SCREW, C' case to cyl.-2-1/4" long |
| 10 |
0318357 |
DEFLECTOR, Cyl. water passage |
| 11 |
0330179 |
WASHER This part replaces 0303304. |
| 13 |
0385683 |
BELLCRANK & SHLDR PIN ASSY |
| 14 |
0314416 |
BUMBER, Advance screw |
| 16 |
0314964 |
SEAL, Cyl, to c'case |
| 17 |
0300646 |
VIS, ancrage |
| 18 |
0307133 |
GASKET |
| 19 |
0310532 |
COVER BY-PASS |
| 20 |
0323045 |
COVER, By-pass This part replaces 0311240. |
| 22 |
0318590 |
BUSHIG,Bellcrank & rod |
| 24 |
0376349 |
FIL, masse |
| 25 |
0306409 |
VIS, collecteur vers carter-moteur |
| 27 |
0318662 |
GASKET, Cyl. head 85 HP |
| 28 |
0318332 |
CYLINDER HEAD, Stbd |
| 29 |
0318335 |
COVER, Cylinder head |
| 30 |
0318333 |
COVER, Cylinder head |
| 32 |
0306409 |
VIS, collecteur vers carter-moteur |
| 33 |
0307267 |
SCREW |
| 34 |
0384771 |
SPARK PLUG, Ch ul-77v |
| 35 |
0378176 |
SWITCH TEM P |
| 37 |
0318388 |
HOSE, Cyl. head, stbd |
| 38 |
0318387 |
HOSE, Cyl. head port |
| 39 |
0324825 |
CLAMP, Cylinder head hose This part replaces 0305646. |
| 40 |
0318331 |
CYL. HEAD PORT |
| 41 |
0318334 |
GASKET, Cover port |
| 42 |
0317951 |
GASKET, Water pass. cover |
| 43 |
0318473 |
COVER, Water passage |
| 45 |
0385833 |
BELLCRANK & SHOULDER STUD ASSEMBLY |
| 46 |
0317914 |
GASKET, Exh. cover |
| 47 |
0385464 |
THERMO SWITCH LEAD |
| 49 |
0317729 |
COVER, Exh. inner |
| 51 |
0317902 |
COVER, Exhause outer |
| 52 |
0317914 |
GASKET, Exh. cover |
| 53 |
0309905 |
SCEW,Cylinder head |
| 55 |
0318208 |
BUSHING, Shift lever |
| 56 |
0120356 |
COTTER PI, Retainer |
| 58 |
0385684 |
SHIFT LEVER & STUD ASSY |
| 61 |
0318660 |
BUMPER, Screw, throttle stop |
| 62 |
0310441 |
CLAMP, CPS lead |
| 63 |
0313774 |
RETAINER CYL. HEAD COVER |
| 66 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 67 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 68 |
0315104 |
RETAINER, #3 ing. lead |
| 69 |
0318485 |
LIFT BRACKET, Cylinder |
| 71 |
0314515 |
SCREW |
| 72 |
0318248 |
BUSHING BELLCRANK |
| 75 |
0322357 |
SCREW, Idle adjust This part replaces 0302238. |
| 76 |
0318561 |
LEVER, Spark adjust |
| 77 |
0318558 |
STUD, Throttle lever |
| 78 |
0395310 |
THROTTLE CAM ASSY. This part replaces 0383649. |
| 81 |
0310524 |
YOKE |
| 82 |
0318207 |
BUSHING,Shift lever |
| 84 |
0318559 |
BUSHING |
| 86 |
0318560 |
BUSHING, Spark lever |
| 87 |
0314098 |
WASHER, Throttle lever |
| 88 |
0314094 |
LINK, Throttle lever to cam |
| 89 |
0315107 |
LINK, Throttle lever |
| 90 |
0314136 |
VIS, came de papillon |
| 92 |
0204445 |
BOW WASHER |
| 93 |
0204757 |
BOW WASHER |
| 94 |
0302474 |
WAHSER,Link |
| 95 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT |
| 96 |
0306915 |
SCREW |
| 97 |
0310498 |
WASHER |
| 99 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 100 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 101 |
0318402 |
ROD, Spare advance |
| 103 |
0303884 |
RONDELLE |
| 104 |
0306358 |
FLAT WASHER, Helm mounting |
| 105 |
0204757 |
BOW WASHER |
| 106 |
0318589 |
ROD, Shift lever to bellcrank |
| 108 |
0318389 |
BRACKET, Safety switch |
| 109 |
0318562 |
WASHER, Stud |

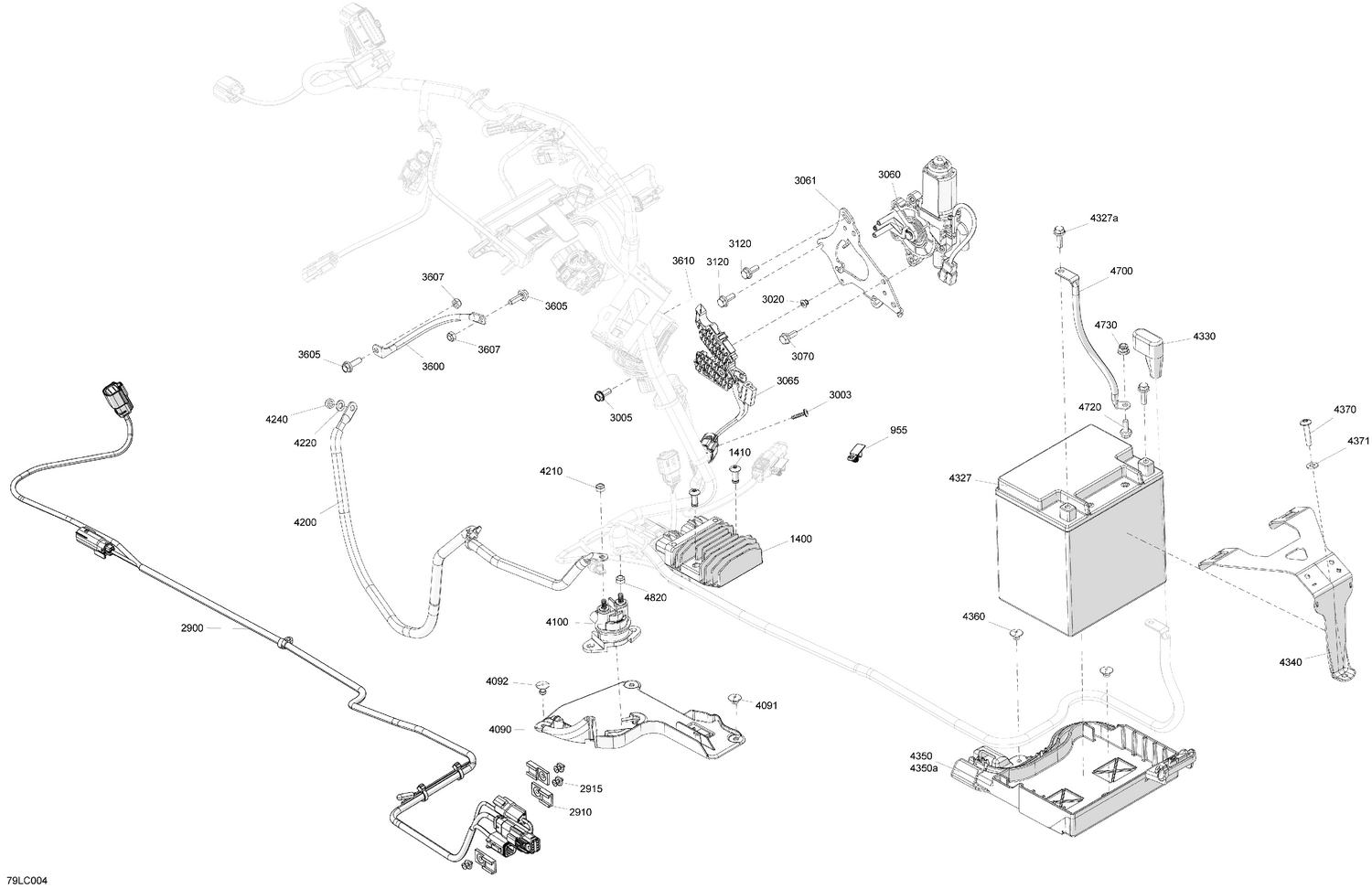

| 955 |
515178223 |
Clip Connector |
| 1400 |
710010539 |
Voltage Regulator This part replaces 710005569. |
| 1410 |
293150182 |
Monobolt Rivet 6.4 |
| 2900 |
515179519 |
SUB HARNESS ALPINE - Call your local BRP dealership This part replaces 515178971. |
| 2910 |
270000141 |
Clip |
| 2915 |
293150037 |
Avdel Rivet 3/16" |
| 3003 |
250000742 |
Torx Screw M5 X 14 |
| 3005 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 3020 |
390402200 |
Pop Rivet 3/16 |
| 3060 |
515180200 |
Engine Assembly |
| 3061 |
515179332 |
Stop Plate |
| 3070 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 3120 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 3600 |
515178338 |
Ground Wire |
| 3605 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3607 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 |
250000911 |
Hex. Flange Screw M5 X 16 |
| 4090 |
515178244 |
Support |
| 4091 |
293150103 |
Pop Rivet 3/16 |
| 4092 |
293150104 |
Pop Rivet 3/16 |
| 4100 |
278003012 |
Starter Relay |
| 4200 |
515178336 |
Battery Wire |
| 4210 |
232561434 |
Elastic Stop Nut M6 |
| 4220 |
234061410 |
Flat Washer 6 mm |
| 4240 |
232561434 |
Elastic Stop Nut M6 |
| 4327a |
250000282 |
Battery Bolt Kit |
| 4330 |
710001817 |
Protector Cap |
| 4340 |
515178658 |
Battery Strip |
| 4350a |
515178659 |
Battery Support Under |
| 4360 |
293150103 |
Pop Rivet 3/16 |
| 4370 |
250000843 |
Torx Truss Screw M6 X 30 |
| 4371 |
224061121 |
Flat Washer |
| 4700 |
515178564 |
Cable |
| 4720 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 4730 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
