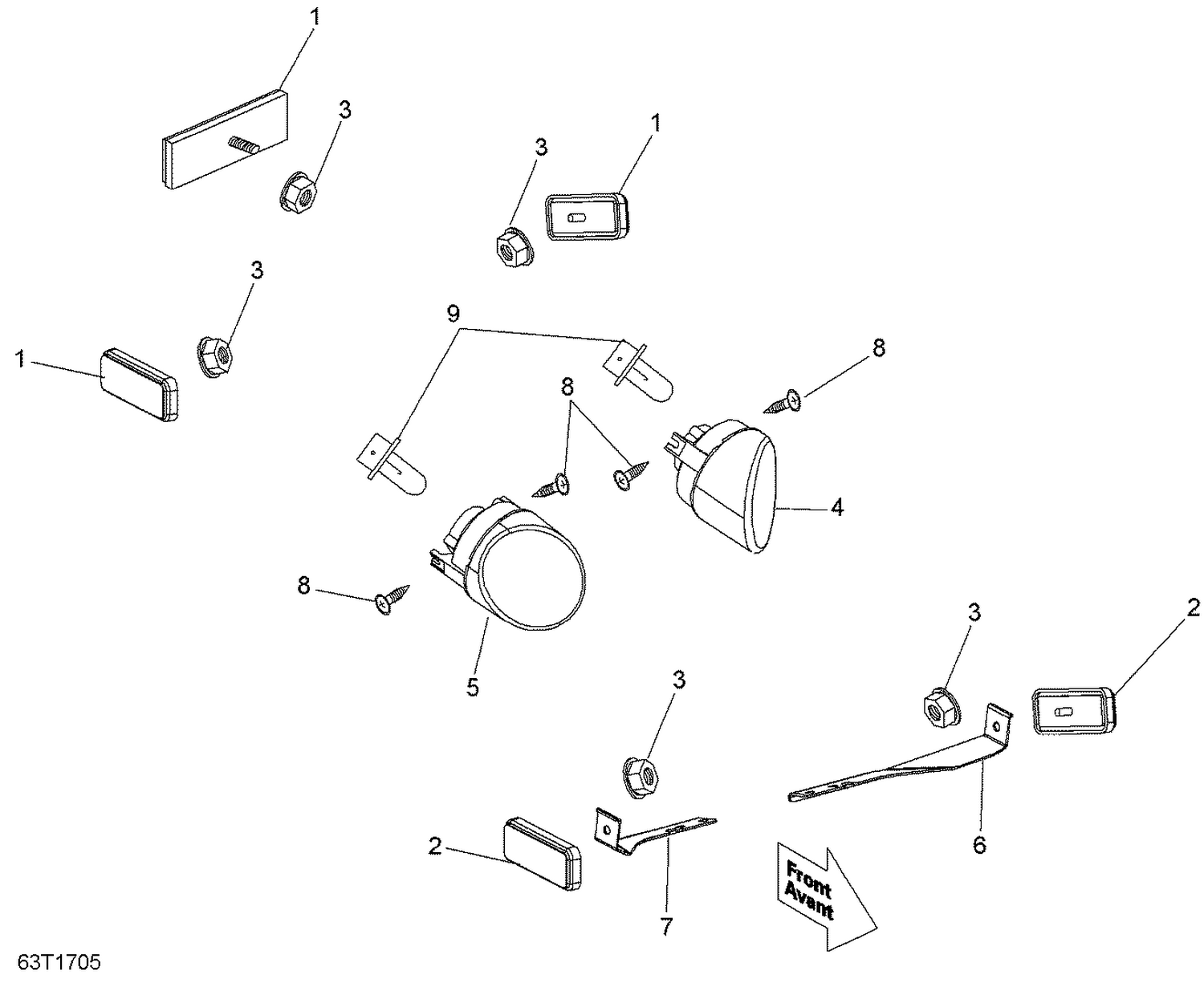

10- Headlights And Reflectors
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V64501MAA010LL | Reflector, Red |
| 2 | V64502DGF040LL | Reflector, Yellow |
| 3 | 232561414 | Elastic Stop Nut M6 |
| 4 | V80112DGF050LL | LH Headlight |
| 5 | V80212DGF050LL | RH Headlight |
| 6 | V50292DGF020 | LH Front Reflector Bracket |
| 7 | V50295DGF010 | RH FRONT REFLECTOR BRACKET - Call your local BRP dealership |
| 8 | V9600004012010LL | Round Head Bolt |
| 9 | V33100DGF000 | Light |
