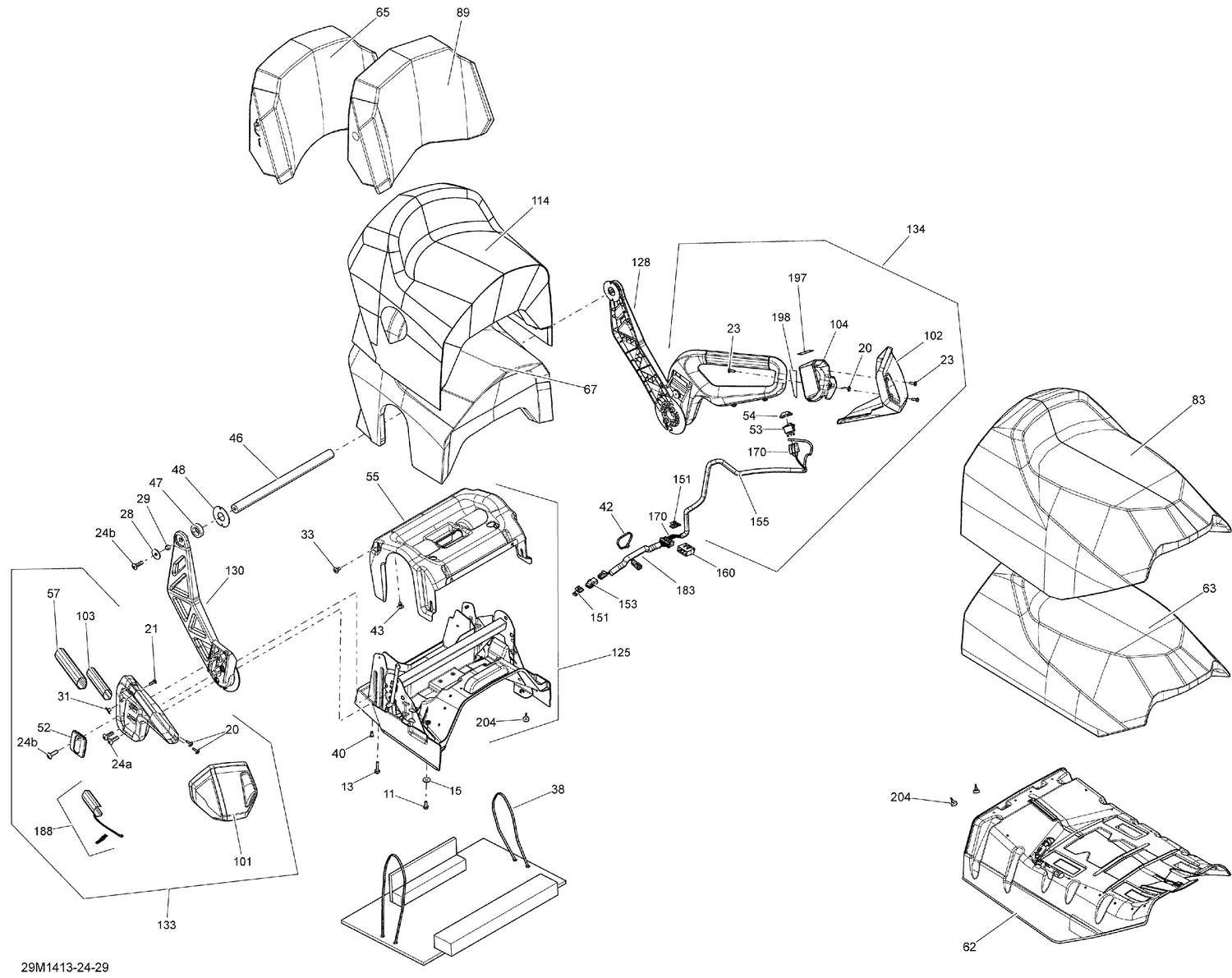

09- Seat
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 13 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 15 | 224061201 | Flat Washer |
| 20 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 21 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 23 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 24a | 250000746 | Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 28 | 250200128 | Flat Washer 8 mm |
| 29 | 271000558 | Spacer |
| 31 | 293100003 | Nut Welded, M6 |
| 33 | 390410100 | Pop Rivet 3/16” |
| 38 | 293750008 | Tie Wrap 368 mm |
| 40 | 293150100 | Pop Rivet 3/16" |
| 42 | 414115200 | Tie-Rap 180 mm |
| 43 | 414644300 | Black, Dart |
| 46 | 510004377 | Upper Backrest Axle |
| 47 | 510004378 | Rubber Shim |
| 48 | 510004379 | Washer |
| 52 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 53 | 510004413 | Rocker Switch |
| 54 | 510004414 | Switch Protector |
| 55 | 510004423 | Foam Support |
| 57 | 510004449 | Handle Grip |
| 62 | 510004775 | Front Seat Base |
| 63 | 510004777 | Front Seat Foam |
| 65 | 510004782 | Backrest Foam |
| 67 | 510004791 | Rear Seat Foam |
| 83 | 510005181 | Seat Cover |
| 89 | 510005309 | Backrest Cover |
| 101 | 510005009 | RH Air Deflector |
| 102 | 510005010 | LH Air Deflector |
| 103 | 510005814 | Reinforcement Handle |
| 104 | 510005036 | Switch Housing |
| 114 | 510005399 | Rear Seat Cover |
| 125 | 510005535 | Seat Base Ass'y |
| 128 | 510005538 | LH Arm, Black |
| 130 | 510005539 | RH Arm, Black |
| 133 | 510006708 | RH Handle Ass'y This part replaces 510005848. |
| 134 | 510006709 | LH Handle Ass'y This part replaces 510005847. |
| 151 | 515175283 | Housing Support |
| 153 | 515175494 | Male Housing, 3 Circuits |
| 155 | 219704426 | Was 515175506 Tubing |
| 160 | 515176033 | Male Connector |
| 170 | 515176697 | Handle Harness |
| 183 | 515176766 | Seat Harness |
| 188 | 515176999 | Heated Element |
| 197 | 516003816 | Heated Handle Decal |
| 198 | 516003937 | Connector Decal |
| 204 | 708000759 | Rubber Stopper |
