Home / BRP / STERN DRIVE / 1994 / 5.80 / 58FBDPMDA 1994 / TRANSOM MOUNT

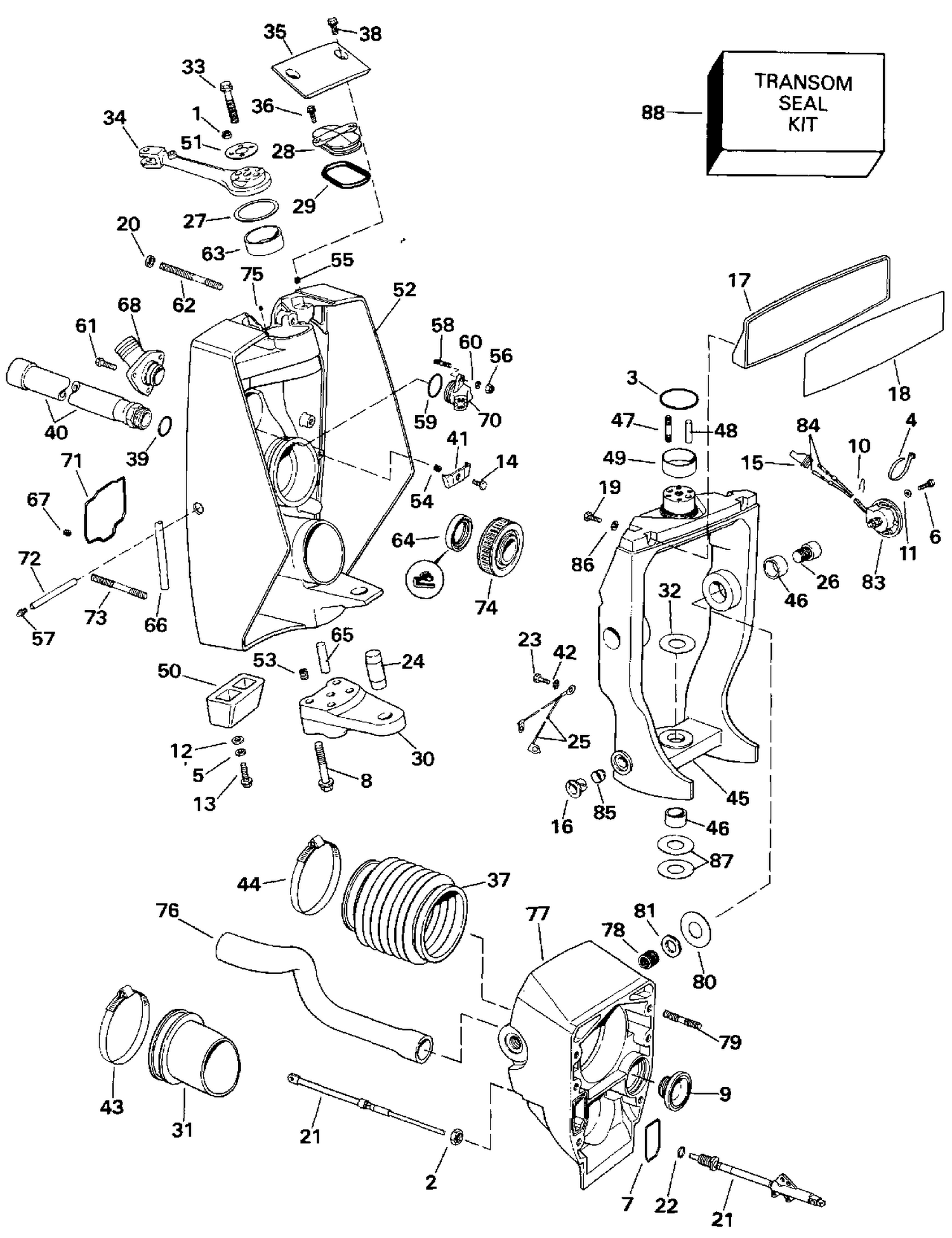

TRANSOM MOUNT

TRANSOM MOUNT

Parts (69)

RefPart NumberDescription
2 3852848 LOCKNUT, Shift cable
7 3852842 SEAL, Shift cable passage
8 3852957 SCREW, Support housing
9 3855041 BARB & SEAL, Water inlet This part replaces 3852843.
10 3852555 RETAINER, Plug
11 3853458 WASHER, Trim sender
13 0329055 SCREW, Anode This part replaces 3852192.
15 3853564 CONNECTOR
16 3853423 BUSHING, Pivot pin
17 3854735 BRACKET, Applique This part replaces 3852858.
18 3853334 APPLIQUE, Bracket
20 3852852 SEAL, Transom stud
21 3850874 SHIFT CABLE ASSY.
22 0912452 O-RING Shift cable This part replaces 3852598.
24 3852728 SHAFT, Steering pivot
26 3852854 PIVOT SCREW
27 3852554 THRUST WASHER, Steering arm
28 3850965 CAP & SEAL
29 3852841 SEAL, Cap
30 3852856 BRACKET, Steering support
31 3853466 BOOT, Exhaust
32 3852557 THRUST WASHER
33 3852591 SCREW, Steering arm
34 3852379 STEERING ARM This part replaces 3852849.
35 3853931 COVER & INSERT
36 3852473 SCREW, Cap to gimbal
37 3852857 BELLOWS, U-joint
38 3852568 SCREW, Cover
40 3856800 SLEEVE & CONNECTOR ASSY. This part replaces 3850694.
41 3852956 RETAINER, Oil line
42 0329241 RONDELLE This part replaces 3852193.
43 3852604 CLAMP, Exhaust
44 3852604 CLAMP, Exhaust
45 3854036 GIMBAL ASSY.
46 3852544 BEARING, Steering & tilt
47 3852588 STUD
48 3852545 DOWEL, Steering arm
49 3852571 SLEEVE, Gimbal
50 3853930 ANODE & INSERT ASSY.
51 3852585 PLATE, Steering arm
52 3854780 GIMBAL HOUSING ASSY. This part replaces 3850970.
53 3852541 INSERT, 7/16 -14
54 0910901 INSERT This part replaces 3852513.
55 3852567 INSERT
59 0322501 O-RING, Manifold block This part replaces 3852169.
60 0329241 RONDELLE This part replaces 3852193.
61 3852008 SCREW, Adapter
62 3852546 STUD, Transom, long
63 3852547 BEARING, Steering
64 3852548 SEAL, Driveshaft
65 3852549 PIN, Steering support
66 3852850 SEAL, Transom
67 3852953 INSERT, Exhaust pipe
68 3852844 BARB, Water outlet
70 3852847 MANIFOLD BLOCK
71 3852846 SEAL, Exhaust pipe
72 3852853 TUBE, Grease
73 3852576 STUD, Transom, short
74 3853807 BEARING ASSY., U-joint
75 3852526 INSERT
76 3852845 HOSE, Water inlet
77 3855042 PIVOT HOUSING ASSY. This part replaces 3850902.
78 3852698 INSERT, Pivot screw
79 3852551 STUD, Pivot to gear housing
80 3852558 WASHER, Gimbal to pivot hsg.
81 3852697 THRUST WASHER, Pivot screw
83 3853920 TRIM SENDER ASSY.
85 3853424 GROMMET, Pivot pin
87 3852557 THRUST WASHER
