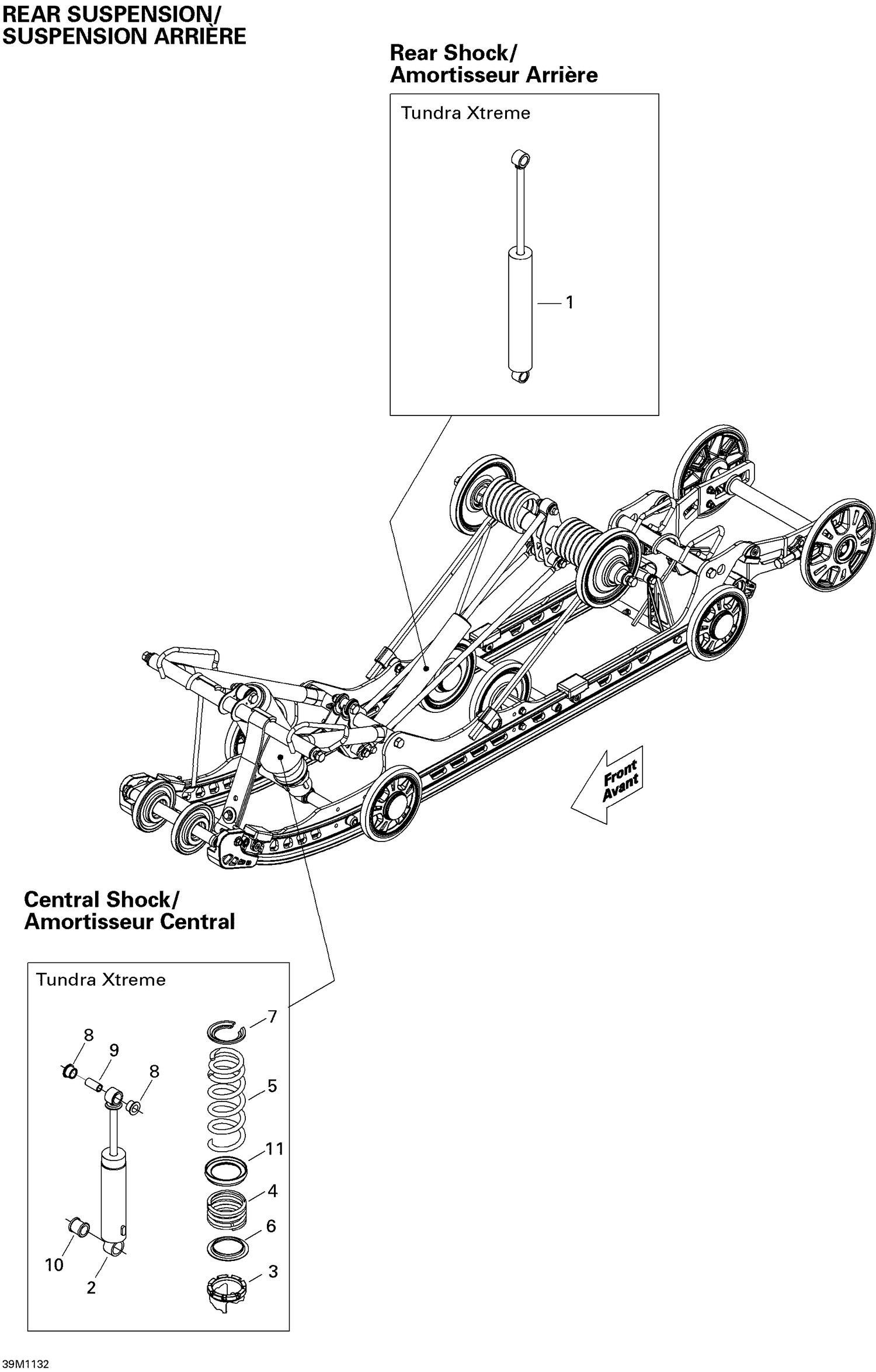

08- Rear Suspension Shocks
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503193192 | Rear Shock HPG SEAL This part replaces 503192639. |
| 2 | 503192991 | Center Shock This part replaces 503191593. |
| 3 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 4 | 503191343 | Black, Spring |
| 5 | 503192279 | Black, Spring |
| 6 | 503191872 | Spring Guide |
| 7 | 503194270 | Spring Stopper This part replaces 503192029. |
| 8 | 503189117 | Urethane Bushing |
| 9 | 503189282 | Bushing |
| 10 | 503189271 | Bushing |
