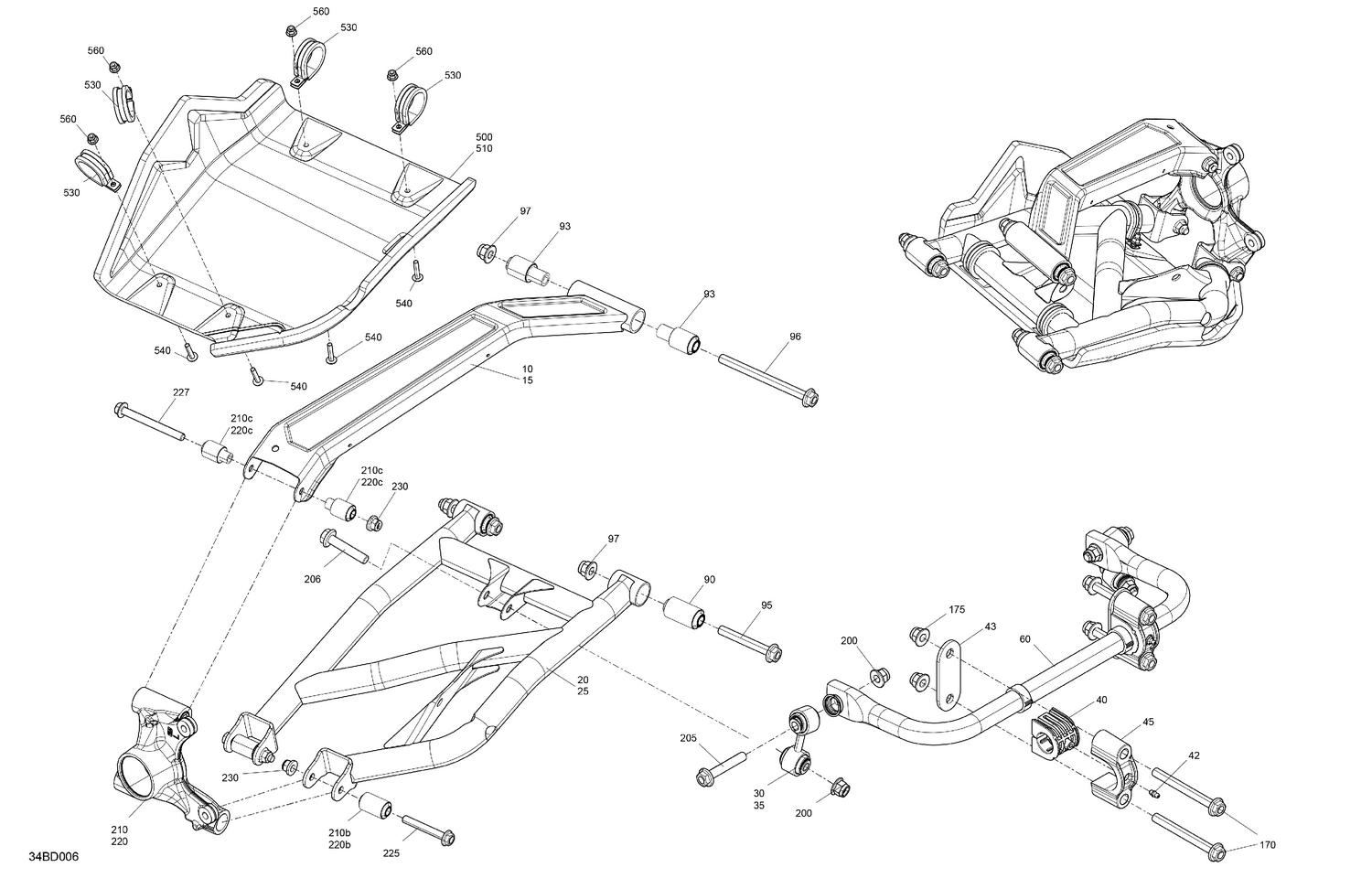

| Ref | Part Number | Description |
|---|
| 10 |
715010687 |
Legion Red, LH Upper Suspension Arm Ass'y With Bushing This part replaces 706005536. |
| 15 |
715010698 |
Legion Red, RH Upper Suspension Arm Ass'y With Bushing This part replaces 706005537. |
| 20 |
715010705 |
Deep Black, LH Interior Suspension Arm Ass'y With Bushing This part replaces 706005538. |
| 25 |
715010712 |
Deep Black, RH Lower Suspension Arm Ass'y With Bushing This part replaces 706005539. |
| 30 |
706003004 |
Sway Bar Double Link |
| 35 |
706003003 |
Sway Bar Double Link |
| 40 |
706004266 |
Stabilizer Bar Bushing |
| 42 |
408200700 |
Grease Fitting |
| 43 |
706002977 |
Plate Support |
| 45 |
706002970 |
Clamp |
| 60 |
706003475 |
Sway Bar Ass'y |
| 90 |
706004828 |
Suspension Arm Bushing |
| 93 |
706004829 |
Suspension Arm Bushing |
| 95 |
250001168 |
Hex. Flange Screw M12X1.75X85 |
| 96 |
250001167 |
Screw Hex Flange DIN.6921 M12X1.75X |
| 97 |
250001195 |
Elastic Flange Nut M12 |
| 170 |
250000860 |
Screw Flange M12 X 115 |
| 175 |
250001195 |
Elastic Flange Nut M12 |
| 200 |
250001195 |
Elastic Flange Nut M12 |
| 205 |
250000858 |
Hex. Flange Screw M12 X 70 |
| 206 |
250000857 |
Flange Screw M12 X 60 |
| 210b |
XXX |
Not Available As Spare Parts |
| 210c |
XXX |
Not Available As Spare Parts |
| 220b |
XXX |
Not Available As Spare Parts |
| 220c |
XXX |
Not Available As Spare Parts |
| 225 |
207507046 |
Hex. Screw M10 X 70, Scotch Grip |
| 227 |
230500046 |
Hex. Screw M10 X 100, Scotch Grip |
| 230 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 500 |
706003359 |
LH Rear Arm Protector |
| 510 |
706003360 |
RH Rear Arm Protector |
| 530 |
293850121 |
Open Clamp |
| 540 |
250000842 |
Stainless, Torx Screw M6 X 30 |
