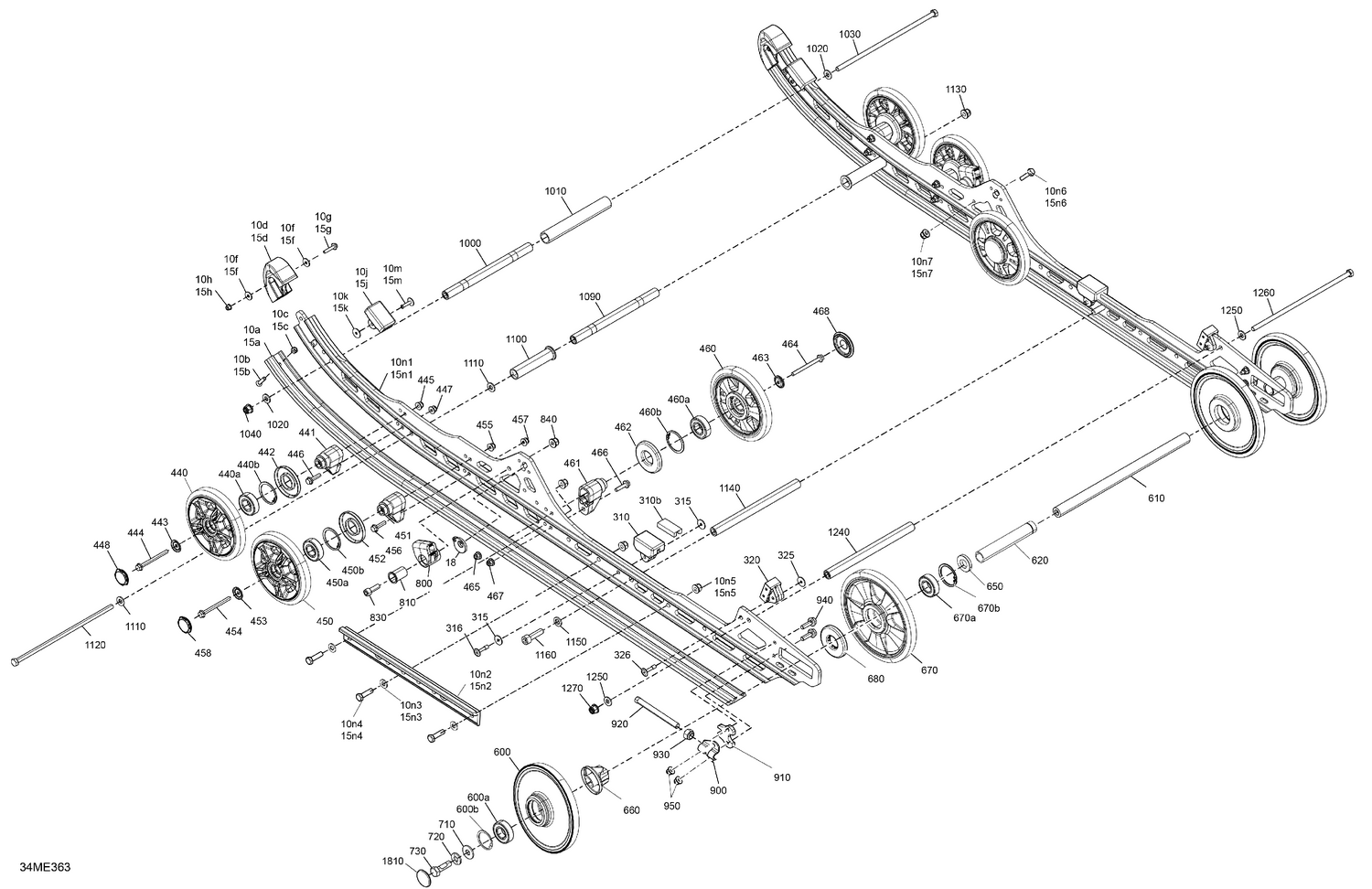

05- Suspension - Rear - Lower Section
Parts (110)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503196283 | Black, Slider Shoe 137'' |
| 10b | 208562531 | Phillips Screw M6 X 25 |
| 10c | 232561434 | Elastic Stop Nut M6 |
| 10d | 503196873 | Rail Protector |
| 10f | 250200140 | Washer |
| 10g | 207652544 | Hex. Flange Screw M5 X 25 |
| 10h | 233251434 | Flange Elastic Nut M5 |
| 10j | 503190576 | Rubber Stopper |
| 10k | 503191273 | Washer |
| 10m | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 10n1 | 503196748 | Neo Yellow, Rail Suspension 137 |
| 10n2 | 503196477 | Deep Black, LH Rail Reinforcement |
| 10n3 | 503192494 | Washer |
| 10n4 | 207183054 | Hex. Cap Screw M8 X 30 |
| 10n5 | 233281466 | Elastic Flange Nut M8 |
| 10n6 | 250000945 | Hex. Flange Screw M6 X 25 |
| 10n7 | 233261466 | Hex. Flange Elastic Nut M6 |
| 15a | 503196283 | Black, Slider Shoe 137'' |
| 15b | 208562531 | Phillips Screw M6 X 25 |
| 15c | 232561434 | Elastic Stop Nut M6 |
| 15d | 503196873 | Rail Protector |
| 15f | 250200140 | Washer |
| 15g | 207652544 | Hex. Flange Screw M5 X 25 |
| 15h | 233251434 | Flange Elastic Nut M5 |
| 15j | 503190576 | Rubber Stopper |
| 15k | 503191273 | Washer |
| 15m | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 15n1 | 503196748 | Neo Yellow, Rail Suspension 137 |
| 15n2 | 503196478 | Deep Black, RH Rail Reinforcement |
| 15n3 | 503192494 | Washer |
| 15n4 | 207183054 | Hex. Cap Screw M8 X 30 |
| 15n5 | 233281466 | Elastic Flange Nut M8 |
| 15n6 | 250000945 | Hex. Flange Screw M6 X 25 |
| 15n7 | 233261466 | Hex. Flange Elastic Nut M6 |
| 18 | 503196016 | Adjustment Cam |
| 310b | 503195523 | Rubber Stopper Ass'y |
| 315 | 503191273 | Washer |
| 316 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 320 | 503192750 | Rubber Stopper |
| 325 | 503191273 | Washer |
| 326 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 440a | 503190396 | Ball Bearing |
| 440b | 415129371 | Retaining Ring |
| 441 | 503193894 | Casted Support |
| 442 | 503190434 | Labyrinth Seal |
| 443 | 503191820 | Wheel Cup M6 |
| 444 | 250000944 | Hex. Flange Screw M6 X 70 |
| 445 | 233261466 | Hex. Flange Elastic Nut M6 |
| 446 | 250000945 | Hex. Flange Screw M6 X 25 |
| 447 | 233261466 | Hex. Flange Elastic Nut M6 |
| 448 | 503195804 | Wheel Cap |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 451 | 503193894 | Casted Support |
| 452 | 503190434 | Labyrinth Seal |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flange Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flange Elastic Nut M6 |
| 458 | 503195804 | Wheel Cap |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 461 | 503193894 | Casted Support |
| 462 | 503190434 | Labyrinth Seal |
| 463 | 503191820 | Wheel Cup M6 |
| 464 | 250000944 | Hex. Flange Screw M6 X 70 |
| 465 | 233261466 | Hex. Flange Elastic Nut M6 |
| 466 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 467 | 233261466 | Hex. Flange Elastic Nut M6 |
| 468 | 503195804 | Wheel Cap |
| 600a | 503190396 | Ball Bearing |
| 600b | 415129371 | Retaining Ring |
| 610 | 503190429 | Rear Axle |
| 620 | 503196317 | Spacer |
| 650 | 503190432 | Washer |
| 660 | 503196753 | Rear Wheel Support |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 680 | 503190682 | Labyrinth Seal |
| 710 | 503191910 | Washer |
| 720 | 234201474 | Conical Spring Washer 10 mm |
| 730 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 800 | 861805547 | Spring Support Kit |
| 810 | 503196210 | Bushing |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503192583 | Tensioner |
| 910 | 503193250 | Spacer |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207063054 | Hex. Cap Screw M6 X 30 |
| 950 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1000 | 503196930 | Axle Stopper Strap |
| 1010 | 503196943 | Spacer |
| 1020 | 503192494 | Washer |
| 1030 | 503192440 | Bolt M8 X 248mm |
| 1040 | 233281466 | Elastic Flange Nut M8 |
| 1090 | 503195954 | Pivot Axle |
| 1100 | 503195825 | Spacer |
| 1110 | 503192494 | Washer |
| 1120 | 503192440 | Bolt M8 X 248mm |
| 1130 | 233281466 | Elastic Flange Nut M8 |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1240 | 503196930 | Axle Stopper Strap |
| 1250 | 503192494 | Washer |
| 1260 | 503192440 | Bolt M8 X 248mm |
| 1270 | 233281466 | Elastic Flange Nut M8 |
