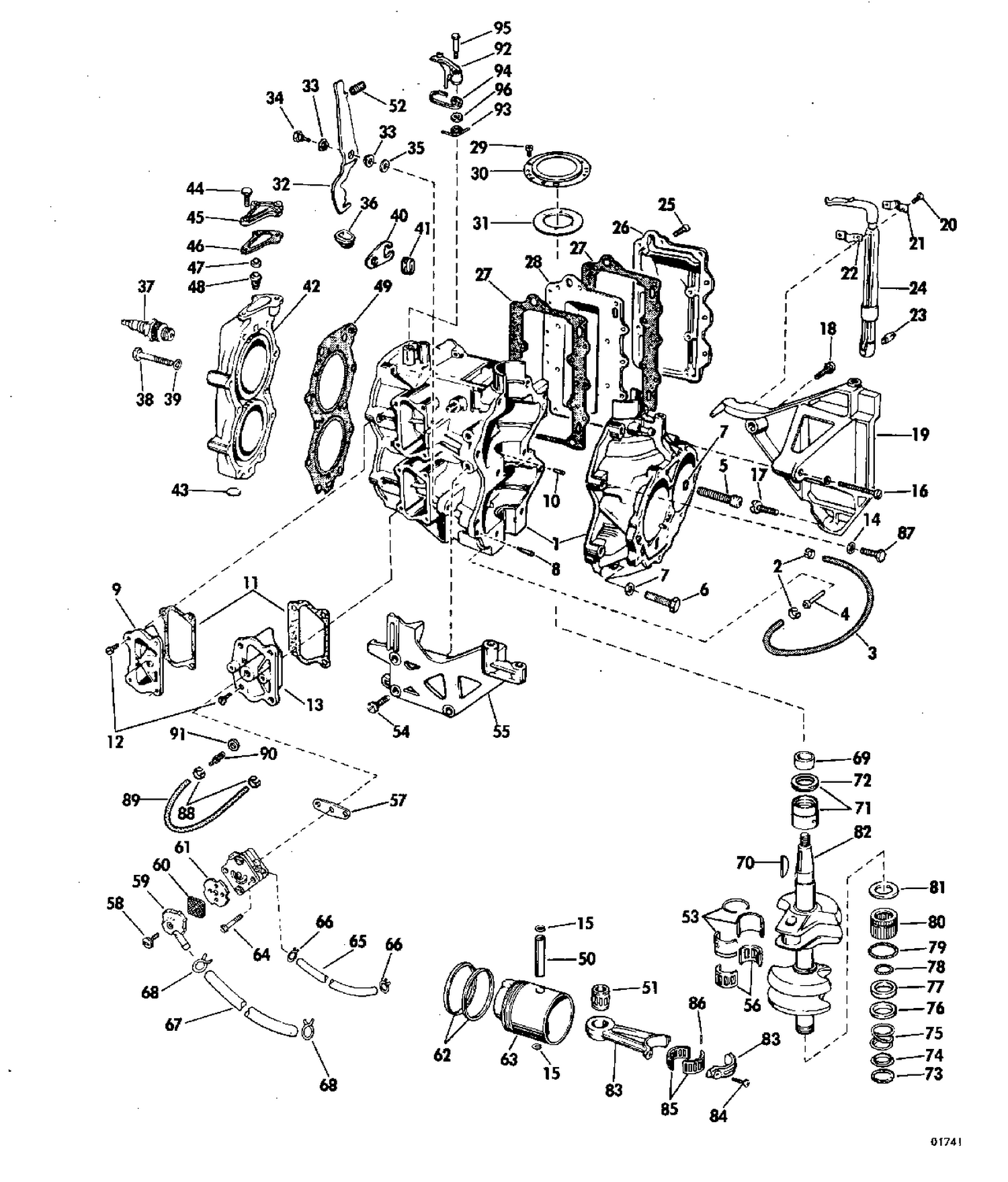

| Ref | Part Number | Description |
|---|
| 1 |
0384171 |
CYLINDER & CRANKCASE ASSEMBLY |
| 2 |
0303473 |
CLAMP, Hose |
| 3 |
0308506 |
HOSE, Oil line |
| 5 |
0203249 |
SCREW, Crankcase, center |
| 6 |
0306435 |
SCREW, Brace to alternator |
| 7 |
0306371 |
WASHER |
| 9 |
0314816 |
BY PASS COVER, Upper |
| 11 |
0314818 |
GASKET, By -pass cover |
| 12 |
0306487 |
SCREW |
| 13 |
0314817 |
BY PASS COVER, Lower |
| 14 |
0306371 |
WASHER |
| 15 |
0302577 |
RETAINING RING |
| 16 |
0312189 |
SCREW, Manfold to crankcase |
| 17 |
0551793 |
SCREW |
| 18 |
0303699 |
SCREW |
| 19 |
0308361 |
BRACKER, Port |
| 20 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 21 |
0305609 |
BEARING CLAMP |
| 22 |
0303109 |
BEARING CLAMP, INNER |
| 23 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 24 |
0385509 |
CONTROL LEVER This part replaces 0203805. |
| 25 |
0314979 |
SCREW, Cylinder to c'case |
| 26 |
0316164 |
COVER, Exhaust outer |
| 27 |
0316162 |
GASKET, Exaust cover |
| 28 |
0316163 |
COVER, Exhaust inner |
| 29 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 30 |
0303278 |
SUPORT, Armature plate |
| 31 |
0303277 |
RETAINING RING |
| 32 |
0384706 |
SHIFTER LOCK, Bushing & screw assy |
| 33 |
0325542 |
BUSHING This part replaces 0316603. |
| 34 |
0322781 |
SCREW, Lockout lever boss This part replaces 0316605. |
| 36 |
0306222 |
GROMMET |
| 37 |
0378101 |
SPARK PLUB, Champion j4j |
| 37 |
0378320 |
SPARK PLUG, AC - M42K |
| 38 |
0306424 |
BOLT, Pump mounting |
| 39 |
0308419 |
WASHER |
| 40 |
3064763 |
ANCHOR, Leads |
| 41 |
0300454 |
GROMMER, Ignition lead |
| 42 |
0383535 |
CYLINDER HEAD ASSEMBLEY |
| 44 |
0300646 |
VIS, ancrage |
| 45 |
0308327 |
CAP HOUSING |
| 46 |
0308328 |
GASKET, Cap |
| 47 |
0310058 |
GASKET, Thermostat |
| 48 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 49 |
0306163 |
GASKET, Cylinder head |
| 50 |
0304691 |
WRIST PIN |
| 51 |
0378251 |
BEARING SET, Needle, wrist pin |
| 52 |
0302587 |
SPRING, Shifter lock |
| 53 |
0309010 |
SLEEVE, Split, center bearing |
| 54 |
0303699 |
SCREW |
| 55 |
0312009 |
BRACKET, Starboard |
| 56 |
0378838 |
REATINER & NEEDLES, Center bearing |
| 57 |
0303615 |
GASKET |
| 62 |
0383473 |
FLOAT ASSY |
| 62 |
0384358 |
PISTON RING SET, .030 O.S. |
| 63 |
0385339 |
PISTIN,Standard This part replaces 0383524. |
| 63 |
0385340 |
PISTON, .030 O.S. This part replaces 0384370. |
| 64 |
0309654 |
SCREW |
| 65 |
0203909 |
HOSE, Oil return This part replaces 0303111. |
| 66 |
0302647 |
CLAMP |
| 67 |
0303617 |
HOSE This part replaces 0305699. |
| 69 |
0316583 |
CAM, Magneto |
| 70 |
0120395 |
KEY |
| 71 |
0377528 |
ROLLER BEARING & SEAL ASSEMBLY, Upper |
| 72 |
0305987 |
SEAL |
| 73 |
0302536 |
RETAING RING |
| 74 |
0303801 |
WAHSER, Lower |
| 75 |
0302539 |
SPRING |
| 76 |
0302594 |
CLAMP |
| 77 |
0302538 |
CARBON SEAL |
| 80 |
0375763 |
BEARING, Roller, lower |
| 81 |
0304732 |
THRUST WASHER |
| 82 |
0383182 |
CRANKSHAFT |
| 83 |
0383462 |
CONNECTING ROD ASSEMBLY |
| 84 |
0202967 |
SCREW |
| 85 |
0383727 |
RETAINER SET |
| 86 |
0383724 |
NEEDLE SET |
| 87 |
0306435 |
SCREW, Brace to alternator |
| 88 |
0303473 |
CLAMP, Hose |
| 89 |
0308506 |
HOSE, Oil line |
| 90 |
0315230 |
NIPLE, By-pass cover |
| 92 |
0315760 |
LOCKOUT LEVER |
| 93 |
0315763 |
RETURN SPRING, Lever |
| 94 |
0315764 |
GUIDE SPRING, Lever |
| 95 |
0321995 |
SHOULDER SCREW This part replaces 0315725. |
| 96 |
0315770 |
WASHER, Electrical bracket |
| 0382875 |
0388685 |
FUEL PUMP ASSY This part replaces 0382875. |
