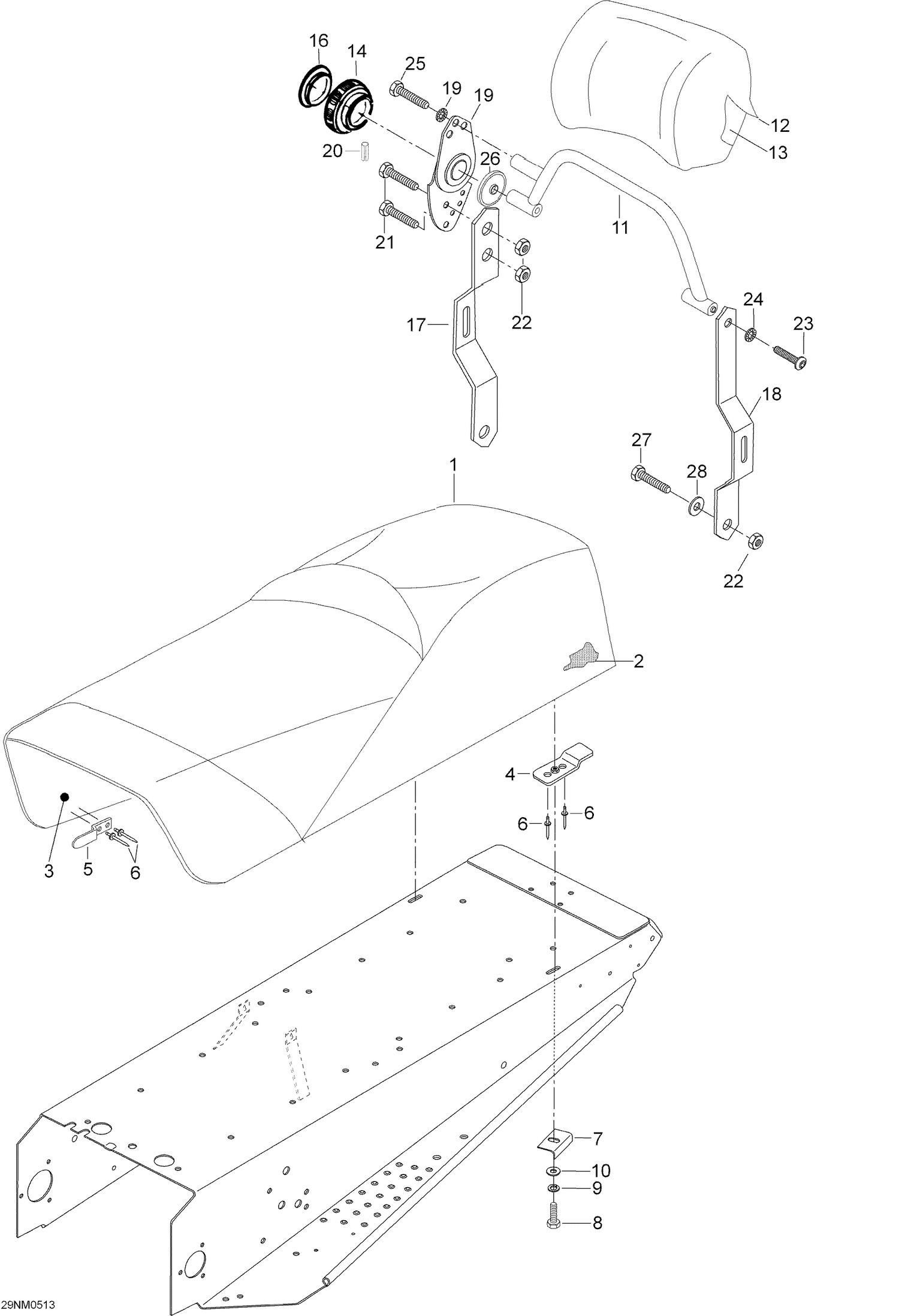

| Ref | Part Number | Description |
|---|
| 1 |
605148618 |
Seat cover |
| 2 |
5146604 |
Seat foam |
| 3 |
5146603 |
Seat base |
| 4 |
5447928 |
Bracket |
| 5 |
5447909 |
Bracket |
| 6 |
Not |
Available As Spare Part - Rivet |
| 7 |
5447994 |
Support plate |
| 8 |
40015 |
SELF TAPPING SCREW M8X30 - Call your local BRP dealership |
| 9 |
20014 |
Lock washer A8 |
| 10 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 11 |
5342906 |
Backrest |
| 12 |
605350592 |
Backrest cover |
| 13 |
5343163 |
Backrest foam |
| 14 |
414820900 |
TILLER HANDLE - Call your local BRP dealership |
| 16 |
414821000 |
Cap |
| 17 |
5342974 |
R.H. Arm |
| 18 |
5342975 |
L.H. Arm |
| 19 |
414813300 |
Recliner |
| 20 |
41007 |
Spring Pin 5 x 24 DIN 1481(1=10pcs) - Call your local BRP dealership |
| 21 |
40037 |
Hex. screw M8 x 25 |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 23 |
205982086 |
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership This part replaces 40351. |
| 24 |
20072 |
Lock washer |
| 25 |
40036 |
Hex. screw M8 x 20 |
| 26 |
5342954 |
Sleeve |
| 27 |
40855 |
Locking screw M8 x 25 |
