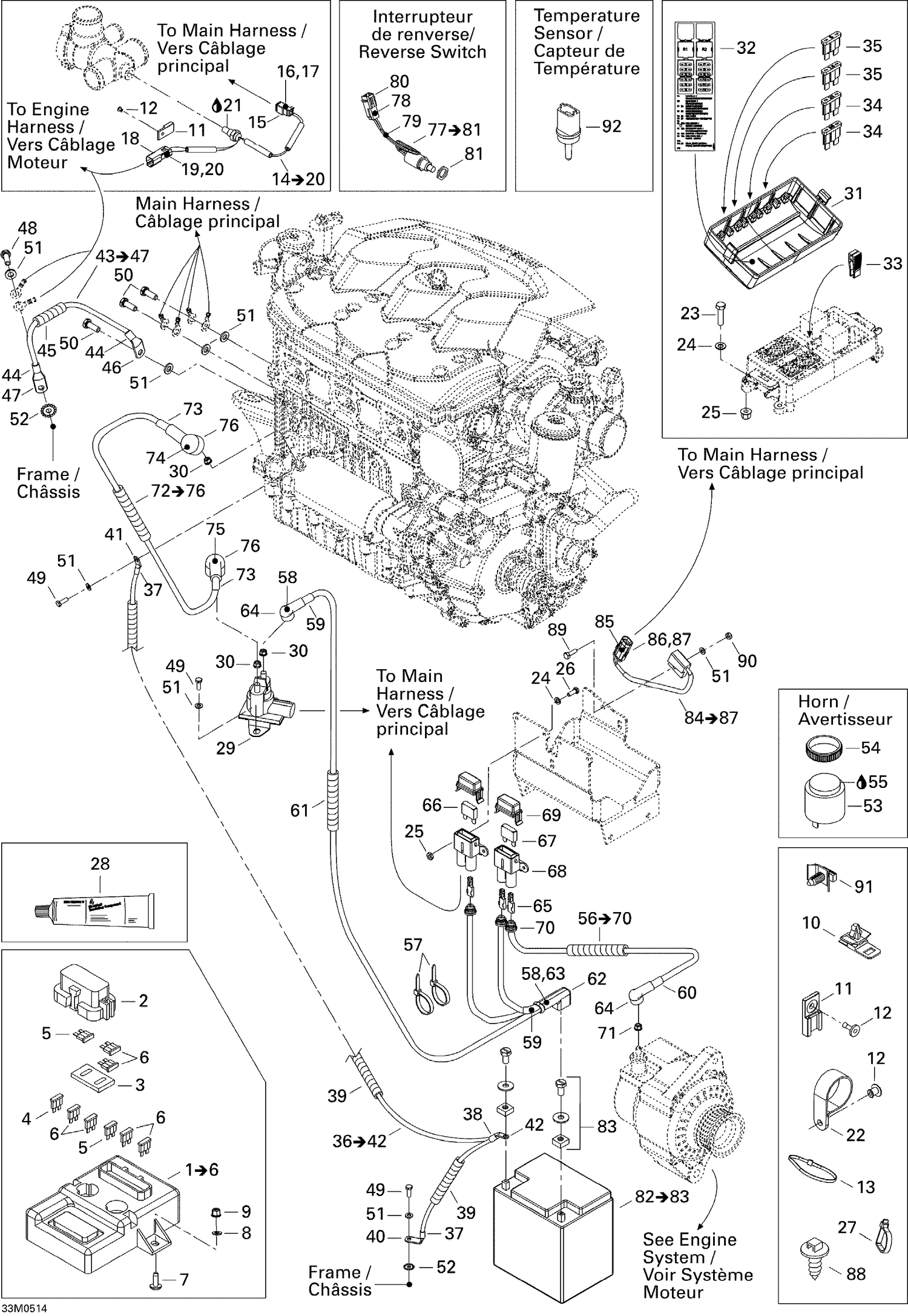

| Ref | Part Number | Description |
|---|
| 2 |
278002102 |
FUSE COVER - Call your local BRP dealership This part replaces 278001618. |
| 3 |
278001719 |
COVER BUSHING - Call your local BRP dealership |
| 4 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 5 |
278000344 |
Fuse, 5 Amperes |
| 6 |
278001197 |
Fuse, 10 Amperes |
| 7 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 8 |
234061410 |
Flat Washer 6 mm |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 10 |
515175283 |
Housing Support |
| 11 |
270000141 |
Clip |
| 12 |
390402200 |
Pop Rivet 3/16" |
| 13 |
293750008 |
Tie Wrap 368 mm |
| 15 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 16 |
278000632 |
Female Terminal |
| 17 |
515175675 |
Female Lock, 2 Circuits |
| 18 |
515175665 |
Male Terminal Housing, 2 Circuits |
| 19 |
278000631 |
Male Terminal |
| 20 |
409207500 |
Male Lock, 2 Circuits |
| 21 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 22 |
515176113 |
Cable Clamp |
| 22 |
515176154 |
Cable Clamp |
| 22 |
515176174 |
Cable Clamp |
| 23 |
207152544 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 24 |
234051410 |
Flat Washer M5 |
| 25 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 26 |
207151644 |
Hex. Screw M5 X 16 |
| 27 |
414115200 |
Tie-Rap 180 mm |
| 28 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 29 |
278003012 |
Starter Relay This part replaces 278001802. |
| 30 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 31 |
515176066 |
COVER - Call your local BRP dealership |
| 32 |
516002727 |
Fuse Decal |
| 33 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 34 |
278001197 |
Fuse, 10 Amperes |
| 35 |
409003900 |
Fuse, 20 Amperes |
| 37 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 38 |
275500578 |
Shrink Tubing |
| 39 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 40 |
710000508 |
Open Barrel |
| 41 |
710000540 |
Open Barrel |
| 42 |
710000539 |
Open Barrel |
| 44 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 45 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 46 |
710000507 |
Flat Open Baril |
| 47 |
710000515 |
Flat Terminal |
| 48 |
207362044 |
Hex. Screw M6 X 20, Scotch Grip |
| 49 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 50 |
207361260 |
Hex. Screw M6 X 12, Scotch Grip |
| 51 |
234061410 |
Flat Washer 6 mm |
| 52 |
250200041 |
Lock Washer Serrated M6 |
| 53 |
515176035 |
HORN - Call your local BRP dealership |
| 54 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 55 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 57 |
293750001 |
Tie Wrap 94 mm |
| 58 |
710000479 |
Flat Open Barel 6.6 mm |
| 59 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 60 |
512059668 |
Heat Shrink Tubing 25 mm |
| 61 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 62 |
710001829 |
Protector Cap This part replaces 710000516. |
| 63 |
710000518 |
Open Barrel |
| 64 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 65 |
515176106 |
Female Terminal |
| 66 |
515176107 |
Fuse 50 Amperes |
| 67 |
515176108 |
Fuse 60 Amperes |
| 68 |
515176105 |
Fuse Holder |
| 69 |
515176109 |
Fuse Cover |
| 70 |
515176110 |
Wire Seal |
| 71 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 73 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 74 |
710000507 |
Flat Open Baril |
| 75 |
710000515 |
Flat Terminal |
| 76 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 78 |
515175232 |
Male Terminal |
| 79 |
293740005 |
Tape |
| 80 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 81 |
250100012 |
BRASS NUT - Call your local BRP dealership |
| 83 |
515176081 |
Battery Bolt Kit |
| 85 |
278000217 |
Female Housing, 2 Circuits |
| 86 |
Not |
Available As Spare Part - Female Terminal |
| 87 |
278000218 |
Wire Seal |
| 88 |
293730040 |
Mount Dart This part replaces 293730018. |
| 89 |
207162544 |
Hex. Screw M6 X 25 |
| 90 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 91 |
278001775 |
Self-Locking Clip |
