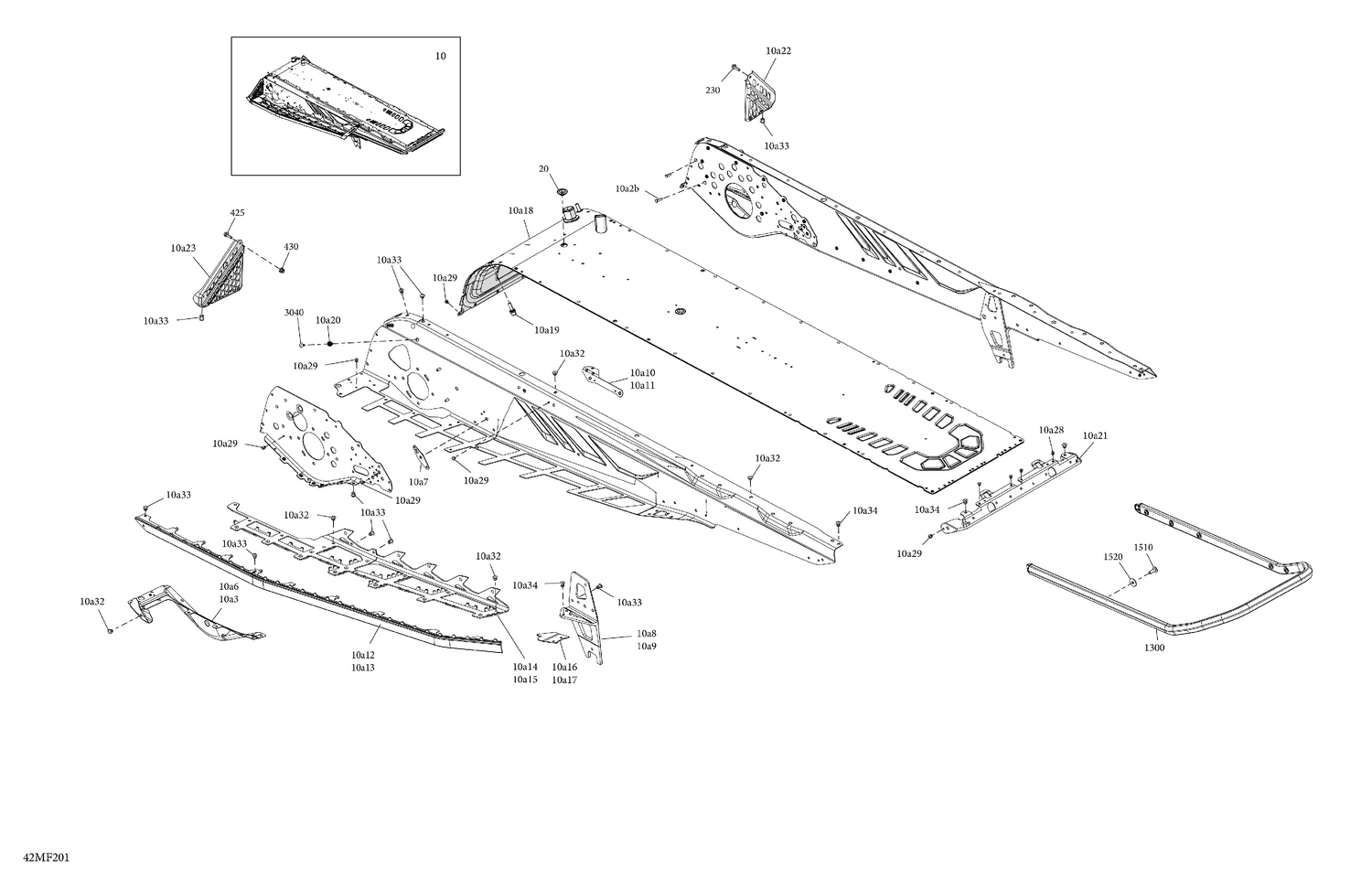

06- Frame - System - Rear Section
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 415131066 | Deep Black, Chassis Tunnel Moduel 146 |
| 10a10 | 518330299 | LH Member Fixation Plate |
| 10a11 | 518331745 | RH Under Chassis Reinforcement |
| 10a12 | 518332841 | Formed Boarding Step Rg |
| 10a13 | 518332842 | Formed Boarding Step |
| 10a14 | 518335261 | RH Tunnel Liner |
| 10a15 | 518335262 | LH Tunnel Liner |
| 10a16 | 518333048 | LH Rear Footrest Reinforcement |
| 10a17 | 518333049 | RH Rear Footrest Reinforcement |
| 10a18 | 518335139 | Radiator Tunnel 146 |
| 10a19 | 250300652 | Protruding Stud M8 x 22 |
| 10a20 | 605636003 | Clinch Nut M6 Hexsert |
| 10a21 | 518328990 | Rear Cap |
| 10a22 | 518332462 | RH Footrest |
| 10a23 | 518332463 | LH Footrest |
| 10a28 | 390909100 | Avex Rivet |
| 10a29 | 390909200 | Avex Rivet |
| 10a2b | 250300027 | Clinch Stud M6 X 20 |
| 10a3 | 518332455 | RH Footrest Reinforcement |
| 10a32 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10a33 | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10a34 | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10a6 | 518332456 | LH Footrest Reinforcement |
| 10a7 | 518335959 | Front Suspension Arm Reinforcement |
| 10a8 | 518336861 | LH Rear Suspension Support |
| 10a9 | 518336862 | RH Rear Suspension Support |
| 20 | 293730052 | Black, Plug |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1300 | 518329553 | Rear Bumper 146 |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 3040 | 293730079 | Dart |
