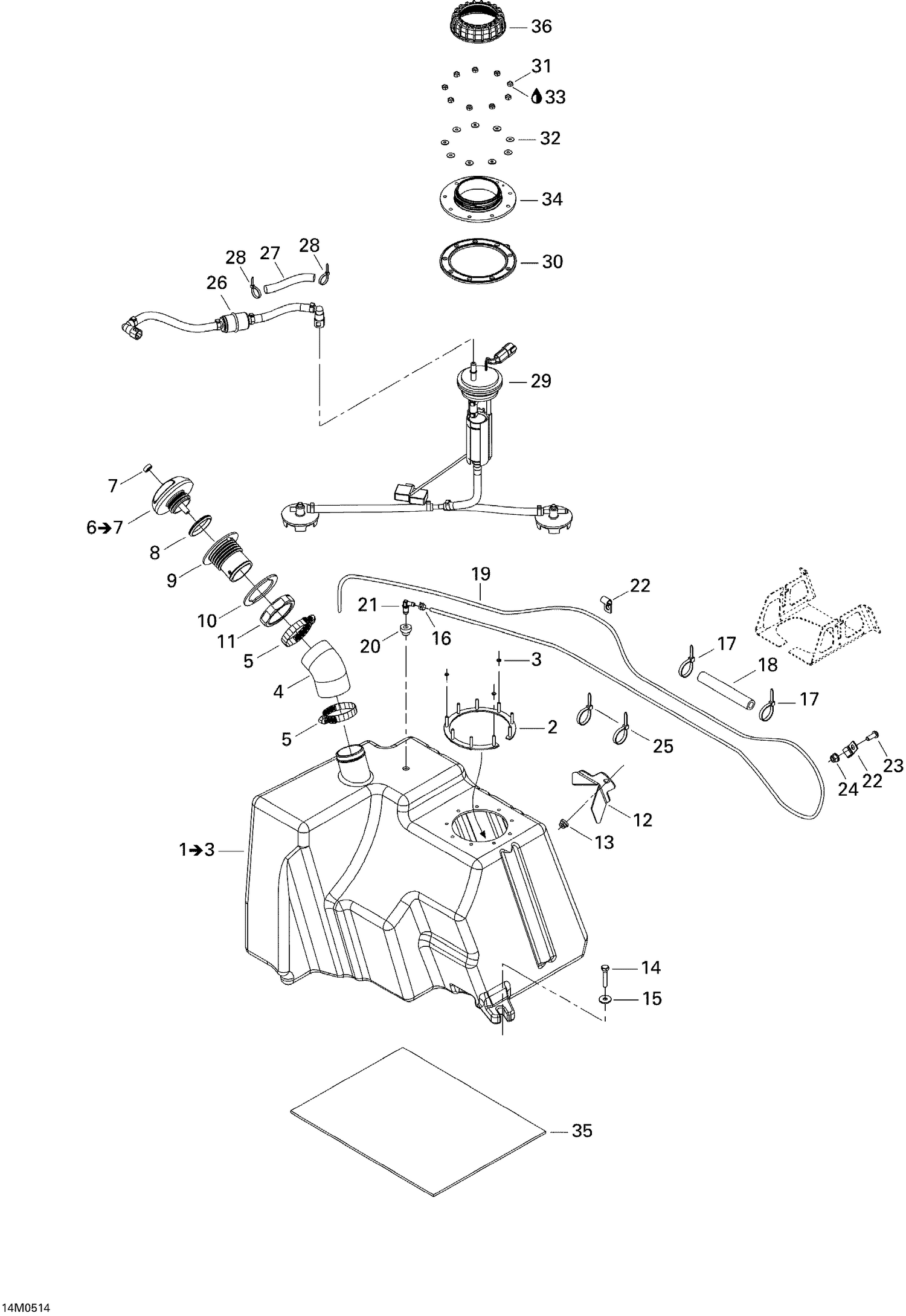

02- Fuel System
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033051 | Fuel Tank |
| 2 | 275500679 | C-Ring, 9 Studs This part replaces 275500616. |
| 3 | 389804300 | Push Nut |
| 4 | 513033052 | Hose Filler Neck, Fuel |
| 5 | 293650023 | Tridon Clamp |
| 7 | 293000034 | Black, Snap Cap |
| 8 | 293250211 | GASKET - Call your local BRP dealership This part replaces 293250075. |
| 9 | 275500231 | Filler Neck, Fuel |
| 10 | 293250029 | Gasket |
| 11 | 211100012 | Filler Neck Nut, Fuel |
| 12 | 513033113 | Tank Support, Fuel |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 207083544 | Hex. Screw M8 X 35 |
| 15 | 234082410 | Flat Washer 8 mm |
| 16 | 414554800 | Spring Clamp |
| 17 | 414115200 | Tie-Rap 180 mm |
| 18 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 19 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 20 | 513032908 | Grommet |
| 21 | 414580700 | Male Connector |
| 22 | 414176000 | Open Clamp |
| 23 | 250000172 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 414115200 | Tie-Rap 180 mm |
| 26 | 513033116 | Fuel Filter Ass'y |
| 27 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 28 | 293750002 | Tie Wrap 142 mm |
| 29 | 513033132 | Fuel Pump Module |
| 30 | 293250088 | Gasket |
| 31 | 250100071 | Hex. Flange Nut M5 |
| 32 | 291001956 | Rubber Washer |
| 33 | 293800060 | Loctite 243, 10 ml |
| 34 | 513033114 | Adapter |
| 35 | 293830104 | Rubber Pad, Fuel |
