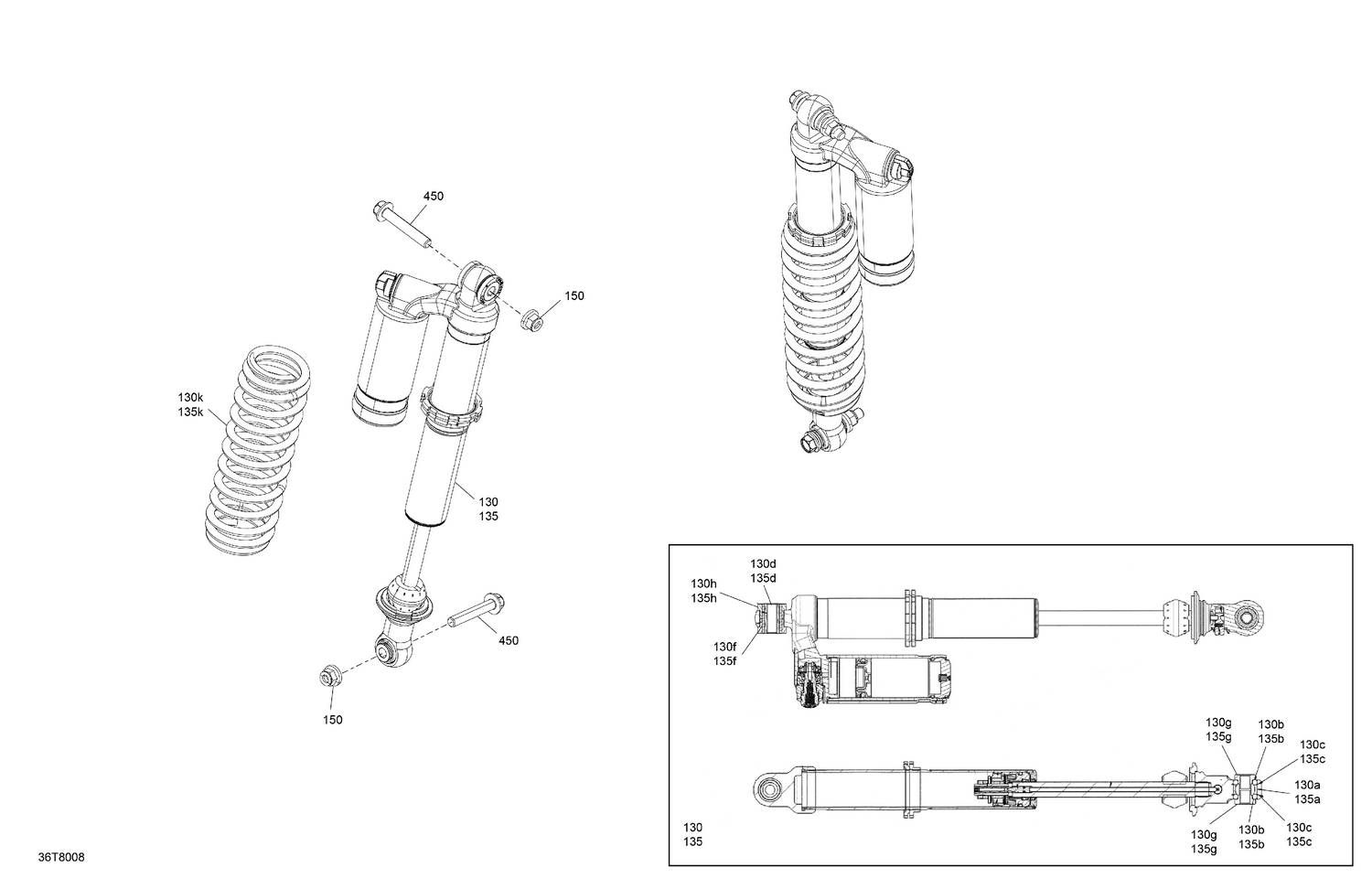

05- Suspension - Rear Shocks
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 715900251 | Spherical Bearing |
| 130b | 715900209 | O-Ring Bushing |
| 130c | 715900252 | Retaining Ring |
| 130d | 706201586 | Bushing Sleeve |
| 130f | 706201585 | Bushing Sleeve |
| 130g | 715900210 | Interior Bushing |
| 130h | 706201648 | Bushing |
| 130k | 706002581 | JOUSI_PURISTUSVAIMENNUS B-101A MAALATTU - Call your local BRP dealership |
| 135a | 715900251 | Spherical Bearing |
| 135b | 715900209 | O-Ring Bushing |
| 135c | 715900252 | Retaining Ring |
| 135d | 706201586 | Bushing Sleeve |
| 135f | 706201585 | Bushing Sleeve |
| 135g | 715900210 | Interior Bushing |
| 135h | 706201648 | Bushing |
| 135k | 706002581 | JOUSI_PURISTUSVAIMENNUS B-101A MAALATTU - Call your local BRP dealership |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
