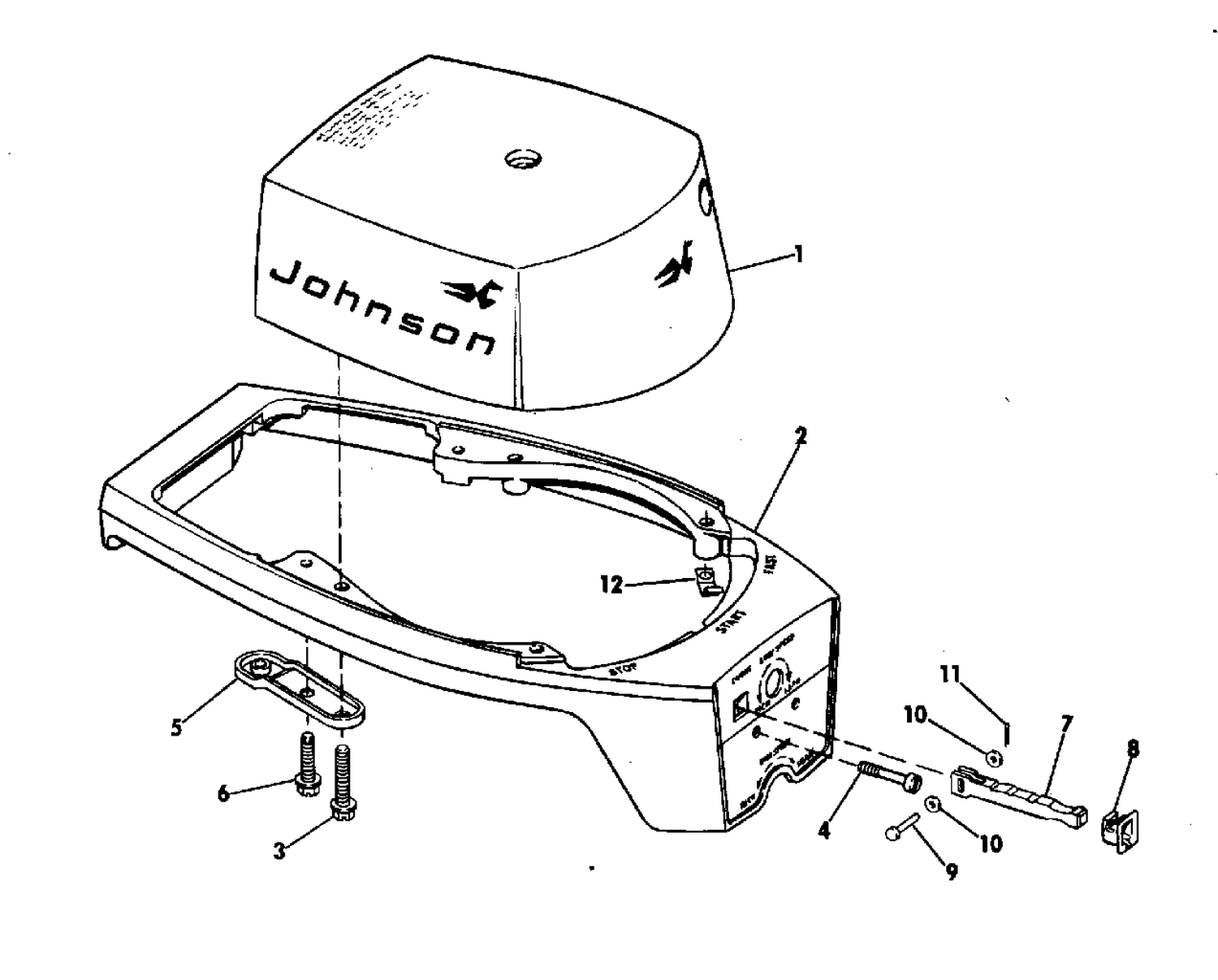

MOTOR COVER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0384451 | HOUSING & PIN |
| 2 | 0384503 | MOUNTING BRACKET |
| 3 | 0316450 | SCREW, Adaptor, lower |
| 4 | 0313803 | SCREW, Bracket to carburetor |
| 5 | 0316449 | SUPPORT, Bracket to head |
| 6 | 0316497 | SCREW, Bracket to head |
| 7 | 0314147 | CHOKE KNOB |
| 8 | 0312890 | DETENT CHIKE KNOB |
| 9 | 0315258 | HINGE PIN |
| 10 | 0306544 | WASHER |
| 11 | 0301912 | COTER PIN |
| 12 | 0317019 | SPRING, Throttle detent |
| 0384787 | 0384787 | DECAL SET |
