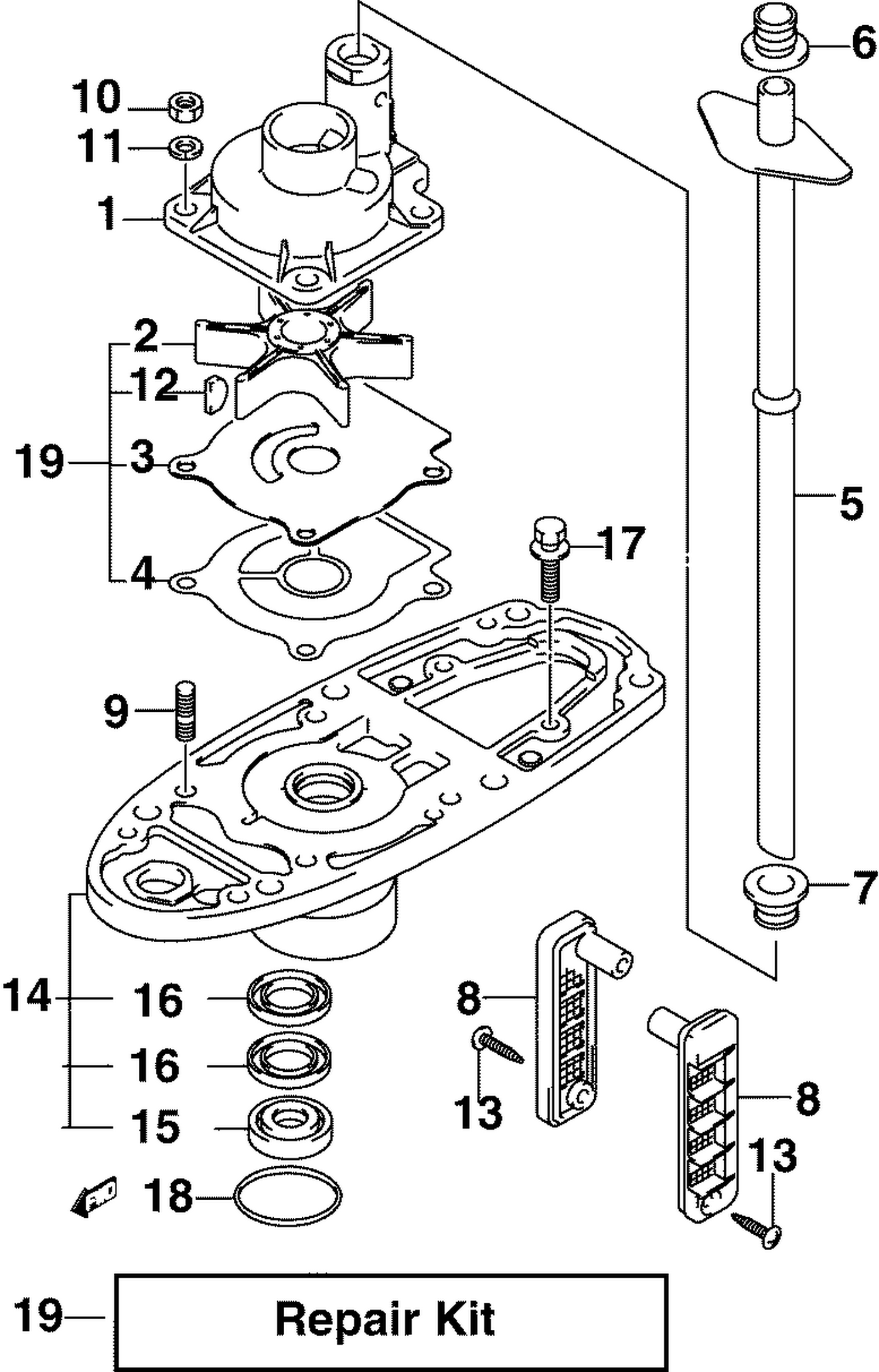

WATER PUMP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5031990 | CASE, WATER PUMP |
| 2 | 5031417 | IMPELLER ASSY |
| 3 | 5031418 | PANEL, PUMP CASE UNDER |
| 4 | 5036681 | GASKET, Plate |
| 5 | 5031991 | TUBE, Water |
| 6 | 5032223 | GROMMET, WATER TUBE |
| 7 | 5032224 | GROMMET, WATER TUBE LOWER |
| 8 | 5031428 | FILTER, WATER |
| 9 | 5030032 | BOLT, STUD |
| 12 | 5031281 | KEY |
| 13 | 5032284 | SCREW |
| 14 | 5034671 | HOUSING, DRIVE SFT BRG (WHITE) |
| 18 | 5031888 | O RING (D:3.6 ID:43.2) |
