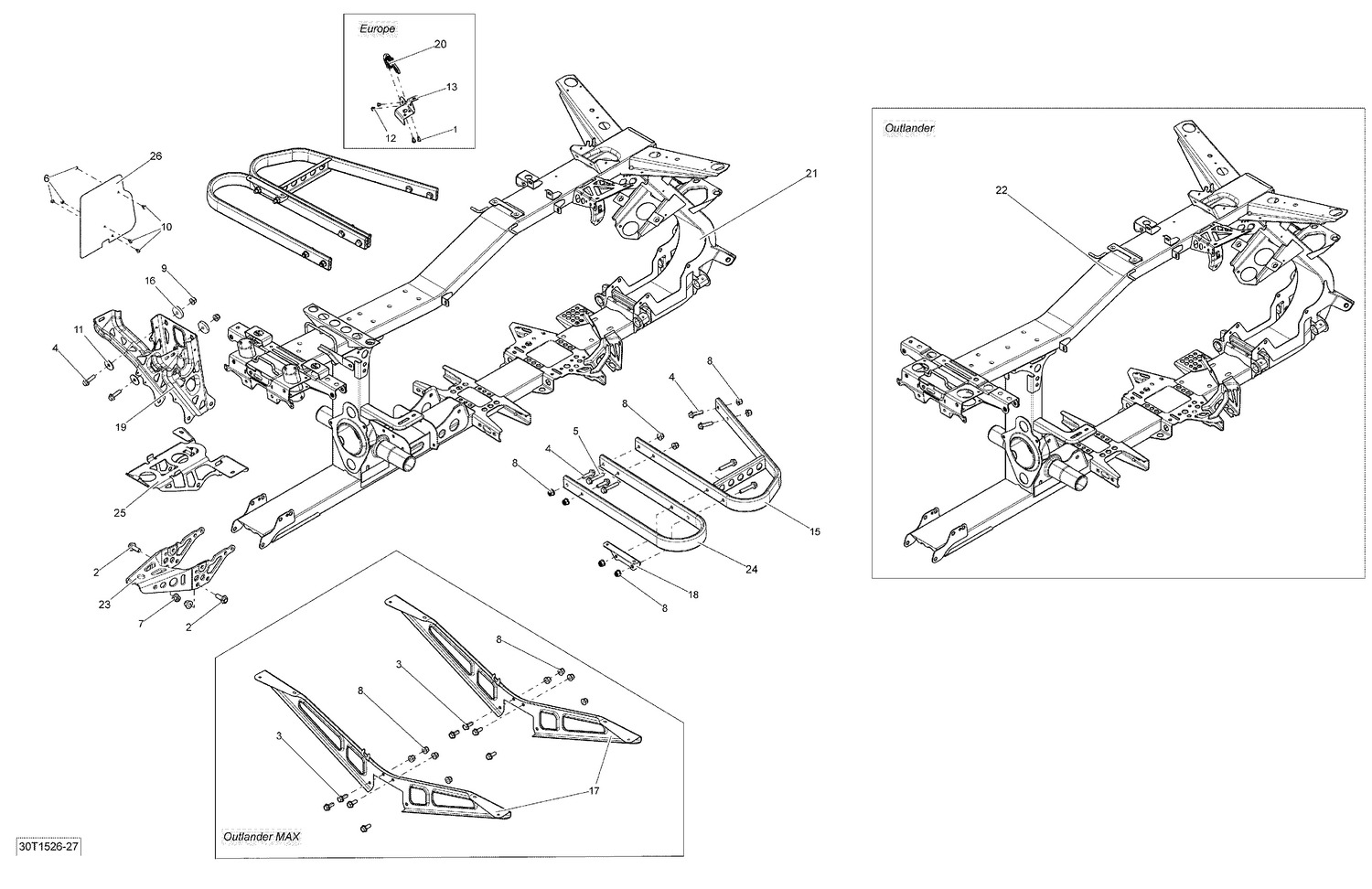

| Ref | Part Number | Description |
|---|
| 1 |
XXX |
Not Available As Spare Parts |
| 2 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 4 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 5 |
207684544 |
Hex. Flange Screw M8 X 45 |
| 6 |
232541484 |
Elastic Stop Nut M4 |
| 7 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 8 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 9 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 10 |
250000127 |
Torx Screw M4 X 8 |
| 11 |
250200073 |
FLAT WASHER - Call your local BRP dealership |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
XXX |
Not Available As Spare Parts |
| 15 |
705202081 |
OOTBOARD ASS'Y - Call your local BRP dealership |
| 16 |
705202084 |
SPACER - Call your local BRP dealership |
| 18 |
705202402 |
SUPPORT PLATE, BLACK - Call your local BRP dealership |
| 19 |
705203842 |
Rear Support, Black |
| 20 |
XXX |
Not Available As Spare Parts |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
715000286 |
TRAILER HOOK KIT - Call your local BRP dealership |
| 24 |
705201993 |
REAR FOOTREST - Call your local BRP dealership |
| 25 |
705201942 |
Battery Support Base |
