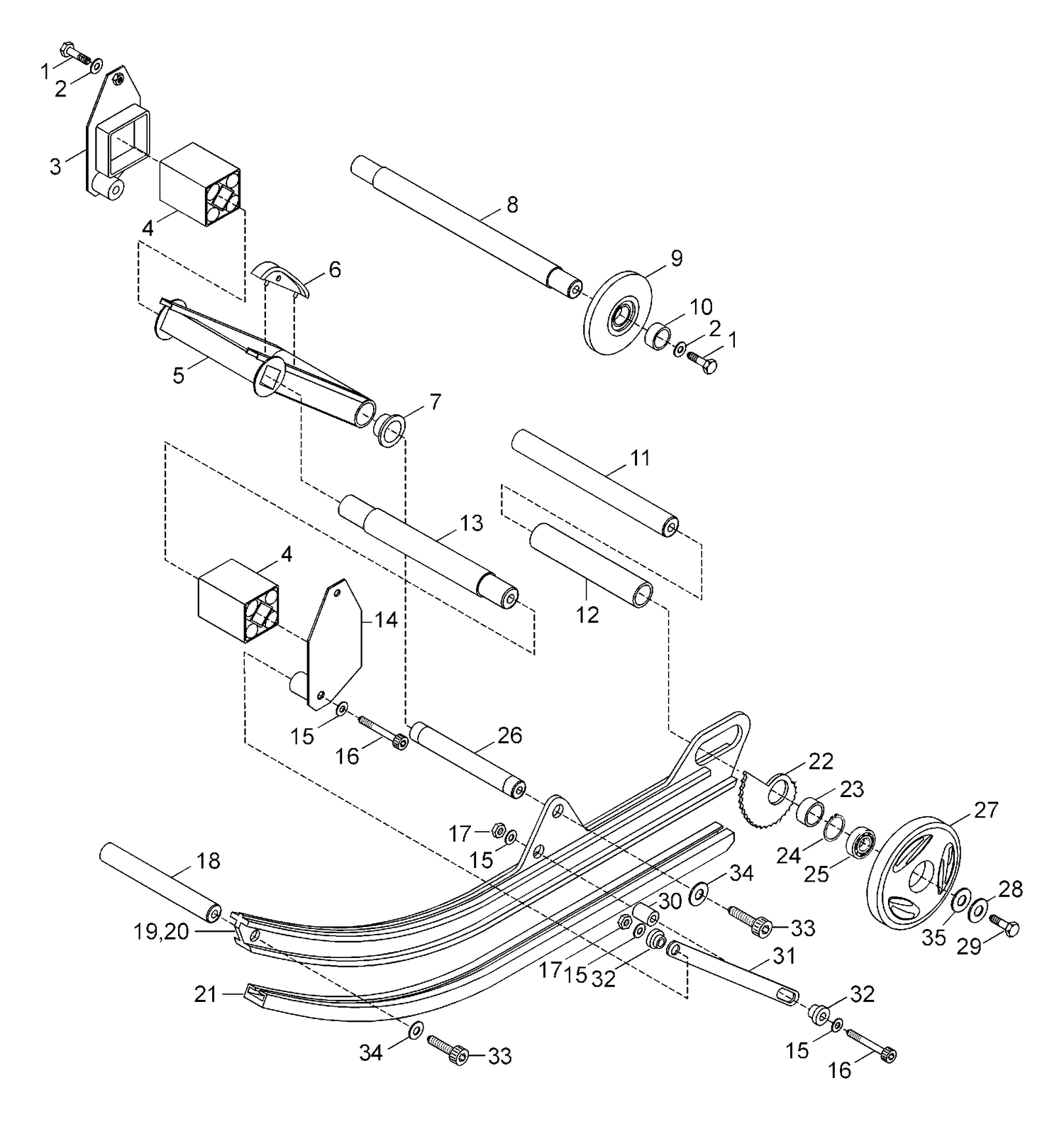

08- Rear Suspension
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 40029 | Screw M6x16 |
| 2 | 20003 | Washer |
| 3 | 5340450 | Rubber spring supp. |
| 4 | 5440220 | Rubber spring |
| 5 | 5240203 | Lever |
| 6 | 534841 | Plastic support |
| 7 | 31049 | Cushion |
| 8 | 5441854 | Axle |
| 9 | 543246 | Support wheel |
| 10 | 5441855 | Sleeve |
| 11 | 5440216 | Axle |
| 12 | 5441856 | Sleeve |
| 13 | 5440214 | Axle |
| 14 | 5340221 | Rubber spring supp. |
| 15 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 16 | 40290 | Allen screw M8x55 |
| 17 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 18 | 5441887 | Axle |
| 19 | 5240208 | Runner Left |
| 20 | 5240449 | Runner Right |
| 21 | 5340210 | Slider shoe |
| 22 | 5440219 | Adjuster plate |
| 23 | 5441857 | Sleeve |
| 24 | 31002 | Circlip |
| 25 | 31009 | Bearing |
| 26 | 5441853 | Axle |
| 27 | 570066602 | Support wheel Al |
| 28 | 20005 | WASHER M10 - Call your local BRP dealership |
| 29 | 40040 | Screw M10x25 |
| 30 | 5440667 | Sleeve |
| 31 | 5340227 | Stopper |
| 32 | 5440228 | Sleeve |
| 33 | 40241 | Allen screw M10x30 |
| 34 | 20047 | Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
