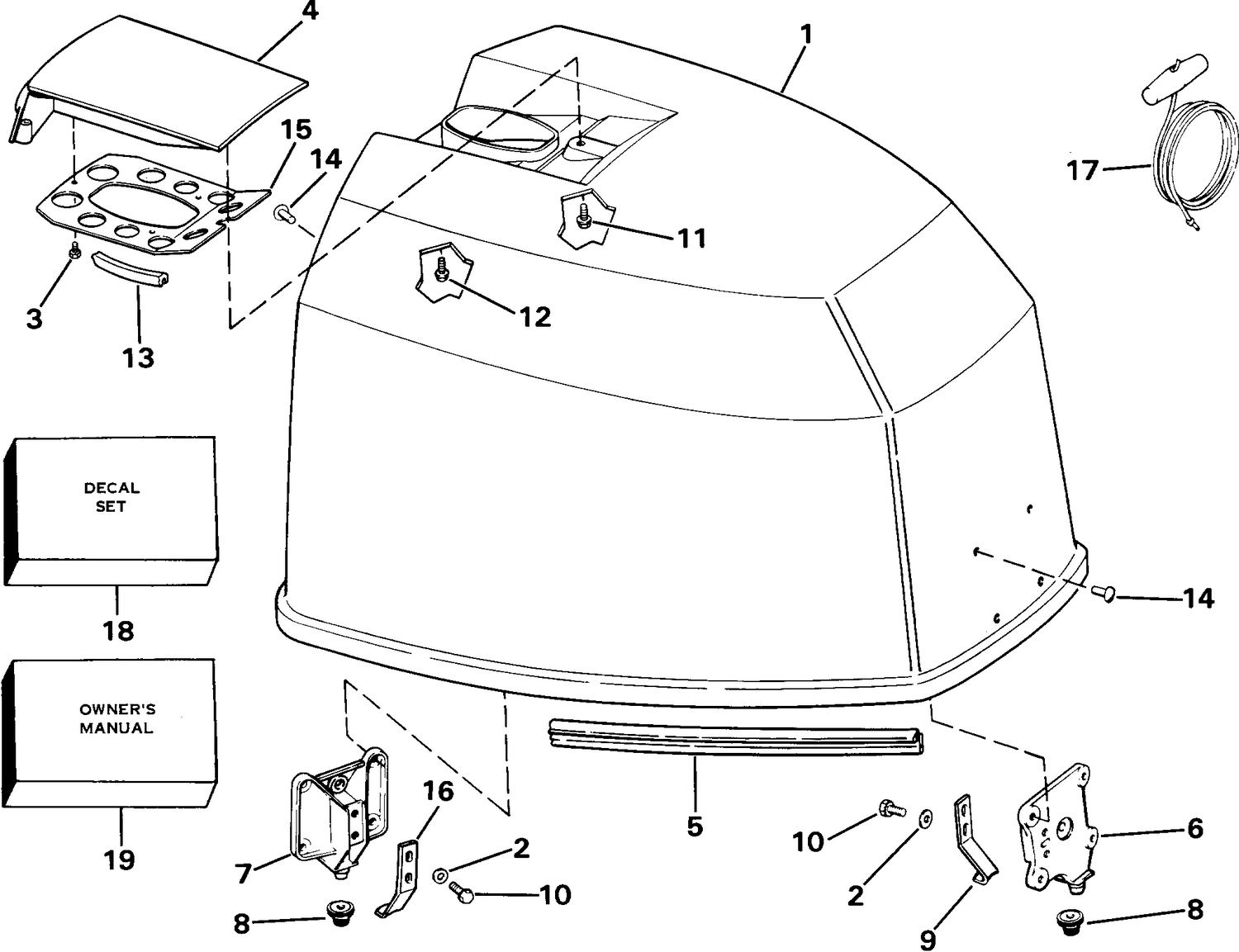

ENGINE COVER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0282175 | ENGINE COVER ASSY., Evinrude |
| 1 | 0393604 | ENGINE COVER ASSY., Johnson |
| 2 | 0306407 | LOCCKWASHER,Cover latch |
| 5 | 0328686 | SEAL, Engine cover |
| 6 | 0389971 | LOCATING BARCKET, Front |
| 7 | 0394976 | LOCATING BRACKET, Rear |
| 9 | 0323175 | HOOK , Motor Cover, Front |
| 13 | 0206519 | SEAL, Baffle |
| 15 | 0206520 | AIR INLET BAFFLE |
| 17 | 0378347 | CORDE DE LANCEUR |
| 18 | 0282508 | DECAL SET, Evinrude |
| 18 | 0397752 | DECAL SET, Johnson This part replaces 0395302. |
| 19 | 0395113 | OWNER'S MANUAL, Johnson |
