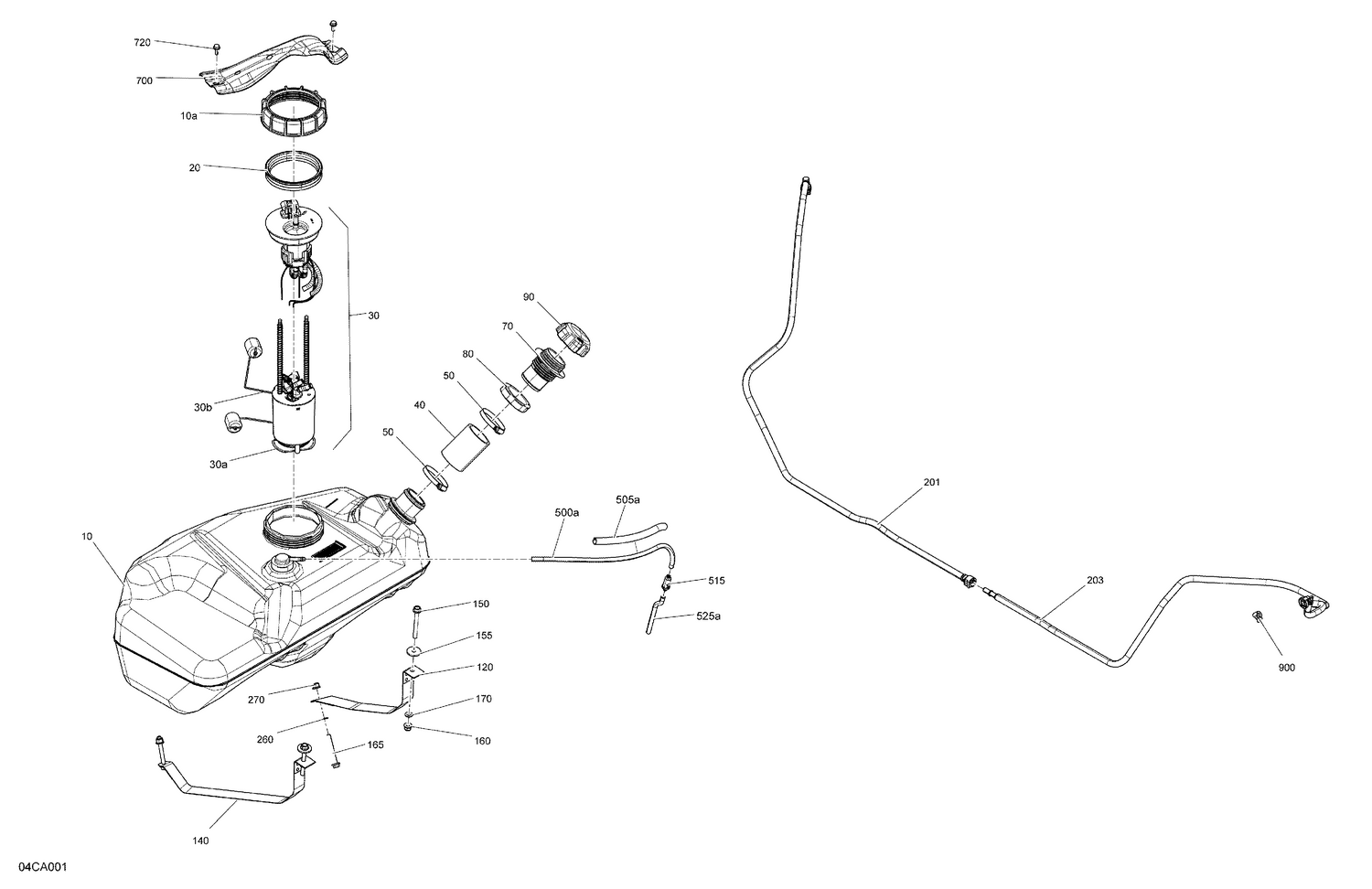

02- Engine - Fuel - NO EVAP System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 250100062 | Special Nut M130 |
| 20 | 293250173 | Gasket |
| 30a | 270600113 | Fuel Filter |
| 30b | 715900424 | Fuel Sender |
| 40 | 709000748 | Filler Neck |
| 50 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 211100012 | Filler Neck Nut, Fuel |
| 90 | 709000868 | Fuel Cap |
| 120 | 709000910 | Fuel Tank Strap |
| 140 | 709000911 | Fuel Tank Strap |
| 150 | 250001084 | Screw Hex. FLange M8x75 |
| 155 | 250200187 | Flat Washer M8 |
| 160 | 233281414 | Hex. Flange Elastic Nut M8 |
| 165 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 170 | 234081410 | Flat Washer 8 mm |
| 201 | 709000987 | Formed Hose |
| 203 | 709001059 | Formed Hose |
| 260 | 234081410 | Flat Washer 8 mm |
| 270 | 233281414 | Hex. Flange Elastic Nut M8 |
| 500a | 219704389 | Polyurethane Hose 4000MM Long |
| 505a | 219704407 | Tubing 10 MM 1000MM Long |
| 515 | 709001120 | Filter |
| 525a | 219704389 | Polyurethane Hose 4000MM Long |
| 700 | 707900594 | Connector Protector |
| 720 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
