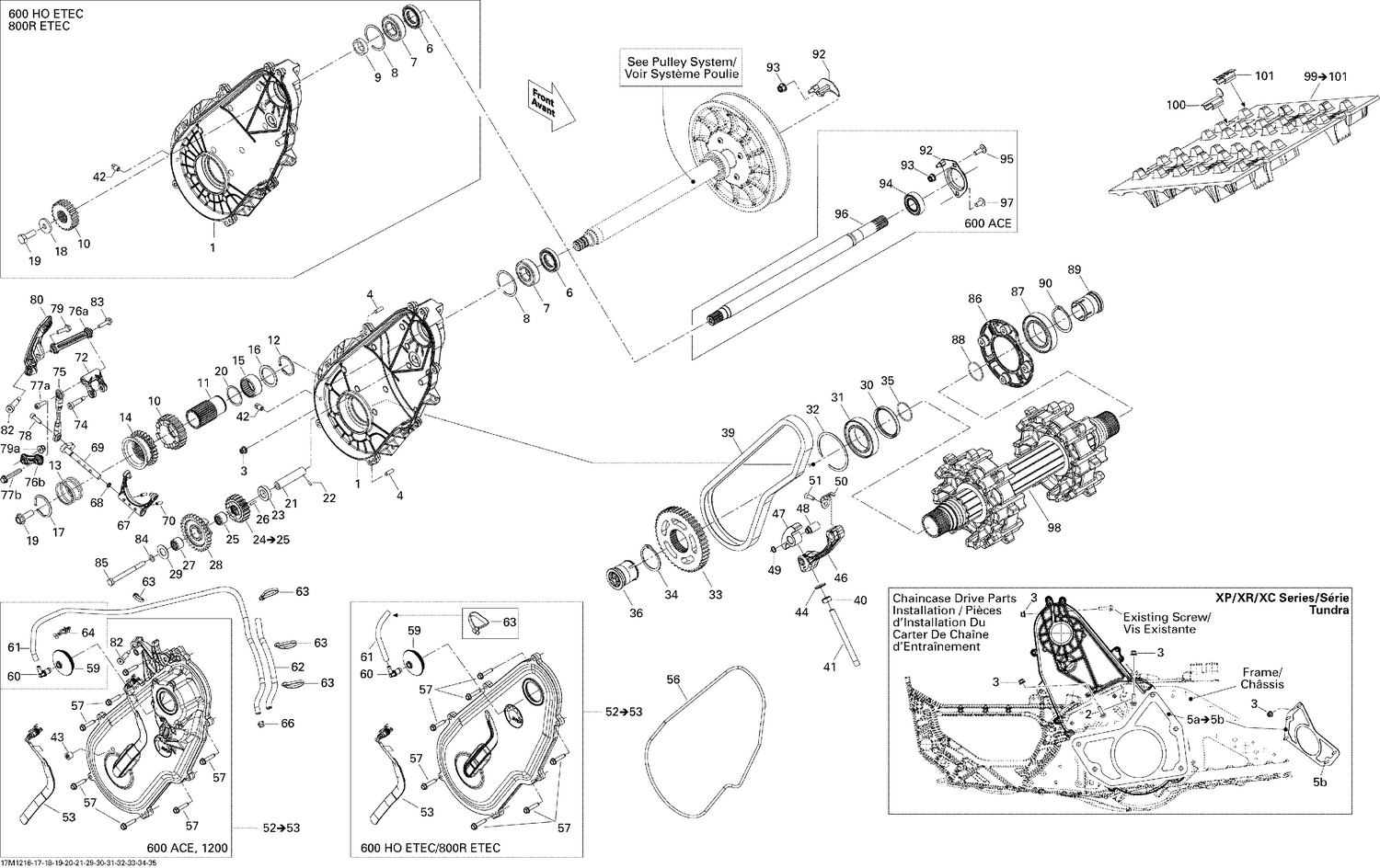

05- Drive System
Parts (86)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504153184 | Chaincase This part replaces 504152996. |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 |
| 3 | 233261434 | Flange Elastic Nut M6 |
| 4 | 250400048 | Dowel Pin |
| 6 | 293200168 | Oil Seal This part replaces 293250175. |
| 7 | 293350115 | Ball Bearing This part replaces 293350055. |
| 8 | 504152576 | Circlip |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 504152927 | Sprocket, 21 Teeth |
| 11 | 504152979 | Coupling |
| 12 | 293370054 | Circlip |
| 13 | 504153179 | Spring Release This part replaces 504152899. |
| 14 | 504152960 | Slinding Gear, 27 Teeth |
| 15 | 293350063 | Needle Bearing |
| 16 | 504152689 | Washer |
| 17 | 293370055 | Circlip |
| 18 | XXX | Not Available As Spare Parts |
| 19 | 207503044 | Hex. Screw M10 X 1.5 X 30 |
| 20 | 504152862 | Washer |
| 21 | 504083100 | Reverse Shaft |
| 22 | 250400010 | Rolled Pin M3 X 10 |
| 23 | 504078700 | Ring |
| 25 | 293350064 | Needle Bearing |
| 26 | 570048600 | Alignement Rod |
| 27 | 293350064 | Needle Bearing |
| 28 | 504152724 | Sprocket, 29 Teeth |
| 29 | 504077300 | Spacer |
| 30 | 293200159 | Oil Seal This part replaces 504152571. |
| 31 | 293350059 | Ball Bearing |
| 32 | 504152582 | Circlip |
| 33 | 861805539 | Kit Sprocket This part replaces 504152581. |
| 34 | 504152572 | Circlip |
| 35 | 293300122 | O-Ring |
| 36 | 504152619 | Magnetic Cap |
| 39 | 504152630 | Drive Chain, 106 Links |
| 40 | 232006414 | Hex. Nut M10 X 1.5 |
| 41 | 504152602 | Adjustment Screw |
| 42 | 504152636 | Magnetic Plug 1/8 - 27 NPTF |
| 43 | 250500013 | Hex. Countersunk Drain Plug This part replaces 250500012. |
| 44 | 250200100 | Bonded Washer |
| 46 | 504153431 | Chaine Tensionner This part replaces 504152748. |
| 47 | 504152739 | Slider Chain This part replaces 504153031. |
| 48 | 504152841 | Tensioner Axle |
| 49 | 504152282 | Circlip |
| 50 | 504153122 | Chain Slider |
| 51 | 205862044 | Socket Head Screw M6 X 20, Scotch Grip |
| 53 | 504152896 | Rotation Sensor |
| 56 | 293300130 | Tight Seal |
| 57 | 250000360 | Hex. Flange Screw M6 X 1.0 X 30 |
| 59 | 504152930 | Cap |
| 60 | 293710035 | Straight Fitting |
| 61 | 219704410 | Polyurethane Hose 10000Mm Long |
| 62 | 504153074 | Tube Protector This part replaces 504152900. |
| 63 | 414115200 | Tie-Rap 180 mm |
| 64 | 291000714 | ATTACHE *BRACKET - Call your local BRP dealership |
| 66 | 414554800 | Spring Clamp |
| 67 | 504153432 | Fork Ass'y This part replaces 504152954. |
| 68 | 414484400 | O-Ring |
| 69 | 504152956 | Welded Axle Fork |
| 70 | 250400045 | Spring Pin M5 X 16 |
| 72 | 504153427 | Lever This part replaces 504152788. |
| 74 | 250000340 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 75 | 504152951 | Ball Joint |
| 76 | 504152710 | Double Ball Joint |
| 77 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 78 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 79 | 207562544 | Hex. Flange Screw M6 X 25 |
| 80 | 504153082 | Grip |
| 82 | 250000340 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 83 | 207562544 | Hex. Flange Screw M6 X 25 |
| 84 | 504082900 | Washer |
| 85 | 207089044 | Hex. Screw M8 X 90 |
| 86 | 504153886 | Retaining Ring This part replaces 504152949. |
| 87 | 293350059 | Ball Bearing |
| 88 | 293300122 | O-Ring |
| 89 | 504152619 | Magnetic Cap |
| 90 | 504152572 | Circlip |
| 92 | 504153089 | BEARING HOUSING ASS'Y - Call your local BRP dealership |
| 93 | 233281414 | Hex. Flange Elastic Nut M8 |
| 94 | 293350074 | Ball Bearing |
| 95 | 207783044 | Carriage Bolt M8 X 30 |
| 96 | 504153000 | Countershaft |
| 97 | 250000746 | Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 98 | 504154054 | Drive Axle Ass'y This part replaces 504153083. |
| 100 | 415129528 | Track Guide |
| 101 | 504152651 | Cleat |
