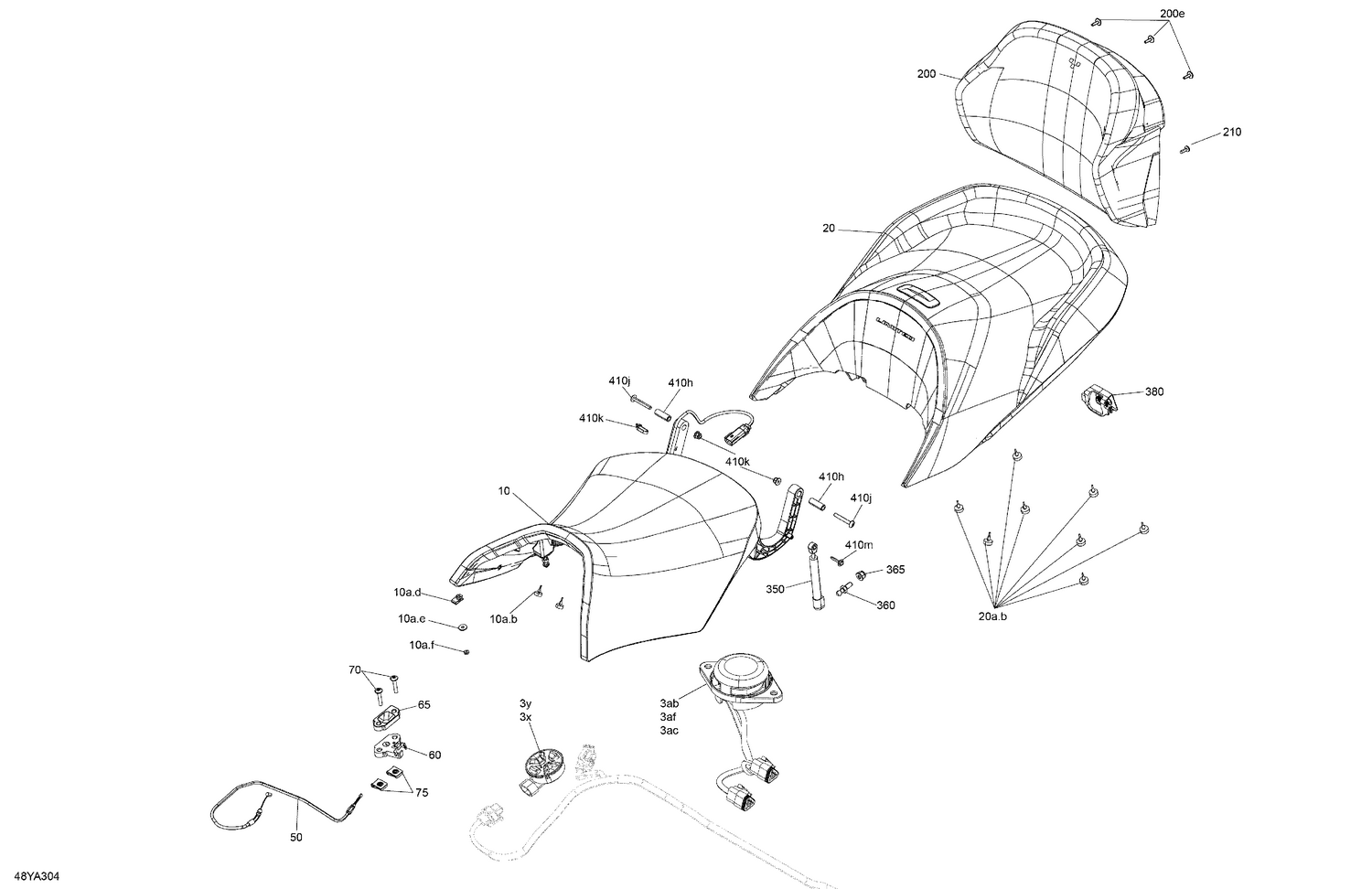

07- Body - Seat
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 3ab | 710008103 | Passenger Detection Switch This part replaces 710005543. |
| 3ac | 710008103 | Passenger Detection Switch This part replaces 710005543. |
| 3af | 710008103 | Passenger Detection Switch This part replaces 710005543. |
| 3x | 710006797 | RH Passenger Radio Keypad |
| 3y | 710006797 | RH Passenger Radio Keypad |
| 50 | 517307507 | Actuator Cable |
| 60 | 705007379 | Latch |
| 65 | 708003260 | Trim Latch |
| 70 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 75 | 250100208 | Panel Nut M6 X 1.0 |
| 200e | 250000725 | Screw M4 X 16 |
| 210 | 250000720 | Torx Screw K50 X 16 |
| 350 | 708003221 | Shock Absorber |
| 360 | 250300039 | Ball Head Stud |
| 365 | 233281414 | Hex. Flange Elastic Nut M8 |
| 380 | 708303050 | Connector Cap |
| 410h | 708000664 | Spacer |
| 410j | 250000748 | Torx Screw M6 X 45 |
| 410k | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
