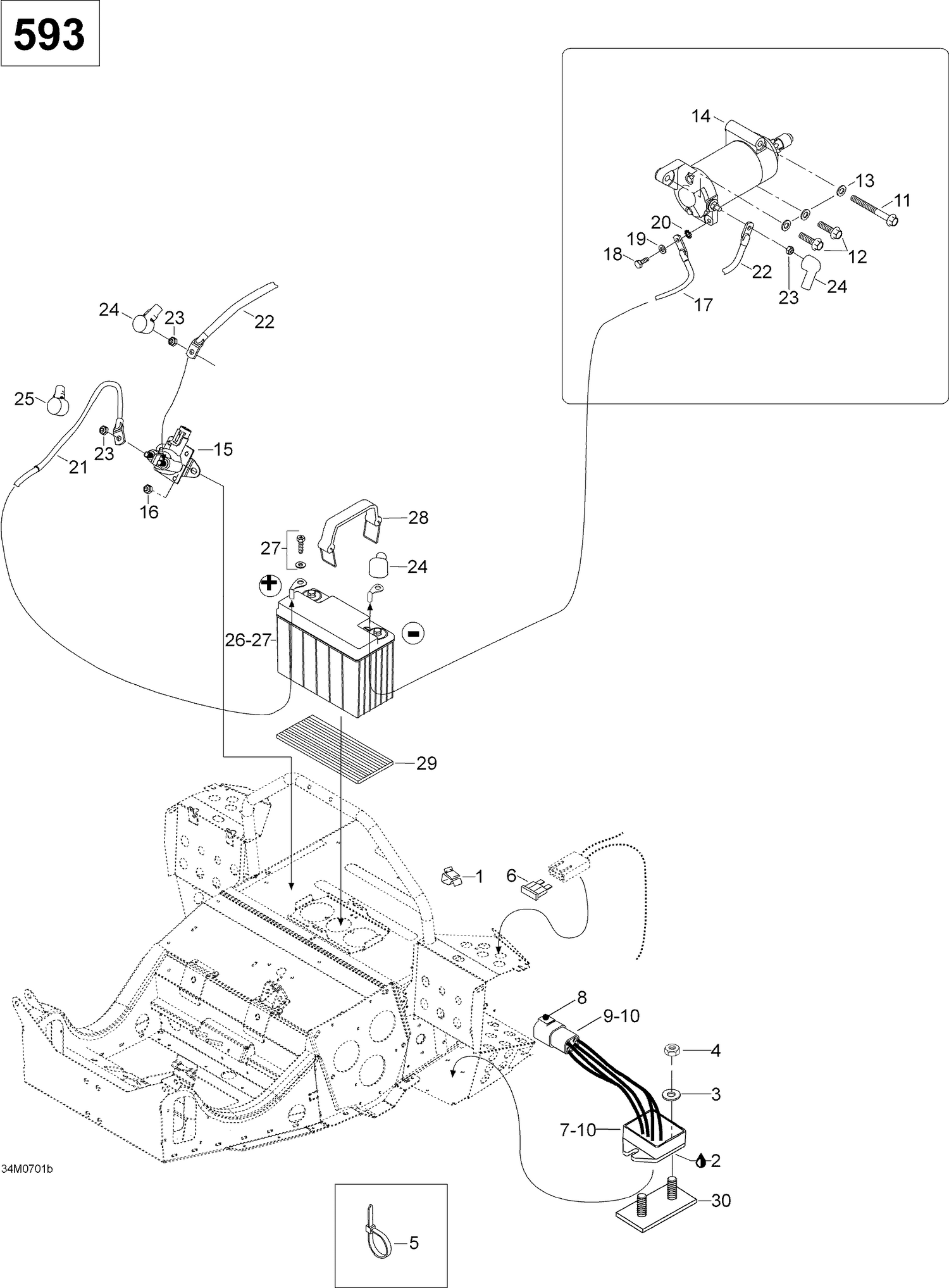

| Ref | Part Number | Description |
|---|
| 1 |
414227300 |
Clip |
| 2 |
413707500 |
Grease Tube Lmz, 400 G |
| 3 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 4 |
232561414 |
Elastic Stop Nut M6 |
| 5 |
414115200 |
Tie-Rap 180 mm |
| 6 |
409003900 |
Fuse, 20 Amperes |
| 8 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 9 |
515175568 |
Male Terminal |
| 10 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 11 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 12 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 13 |
250200008 |
Flat Washer With Teflon 8 mm |
| 14 |
515176133 |
Electric Starter Ass'y |
| 15 |
278003012 |
Starter Relay This part replaces 278001802. |
| 16 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 17 |
M5446597 |
Battery Wire |
| 18 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 19 |
234061410 |
Flat Washer 6 mm |
| 20 |
M20017 |
SERRATED LOCK WASHER - Call your local BRP dealership |
| 21 |
M5348359 |
Battery Wire |
| 22 |
232561414 |
Elastic Stop Nut M6 |
| 23 |
232561414 |
Elastic Stop Nut M6 This part replaces M33010. |
| 24 |
570151000 |
Protection Cap |
| 25 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 26 |
410301203 |
Battery YUASA YTX20L |
| 27 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 28 |
515176044 |
Battery Strap This part replaces 515175475. |
| 29 |
605350237 |
BATTERY CARPET - Call your local BRP dealership |
