Parts Catalog

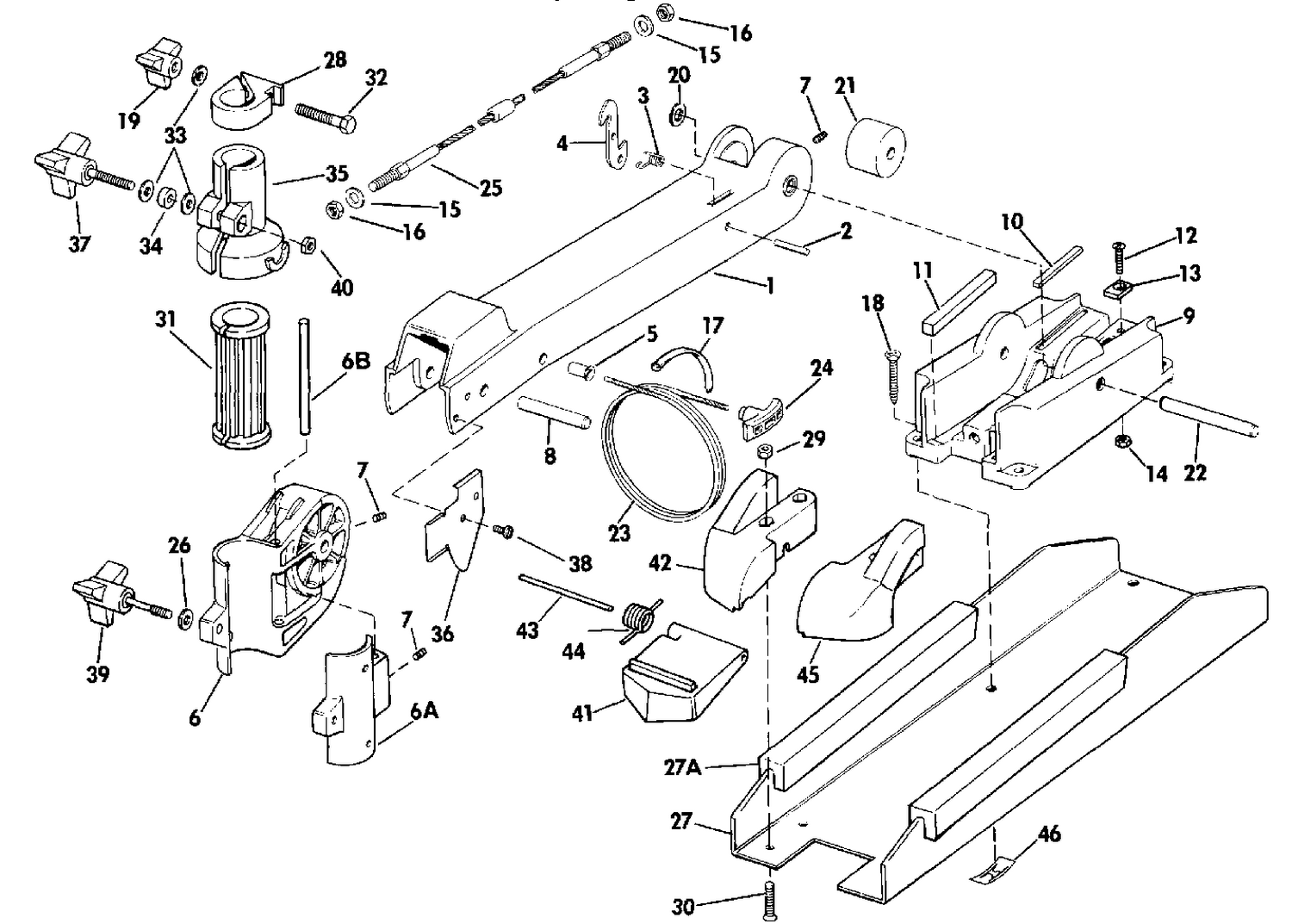

BOW ARM AND DECK BRACKET GROUP

Parts (40)

Ref	Part Number	Description
1	0433926	BOW ARM ASSY. This part replaces 0393303.
2	0321351	PIVOT PIN, Latch
3	0333726	SPRING This part replaces 0319745.
4	0116529	LATCH, Bow arm This part replaces 0319742.
5	0320356	EYELET
6	0397886	BRACKET & PIN ASSY. This part replaces 0395598.
6A	0330962	CLAMP
6B	0329439	PIN
7	0321223	SET SCREW
8	0328395	PIN, Arm to bracket
9	0432081	MOUNTING BRACKET ASSY., Arm to deck This part replaces 0387498.
10	0319750	PAD, Deck bracket
11	0320791	PAD
12	0116414	SCREW, Plate to bracket This part replaces 0321333.
13	0321334	PLATE, Bow arm latch
17	0320107	ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
18	0319851	SCR3EW, Mounting brkt to boat
19	0398863	ADJUSTMENT KNOB, Tube to bracket This part replaces 0320399.
20	0309335	WASHER
21	0319711	DRUM, Cable
22	0334291	PIN, Arm to deck bracket This part replaces 0328394.
23	ROPE,	Latch release
24	0325747	HANDLE
25	0397704	CABLE ASSY., Bow arm This part replaces 0386538.
27	0394318	MOTOR REST ASSY
27A	0325705	BUMPER, Motor rest
28	0325617	CLAMP, Motor tube height adj. This part replaces 0320423.
30	0335565	SCREW, Guide to motor rest This part replaces 0131811.
31	0327269	BUSHING This part replaces 0330431.
32	0306427	BOLT
34	0326489	BUSHING, Knob to steering friction clamp
35	0326490	CLAMP, Steering friction
36	0326491	ARM, Steering friction
37	0398862	ADJUSTMENT KNOB ASSY. This part replaces 0395078.
39	0398862	ADJUSTMENT KNOB ASSY. This part replaces 0395078.
41	0394798	GUIDE ASSY
42	0329626	GUIDE, Starboard
43	0329627	PIN
44	0329628	SPRING, Guide
0394795	0394795	MOTOR GUIDE ASSEMBLY
