Parts Catalog

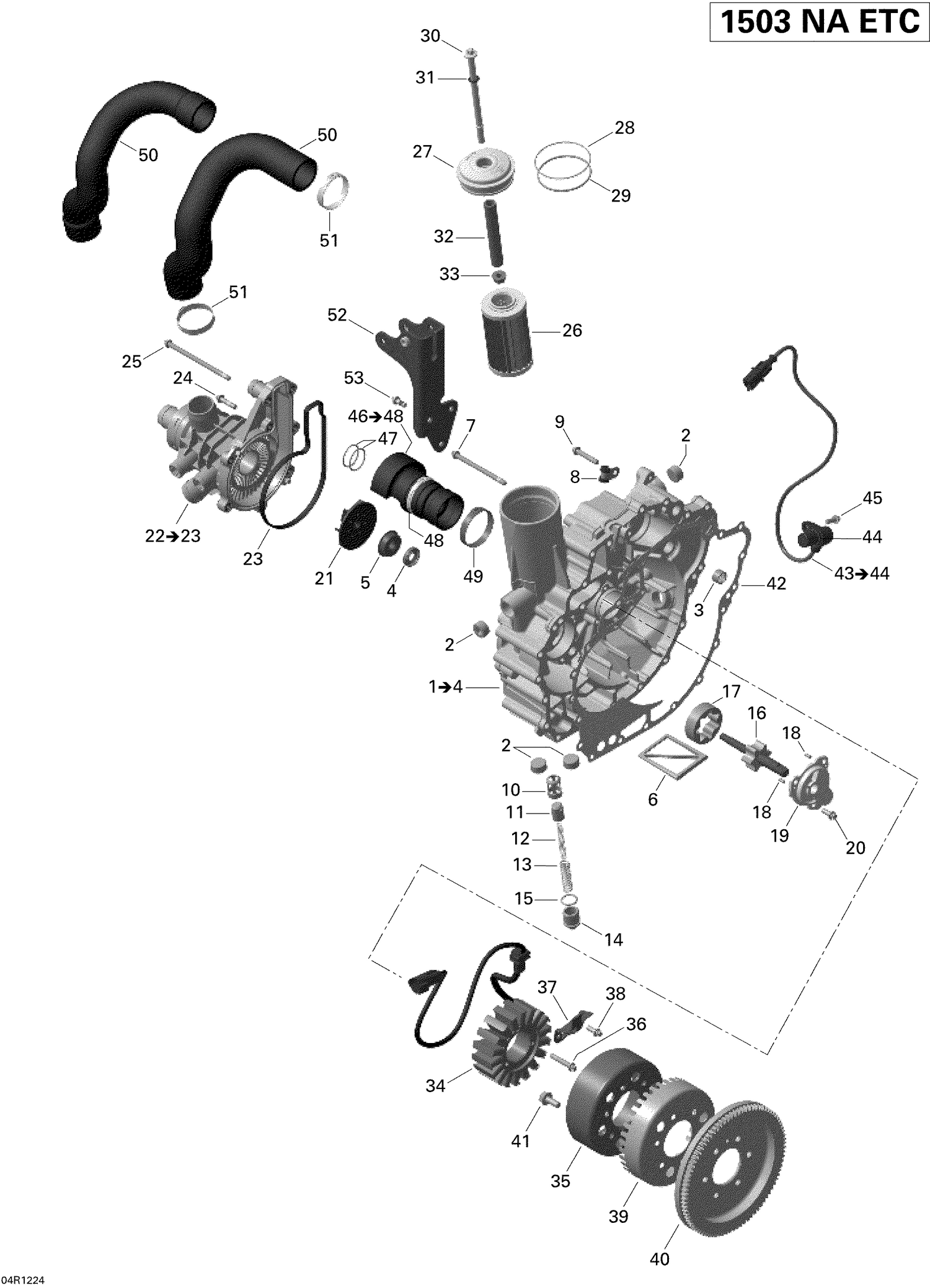

03- PTO Cover And Magneto 3_Sea-Doo Boats

Parts (48)

Ref	Part Number	Description
2	420641317	Plug Screw M20 X 1.5
3	420232482	Needle Bushing This part replaces 420232480.
4	420650315	Oil Seal This part replaces 420650310.
5	420650371	Rotary Seal This part replaces 420650370.
6	420956950	Oil Sieve
7	420641228	Torx Flange Screw M6 X 85
8	420853414	Clamp
9	420641258	Torx Flange Screw M6 X 35
10	420256606	Valve Seat Sleeve
11	420256638	Piston Valve This part replaces 420256630.
12	420939401	Compression Spring This part replaces 420939400.
13	420939211	Compression Spring This part replaces 420939210.
14	420641052	Plug Screw M20 X 1.5
15	420230890	O-Ring
16	420837472	Pump Shaft Ass'y
17	420956675	Oil Pump Rotor 16 mm
18	420929070	Needle Pin
19	420811591	Oil Pump Cover This part replaces 420811590.
20	420641048	Torx Flange Screw M6 X 16
21	420922801	Impeller
23	420950840	Water Pump Housing Gasket
24	420641238	Torx Flange Screw M6 X 25
25	420641338	Torx Flange Screw M6 X 105
26	420956741	Oil Filter
27	420612081	Oil Filter Cover This part replaces 420612080.
28	420230923	O-Ring This part replaces 420230920.
29	420850500	O-Ring
30	420641104	Hex Screw M8 X 140.5 This part replaces 420641103.
31	420950860	O-Ring
32	420857229	Spacer
33	420842610	Hex. Nut M8
34	420889726	Stator Plate This part replaces 420889721.
35	420296900	Magneto Flywheel
36	420641258	Torx Flange Screw M6 X 35
37	420926300	Retaining Plate
38	420641048	Torx Flange Screw M6 X 16
39	420966851	Trigger Wheel This part replaces 420664082.
40	420835163	Starter Gear, 86 Teeth
41	295501162	Hex Screw This part replaces 420641016.
42	420931130	Timing Drive Cover Gasket (1603 NA)
44	420431580	O-Ring
45	420641048	Torx Flange Screw M6 X 16
47	420631612	O-Ring This part replaces 420631610.
48	420853023	Gear Clamp 46.8-50.0MM
49	420851653	Gear Clamp
50	420922828	Formed Hose This part replaces 420922825.
51	420851687	Oetiker Clamp
52	XXX	Not Available As Spare Parts
