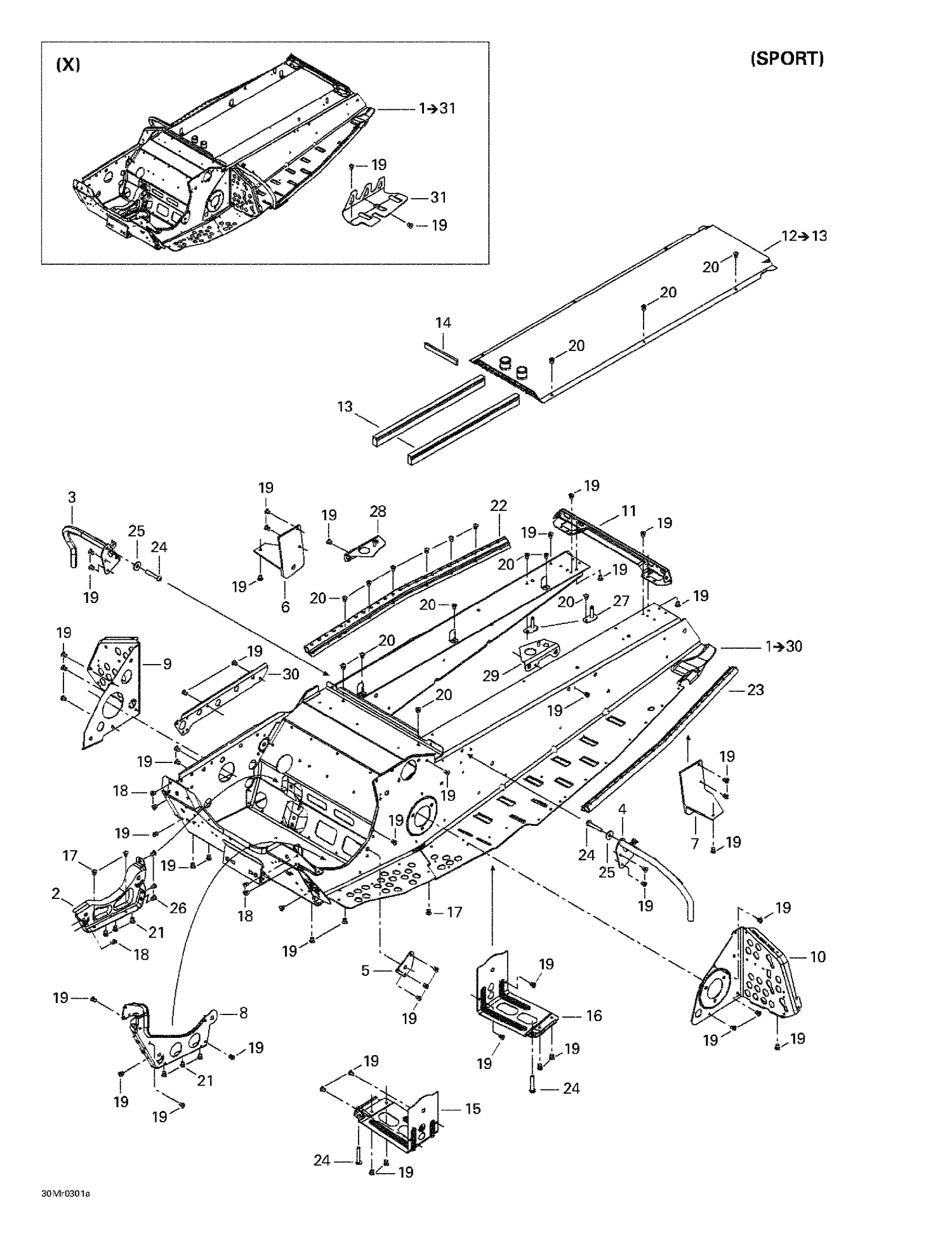

09- Frame
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518323346 | ENGINE SUPPORT, BLACK - Call your local BRP dealership |
| 3 | 518322180 | RH Toe Hold Support |
| 4 | 518322181 | LH Toe Hold Support |
| 5 | 518323507 | OUTER REINFORCEMENT - Call your local BRP dealership |
| 6 | 518323348 | RH Slide Bracket |
| 7 | 518323350 | LH slide bracket |
| 8 | 518323241 | INNER REINFORCEMENT, BLACK - Call your local BRP dealership |
| 9 | 518323244 | RH Footrest Reinforcement |
| 10 | 518323245 | LH Footrest Reinforcement |
| 11 | 518323391 | Frame Forming Reinforcement |
| 13 | 518321656 | Radiator Protector |
| 14 | 219704364 | Neoprene Seal (1PAC=3M) |
| 15 | 518322432 | RH Footrest |
| 16 | 518322433 | LH Footrest |
| 17 | 390909200 | Avex Rivet |
| 18 | 390909100 | Avex Rivet |
| 19 | 390402200 | Pop Rivet 3/16" |
| 20 | 390402400 | Pop Rivet 3/16" |
| 21 | 390910300 | HENROB RIVET - Call your local BRP dealership |
| 22 | 518322186 | RH Roller |
| 23 | 518322187 | LH Roller |
| 24 | Not | Available As Spare Part - Socket head screw M8 x 20 (Scotch Grip) |
| 25 | 234082410 | Flat Washer 8 mm |
| 26 | 293150096 | Hemlock Rivet, 6.5 mm |
| 27 | 518322791 | Tank Bracket |
| 28 | 518323336 | RH Frame Reinforcement, Black |
| 29 | 518323337 | LH Frame Reinforcement, Black |
| 30 | 518323328 | RH TUNNEL STIFFENER - Call your local BRP dealership |
| 31 | 518323306 | RH Tunnel Liner |
| 518323421 | RH | Roller 518323421 |
| 518323421 | Rouleau | DR 518323421 |
| 518323422 | LH | Roller 518323422 |
| 518323422 | Rouleau | GA 518323422 |
