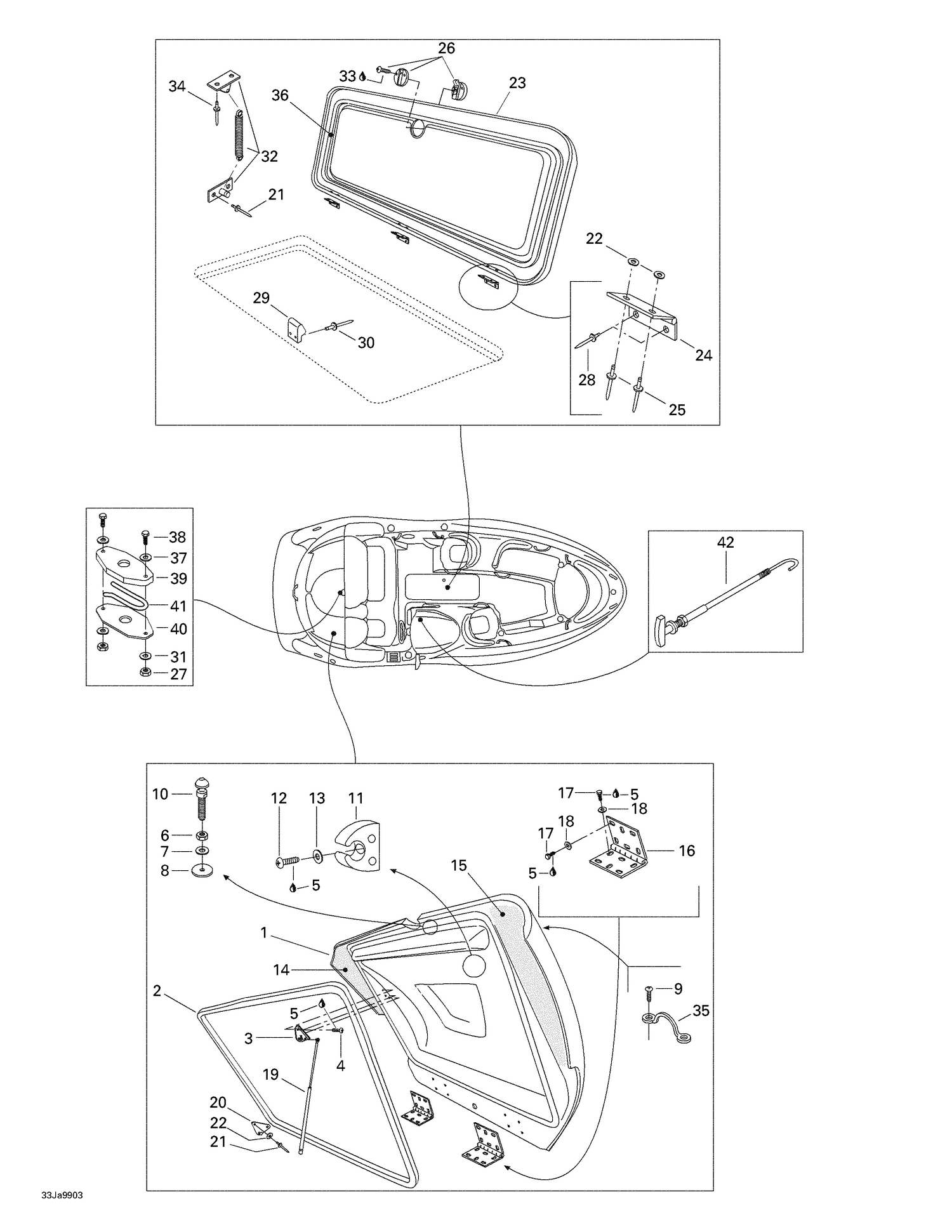

| Ref | Part Number | Description |
|---|
| 1 |
204070311 |
Engine Cover (5676) |
| 2 |
219704365 |
Was 293200017 Neoprene Seal |
| 3 |
204070065 |
SHOCK BRACKET - Call your local BRP dealership |
| 4 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 5 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 6 |
232100600 |
Hex. Jam Nut M10 |
| 7 |
234002600 |
Flat Washer 10 mm, Stainless |
| 8 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 9 |
208443060 |
Phillips Screw M4 X 30 |
| 10 |
204700001 |
Latch Stud |
| 11 |
291000642 |
Pole Support |
| 12 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 13 |
234040600 |
Flat Washer 4 mm |
| 14 |
204070250 |
RH Engine Cover Foam |
| 15 |
204070251 |
LH Engine Cover Foam |
| 16 |
204070127 |
HINGE ASS'Y - Call your local BRP dealership |
| 17 |
207162560 |
Hex. Screw M6 X 25 |
| 18 |
234061600 |
Stainless Flat Washer M6 |
| 19 |
204070178 |
RH Retainer Cylinder |
| 20 |
204070081 |
LATCH COVER CABLE - Call your local BRP dealership |
| 21 |
293150043 |
Pop Rivet 3/16" |
| 22 |
234051600 |
Flat Washer M5, Stainless |
| 23 |
204073144 |
CENTER COVER - Call your local BRP dealership This part replaces 204070085. |
| 24 |
204072601 |
HINGE - Call your local BRP dealership This part replaces 291000538. |
| 25 |
204070038 |
SPRING - Call your local BRP dealership |
| 26 |
204070063 |
VERROU, WHITE - Call your local BRP dealership |
| 27 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 28 |
293150037 |
Avdel Rivet 3/16" |
| 29 |
204070050 |
LATCH BRACKET - Call your local BRP dealership |
| 30 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 31 |
234062600 |
Flat Washer M6, Stainless |
| 32 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 33 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 34 |
293150055 |
RIVET_POP 3/16 - Call your local BRP dealership |
| 35 |
204070234 |
Strap Tie |
| 36 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 37 |
234061600 |
Stainless Flat Washer M6 |
| 38 |
207163560 |
Hex. Screw M6 X 35 |
| 39 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 295500607 |
Engine |
Cover (5680) 295500607 |
