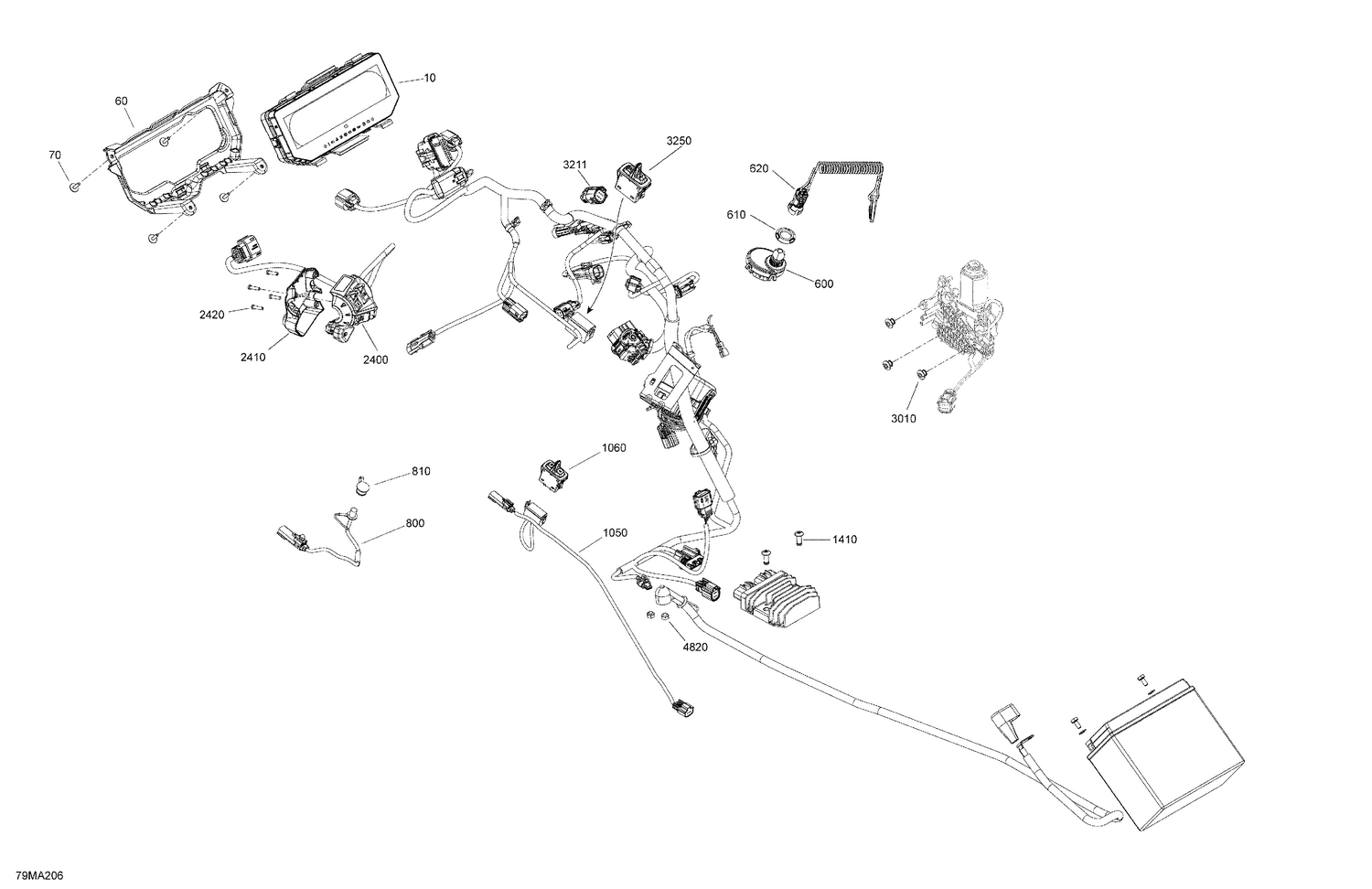

08- Electric - Upper Section
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178227 | Multifunction Gauge Full Size Mono |
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1050 | 515178608 | Seat Wiring Harness |
| 1060 | 515178503 | Switch Rocker |
| 1410 | 293150182 | Monobolt Rivet 6.4 |
| 2400 | 515178196 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 3010 | 515177929 | Rivet |
| 3211 | 515178202 | Coil Connector |
| 3250 | 515178501 | Rocket Switch |
