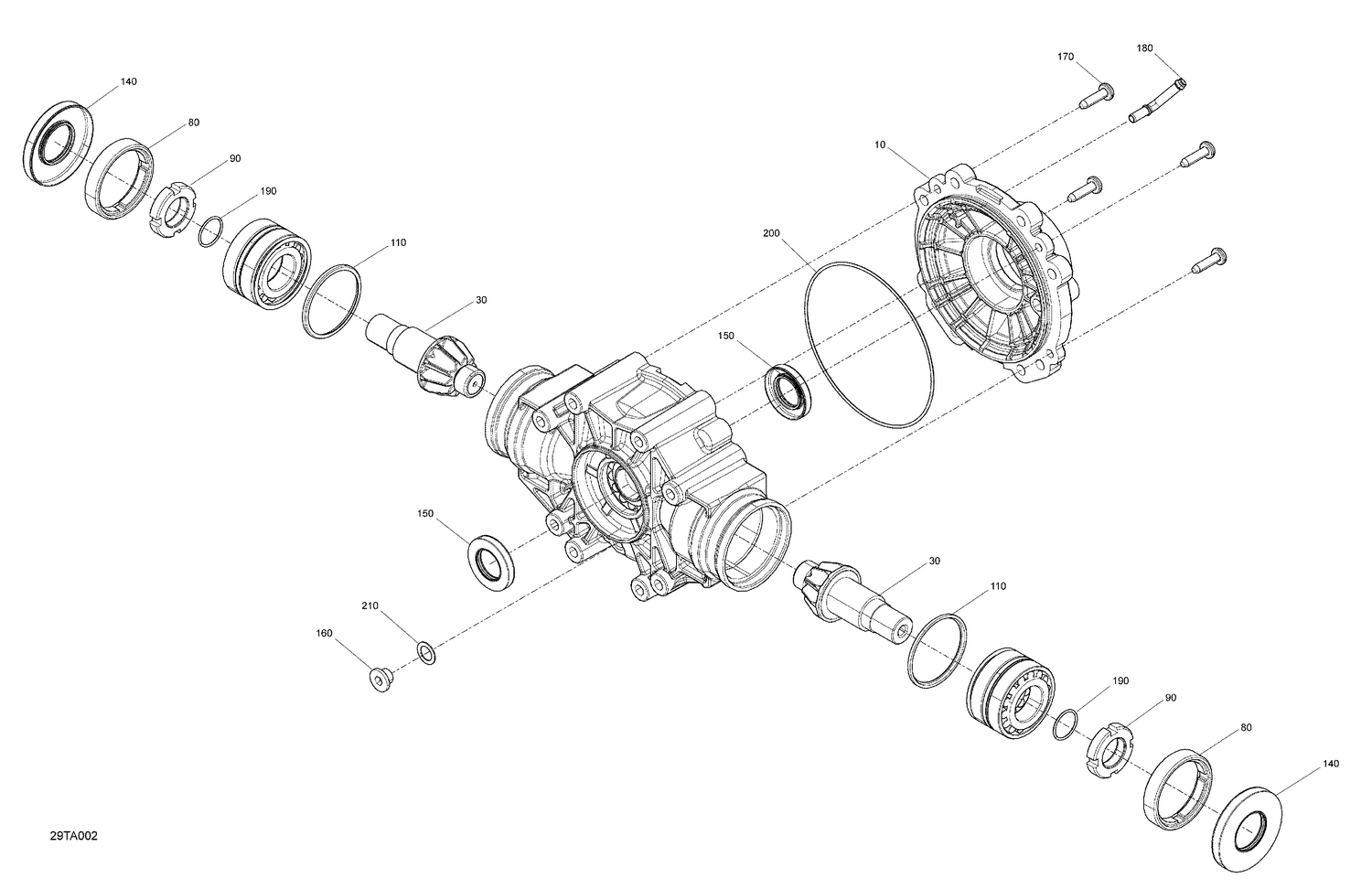

04- Drive - Rear Section - Middle Drive Unit
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 705503088 | Middle Drive Unit Ass'y |
| 10 | 705503089 | Case Cover |
| 30 | 703501031 | Gear Kit - 10/36 teeth |
| 80 | 705501549 | Nut |
| 90 | 705501550 | Nut |
| 110 | 703500835 | Differential Shim Kit |
| 140 | 705501557 | Oil Seal |
| 150 | 705501556 | Oil Seal |
| 160 | 705500504 | Fill Level Plug |
| 170 | 705502063 | Screw |
| 180 | 705501584 | Breather Tube |
| 190 | 705501554 | O-Ring |
| 200 | 705501711 | O-Ring |
