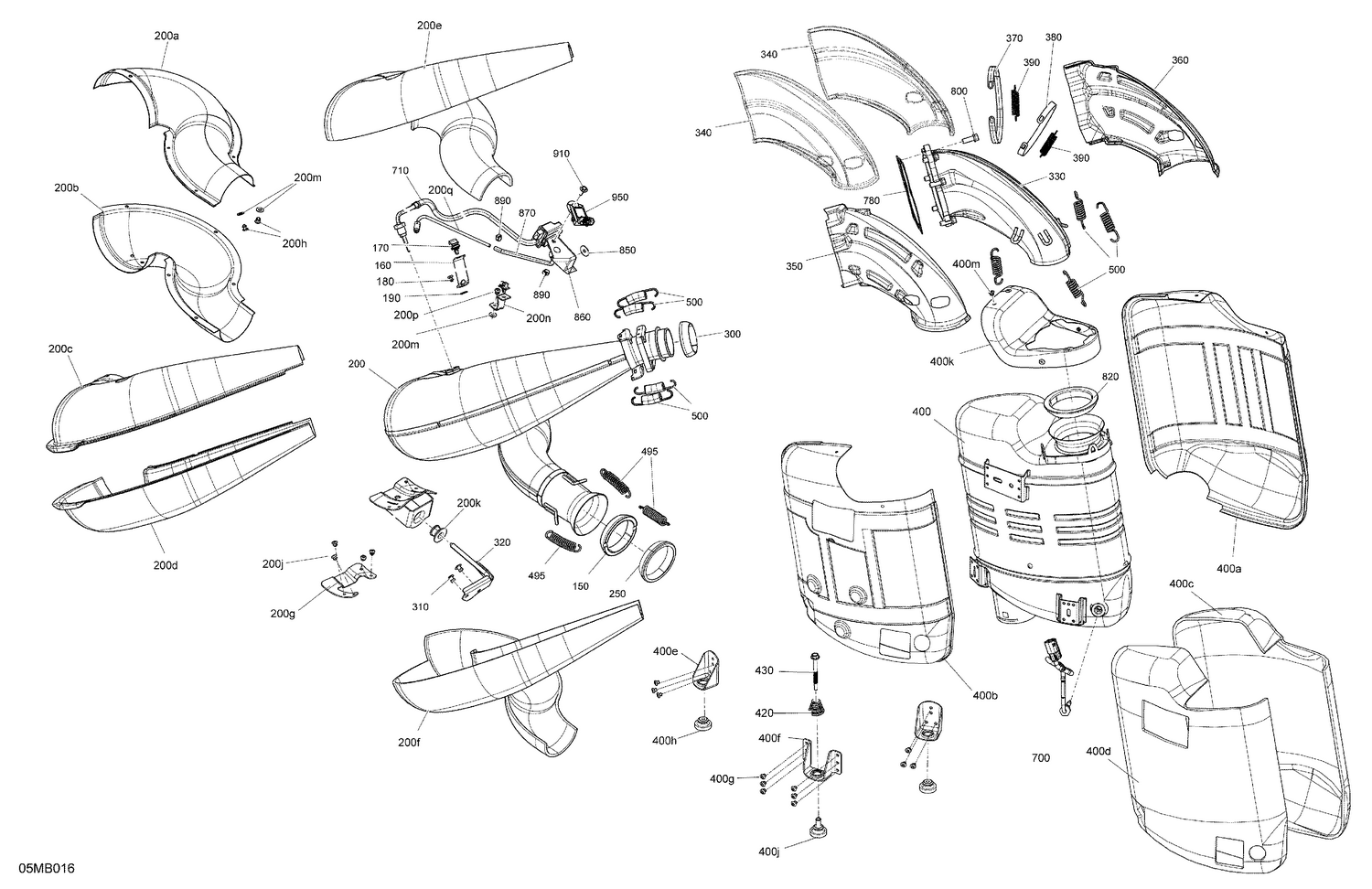

02- Engine - Exhaust
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514053487 | Exhaust Gasket |
| 160 | 514055512 | Support |
| 170 | 515176795 | Tie Rap Mount (screwable) |
| 180 | 390909100 | Avex Rivet |
| 190 | 514055537 | Washer 3/16 |
| 200a | 514056283 | Shell This part replaces 514055729. |
| 200b | 514056282 | Shell This part replaces 514055822. |
| 200c | 514056421 | Rear Upper Shell This part replaces 514055617. |
| 200d | 514056141 | Rear Lower Aluminum Shell |
| 200e | 514056351 | Glass Wool This part replaces 514055715. |
| 200f | 514056352 | Glass Wool This part replaces 514056143. |
| 200g | 514055844 | Plate |
| 200h | 390909200 | Avex Rivet |
| 200j | 390909200 | Avex Rivet |
| 200k | 514055632 | Rubber |
| 200m | 514055537 | Washer 3/16 |
| 200n | 514055846 | Support |
| 200p | 390909100 | Avex Rivet |
| 200q | 514055725 | Tube |
| 250 | 514055965 | Seal |
| 300 | 514054174 | Exhaust Gasket |
| 310 | 293150119 | Hemlock Rivet, 6.5 mm |
| 320 | 514055214 | Support |
| 330 | 514056157 | Manifold |
| 340 | 514056380 | Glass Wool This part replaces 514055763. |
| 350 | 514056161 | Rear Sheild |
| 360 | 514055747 | Front Shield |
| 370 | 514056144 | Retaining Strap |
| 380 | 514056145 | Retaining Strap |
| 390 | 514053643 | Spring |
| 400a | 514056114 | RH Deflector |
| 400b | 514056212 | LH Deflector |
| 400c | 514056356 | Glass Wool This part replaces 514055695. |
| 400d | 514056049 | Wool |
| 400e | 514056054 | Support |
| 400f | 514056055 | Support |
| 400g | 390402200 | Pop Rivet 3/16" |
| 400h | 514055203 | Stopper |
| 400j | 514056138 | Stopper Ass'y |
| 400k | 514056151 | Cap |
| 400m | 390402400 | Pop Rivet 3/16" |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flange Screw M6 |
| 495 | 514056058 | Spring |
| 500 | 514055198 | Spring |
| 700 | 514055888 | Exhaust Temperature Sensor |
| 710 | 515178170 | Module |
| 780 | 514056159 | Exhaust Gasket |
| 800 | 250001130 | Hex. Flange Screw M8 X 20 |
| 820 | 514055731 | Exhaust Gasket |
| 850 | 224060201 | Flat Washer |
| 860 | 514055723 | Sensor Support |
| 870 | 514056300 | Hose This part replaces 514055724. |
| 890 | 293650249 | Crimp Clamp |
| 910 | 250000725 | Screw M4 X 16 |
