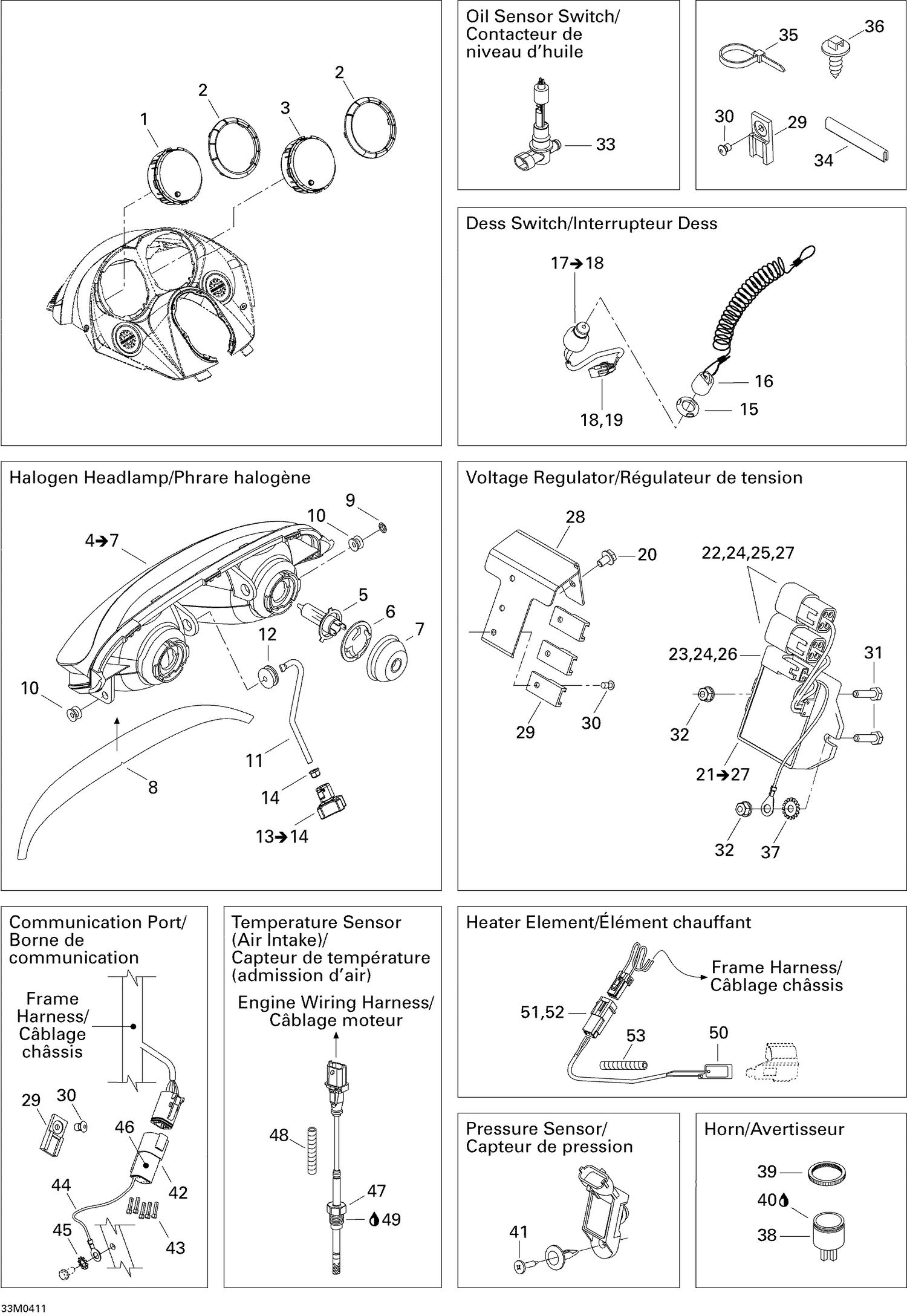

| Ref | Part Number | Description |
|---|
| 1 |
515176074 |
Speedometer |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 3 |
515176072 |
Tachometer |
| 5 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401. |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership This part replaces 515175910. |
| 7 |
515175911 |
COVER - Call your local BRP dealership |
| 8 |
516001328 |
HEADLAMP DECAL - Call your local BRP dealership |
| 9 |
732610072 |
Push Nut |
| 10 |
515175760 |
HEADLAMP BUSHING - Call your local BRP dealership |
| 11 |
515175521 |
ADJUSTER ROD - Call your local BRP dealership |
| 12 |
415100800 |
Grommet - Call your local BRP dealership |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 16 |
515178284 |
DESS This part replaces 515166900. |
| 18 |
515175232 |
Male Terminal |
| 19 |
515174494 |
Male Terminal Housing, 3 Circuits |
| 20 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 22 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 23 |
278001674 |
Mâle Terminal Housing, 2 Circuits |
| 24 |
515175568 |
Male Terminal |
| 25 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 26 |
278001672 |
Male Lock, 2 Circuits |
| 27 |
293000052 |
Sealing Cap |
| 28 |
515175916 |
Housing Support |
| 29 |
270000141 |
Clip This part replaces 515175917. |
| 30 |
293150037 |
Avdel Rivet 3/16" |
| 31 |
207162544 |
Hex. Screw M6 X 25 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
515176327 |
OIL LEVEL SENSOR - Call your local BRP dealership This part replaces 515176016. |
| 34 |
509000263 |
TRIM - Call your local BRP dealership |
| 35 |
293750008 |
Tie Wrap 368 mm |
| 36 |
293730040 |
Mount Dart This part replaces 293730018. |
| 37 |
250200041 |
Lock Washer Serrated M6 |
| 38 |
515176035 |
HORN - Call your local BRP dealership |
| 39 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 40 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 41 |
414745900 |
Tuflock Phillips Plastic Screw |
| 42 |
515175668 |
Male Terminal Housing, 6 Circuits |
| 43 |
293000052 |
Sealing Cap |
| 44 |
Not |
Available As Spare Part - Ground Wire |
| 45 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 46 |
278000735 |
Female Lock, 6 Circuits |
| 47 |
515176132 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 48 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 49 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 50 |
515176087 |
Heater Element |
| 51 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 52 |
515175232 |
Male Terminal |
