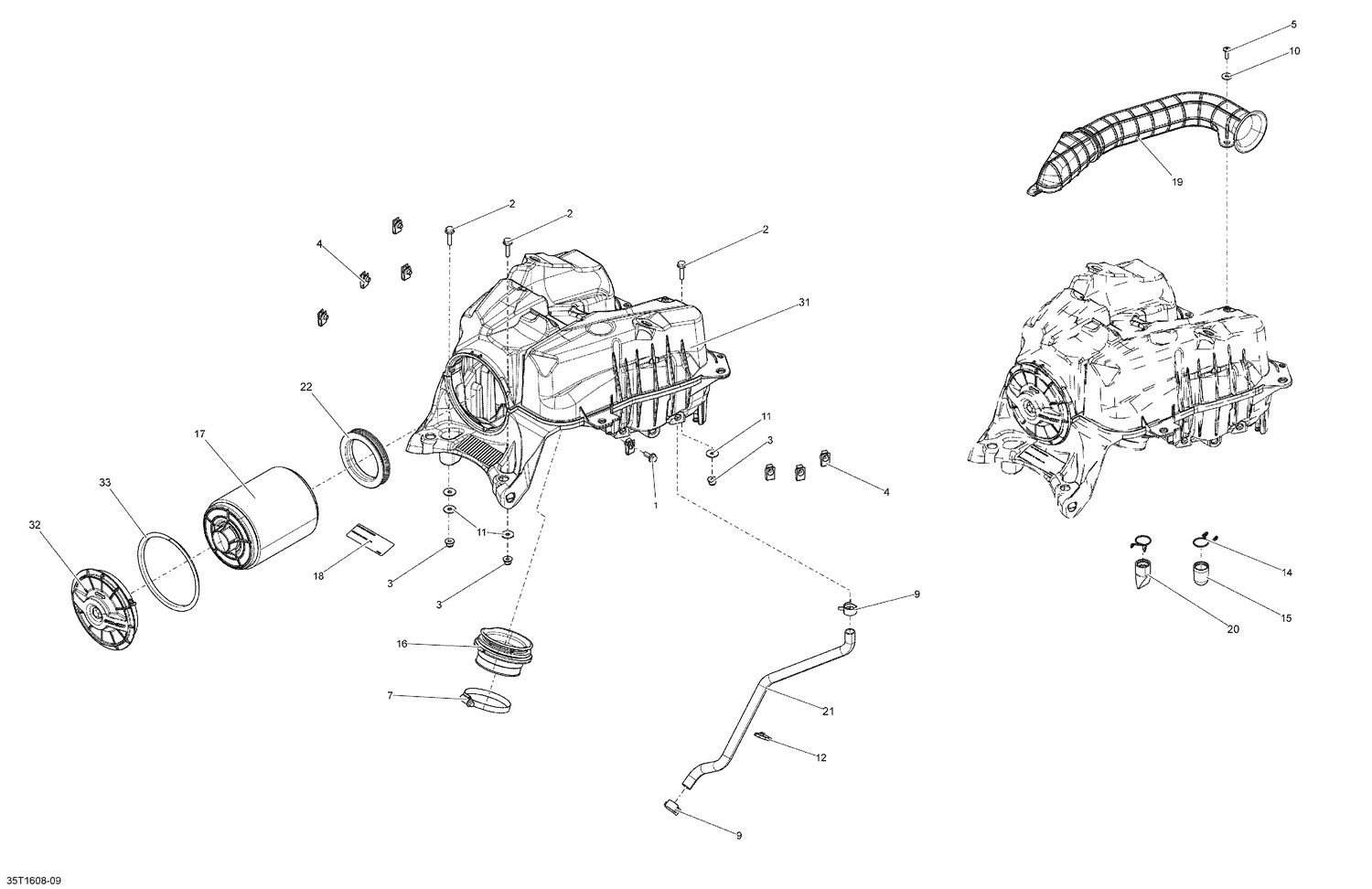

02- Air Intake
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 207662534 | Hex. Flange Screw M6 X 25 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 5 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 7 | 293650091 | Norma Clamp |
| 9 | 293650110 | Norma Clamp |
| 10 | 391301600 | Washer |
| 11 | 250200082 | Flat Washer |
| 12 | 414115200 | Tie-Rap 180 mm |
| 14 | 707800278 | Retainer Clip |
| 15 | 707800080 | Drain Tube |
| 16 | 707800333 | Intake Adaptor |
| 17 | 707800371 | Air Filter |
| 18 | 707800373 | Air Filter Maintenance Decal |
| 19 | 707800375 | Air Intake Hose |
| 20 | 707801178 | Drain Valve This part replaces 707800404. |
| 21 | 707800453 | Vent Hose |
| 22 | 707800470 | Air Filter Adaptor |
| 31 | 707800599 | Welded Air Box |
| 32 | 715002174 | Intake Silencer Cap Ass'y This part replaces 707800518. |
