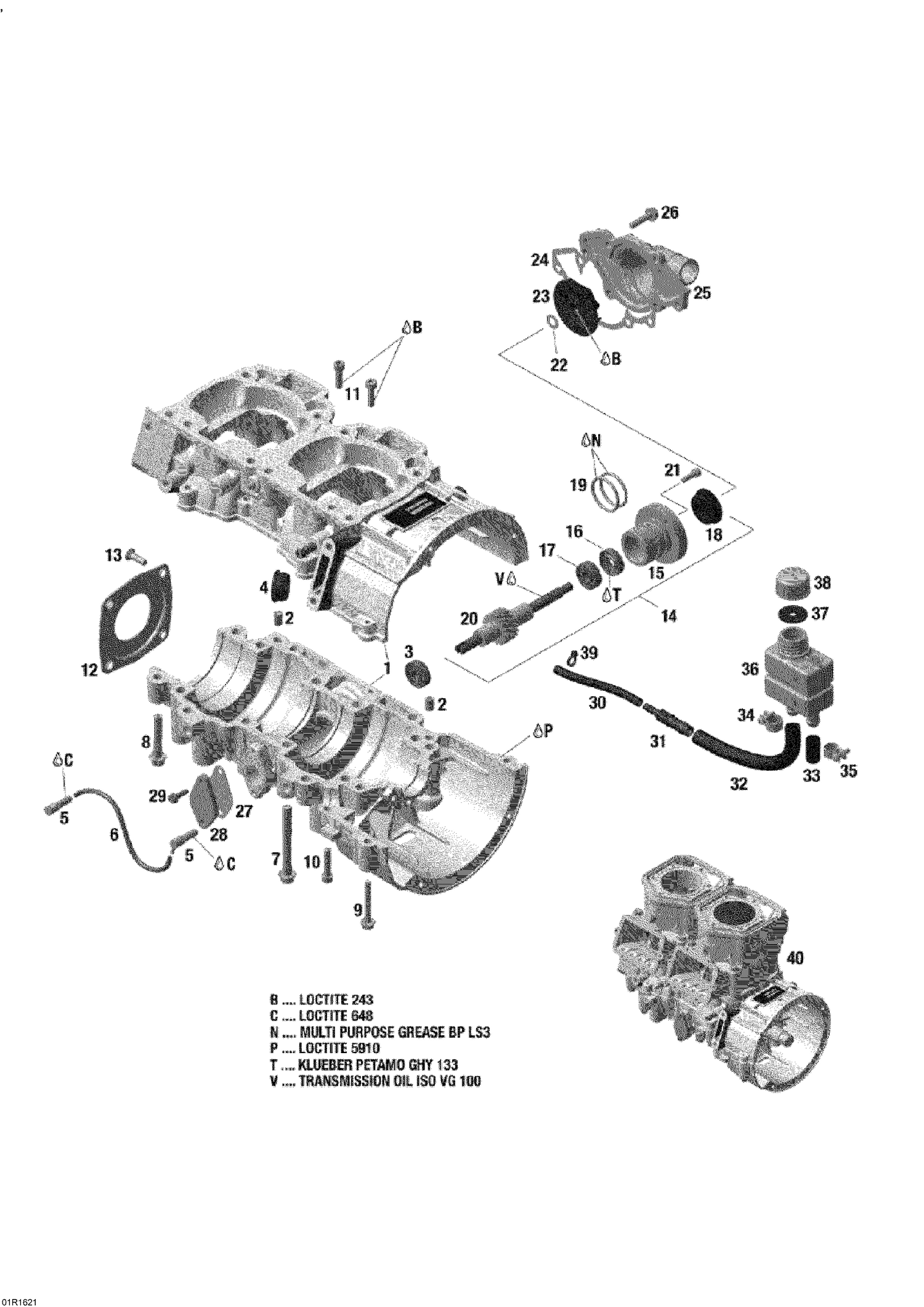

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| C |
Not |
Available As Spare Part - Loctite 648 |
| N |
Not |
Available As Spare Part - Multipurpose Grease BP LS3 |
| P |
Not |
Available As Spare Part - Loctite 5910 |
| T |
Not |
Available As Spare Part - Grease |
| 2 |
420632010 |
Center Pin 8 X 12 |
| 3 |
420232100 |
Ball Bearing |
| 4 |
420860965 |
Cable Grommet |
| 5 |
420956511 |
Check Valve This part replaces 420956510. |
| 6 |
414413800 |
Oil Hose |
| 12 |
420812422 |
Oil Seal Cover This part replaces 420812420. |
| 15 |
Not |
Available As Spare Part - Step Collar |
| 17 |
420232100 |
Ball Bearing |
| 18 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 20 |
Not |
Available As Spare Part - Water Pump/Oil Pump Shaft |
| 22 |
420227945 |
Washer |
| 25 |
420922630 |
Water Pump Housing |
| 27 |
420931568 |
Joint *Gasket This part replaces 420931566. |
| 28 |
420810827 |
Cover Plate |
| 30 |
415110000 |
Polyurethane Hose 5.2 mm |
| 31 |
420874370 |
Fitting |
| 32 |
420956239 |
OIL TUBE - Call your local BRP dealership |
| 33 |
420960279 |
Closure Cap |
| 34 |
420951260 |
CLAMP - Call your local BRP dealership |
| 35 |
420951241 |
CLAMP - Call your local BRP dealership |
| 37 |
420850350 |
Rubber Gasket |
| 38 |
420956250 |
Oil Tank Cap |
| 39 |
420866710 |
Tie-Wrap 142x2.5 mm |
| 40 |
300059325 |
Short Block 593 RS |
