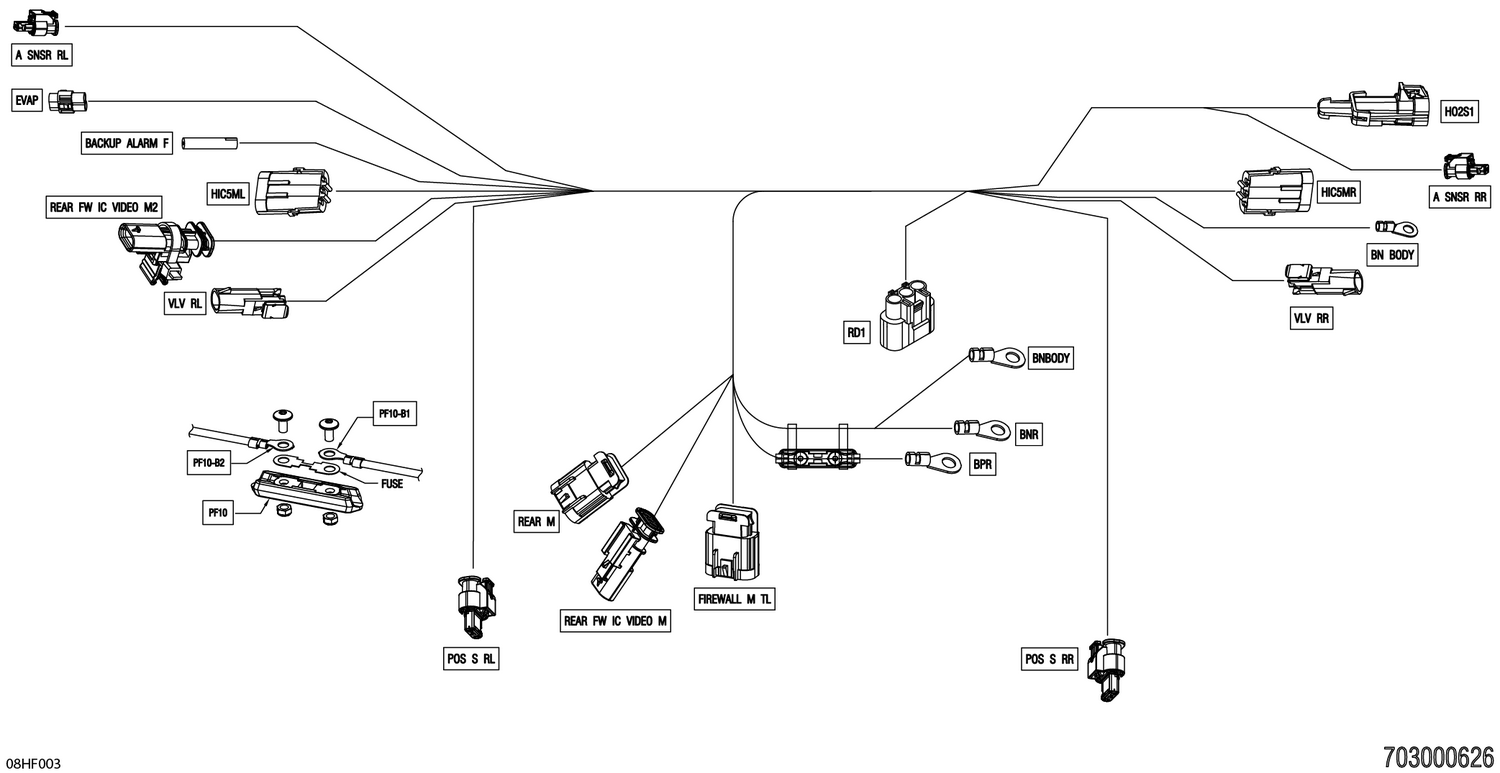

08- Electric - Junction Wiring Harness - 710010774
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| A | SNSR | RL 710006538 Connector Guard 710006538 |
| BACKUP | ALARM | F 278001007 Insulated Sheath 278001007 |
| BNBODY | 710000530 | Open Barrel |
| BNR | 710000913 | Terminal |
| BPR | 710000913 | Terminal |
| EVAP | 409012100 | Female Terminal |
| EVAP | 409209200 | Female Terminal Housing, 2 Circuits |
| EVAP | 710000402 | Wire Seal |
| FIREWALL | M | TL 710000992 Clip 710000992 |
| HIC5ML | 278000222 | Male Terminal |
| HIC5ML | 278000281 | Female Terminal Housing, 3 Circuits |
| HIC5ML | 278001065 | Wire Seal |
| HIC5ML | 710000992 | Clip |
| HIC5MR | 278000222 | Male Terminal |
| HIC5MR | 278000281 | Female Terminal Housing, 3 Circuits |
| HIC5MR | 278001065 | Wire Seal |
| HIC5MR | 710000992 | Clip |
| HO2S1 | 278001482 | Seal |
| HO2S1 | 710002006 | Holder |
| HO2S1 | 710002466 | Housing |
| HO2S1 | 710002469 | Lock |
| HO2S1 | 710002597 | Gold Terminal |
| PF10 | 710007204 | Fuse Holder Support |
| POS | S | RL 710009568 Connector Guard 710009568 |
| RD1 | 710000879 | Female Housing, 3 Circuits |
| RD1 | 710000882 | Cap |
| RD1 | 710001932 | Seal |
| RD1 | 710001934 | Terminal |
| REAR | FW | IC VIDEO M 710008502 Connector TYCO Male 3 Cavities 710008502 |
| 60 | 710010774 | Junction Wiring Harness |
