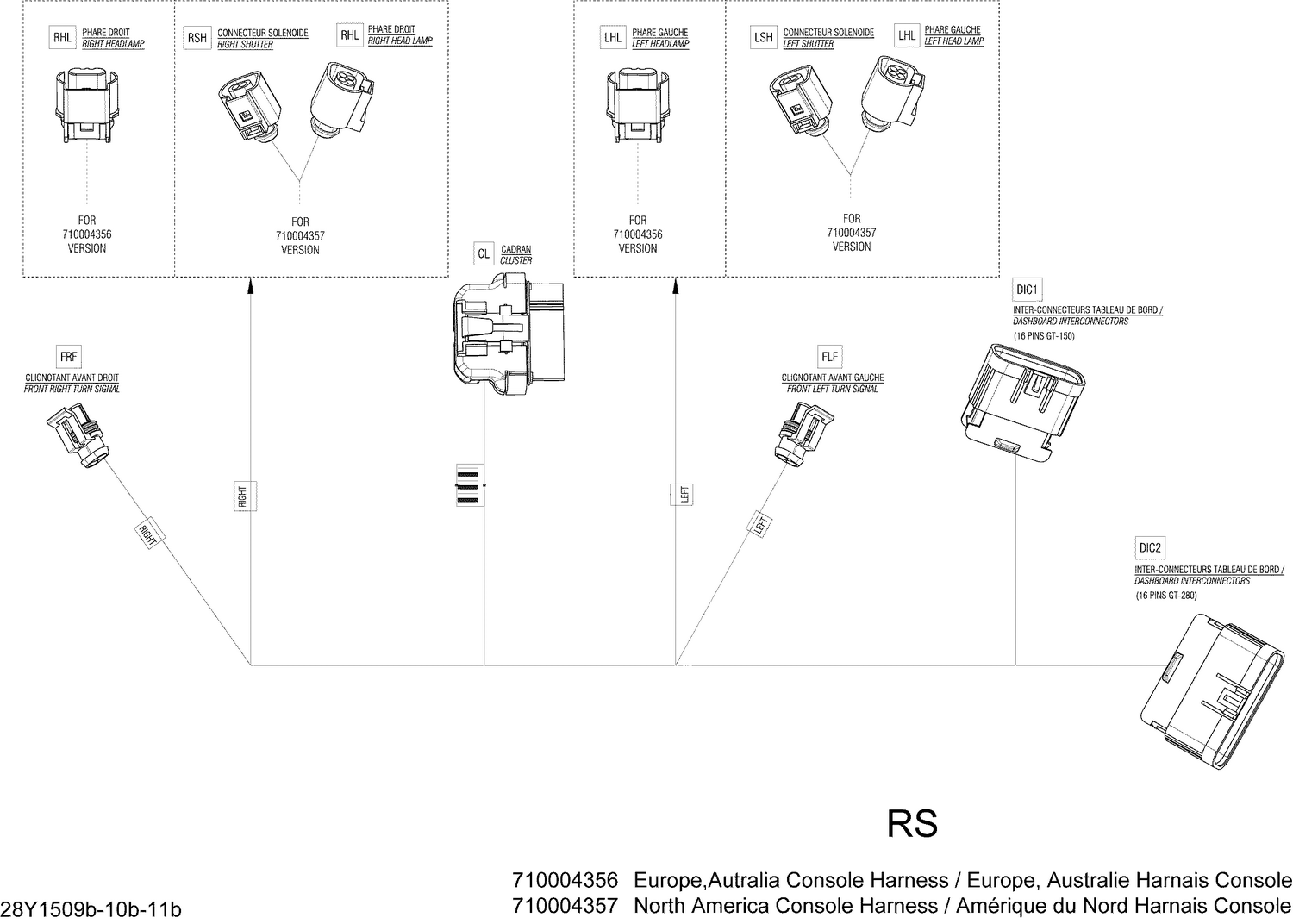

10- Electrical Harness Console_28Y1509b
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| CL | 515175801 | Female Housing, 24 Circuits |
| CL | 515175802 | Retainer Block |
| CL | 515175803 | Wire Seal |
| CL | 515175806 | Female Terminal |
| CL | 515175812 | Plug |
| CL | 710000399 | Female Housing |
| CL | 710001131 | Female Terminal |
| DIC1 | 710001224 | Terminal |
| DIC1 | 710001225 | Cap |
| DIC1 | 710001227 | Housing |
| DIC1 | 710001233 | Seal |
| DIC2 | 278002186 | Wire Seal |
| DIC2 | 710001856 | Housing |
| DIC2 | 710001857 | Terminal |
| DIC2 | 710001859 | Terminal |
| DIC2 | 710002075 | Plug |
| DIC2 | 710003153 | Seal |
| FLF | 409209500 | Female Housing, 2 Circuits |
| FLF | 515176621 | Wire Seal |
| FLF | 710001340 | Female Terminal |
| FRF | 409209500 | Female Housing, 2 Circuits |
| FRF | 515176621 | Wire Seal |
| FRF | 710001340 | Female Terminal |
