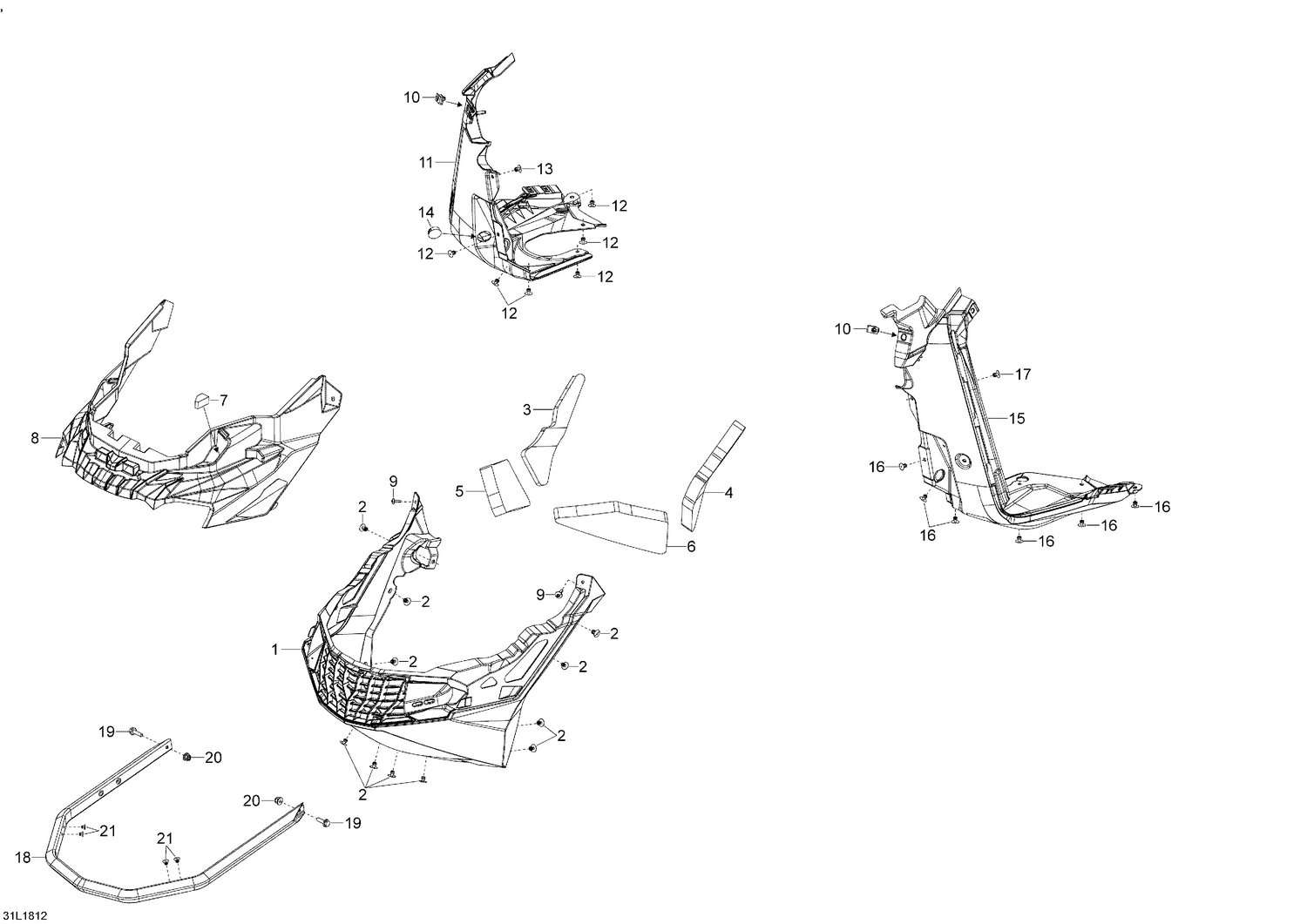

09- Bottom Pan Rave
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502007172 | Black Front Bottom Pan |
| 2 | 293150104 | Pop Rivet 3/16 |
| 3 | 502007243 | RH Bottom Pan Upper Foam |
| 4 | 502007244 | LH Bottom Pan Upper Foam |
| 5 | 502007245 | RH Bottom Pan Lower Foam |
| 6 | 502007246 | LH Bottom Pan Lower Foam |
| 8 | 502007284 | Front Cap |
| 9 | 250000528 | Torx Screw M5 X 20 |
| 10 | 250000958 | Panel Nut M5 X 0.8 |
| 12 | 293150104 | Pop Rivet 3/16 |
| 13 | 293150103 | Pop Rivet 3/16 |
| 14 | 414916600 | Nylon Cap |
| 15 | 502007260 | LH Bottom Pan |
| 16 | 293150104 | Pop Rivet 3/16 |
| 17 | 293150103 | Pop Rivet 3/16 |
| 18 | 502007281 | Black Front Bumper |
| 19 | 207662044 | Hex. Flange Screw M6 X 20 |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 21 | 293150104 | Pop Rivet 3/16 |
