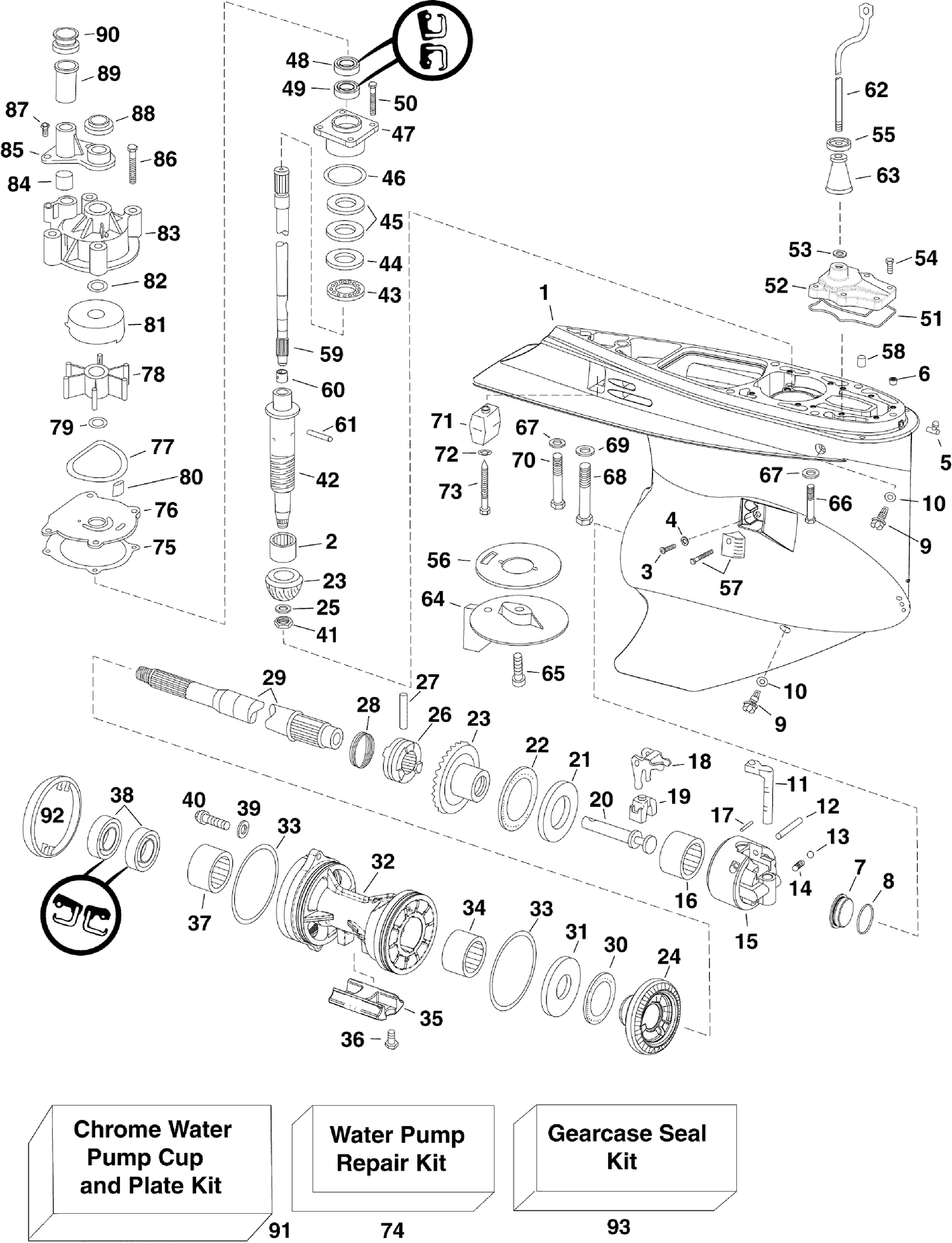

GEARCASE, M2-Type
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 59 | 5007137 | DRIVESHAFT Assembly, Upper |
| 62 | 0352808 | SHIFT ROD |
| 64 | 0338742 | COMPENSATEUR DE DÉRIVE |
| 65 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 | 0331999 | SCREW, Gearcase housing |
| 68 | 0331998 | SCREW, Gearcase to housing |
| 70 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 74 | 5001595 | Water Pump Repair Kit |
| 77 | 0331353 | Seal, Impeller Housing Plate. |
| 82 | 0331188 | O-Ring |
| 92 | 0126669 | Renegade Bass Weed Ring |
