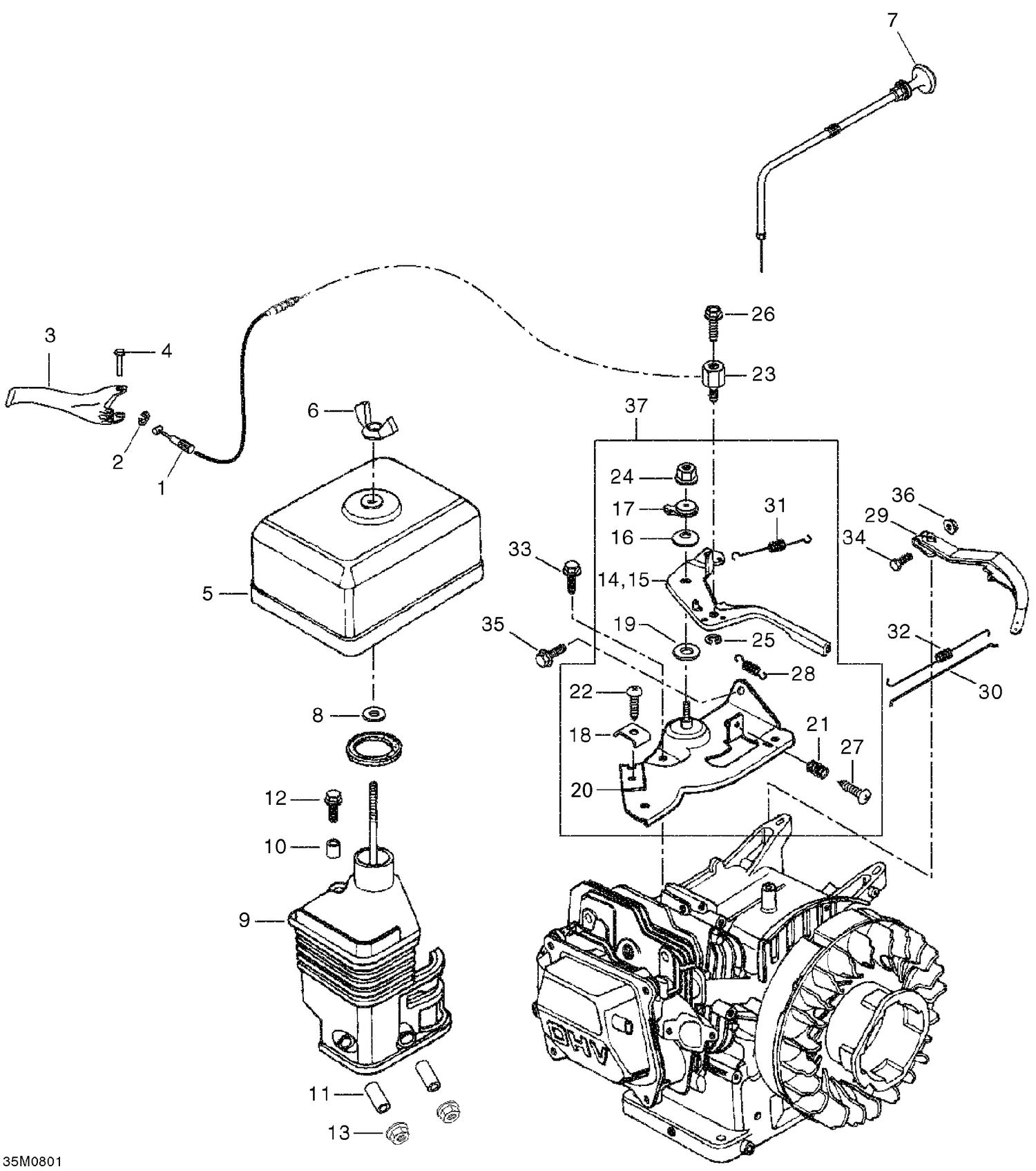

02- Air Intake System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512060024 | THROTTLE CABLE - Call your local BRP dealership |
| 2 | 414274500 | Circlip |
| 5 | H17230ZE0820 | Intake Cover |
| 6 | H90325044000 | Wing Nut |
| 7 | 415108600 | CHOKE CABLE - Call your local BRP dealership |
| 8 | 234461608 | External Serrated Lock Washer 6 mm |
| 10 | H17239ZE1000 | Collar B |
| 11 | H17238ZE0010 | Collar |
| 12 | H957010602000 | Flanged Bolt 6 x 20 |
| 13 | H9405006080 | Flanged Nut 6 mm |
| 15 | H16571ZH7000 | Control Lever |
| 16 | H16574ZE1000 | Spring Lever |
| 17 | H16575ZH8000 | Washer |
| 18 | H16576891000 | Cable Holder |
| 19 | H16578ZE1000 | Spacer |
| 20 | H16580ZH7810 | Base |
| 21 | H16584883300 | Spring |
| 22 | H93500050160B | Pan Screw 5 x 16 |
| 23 | H16594883010 | Cable Holder |
| 24 | H90114SA0000 | Nut |
| 25 | H90605230000 | Circlip |
| 26 | H93500040060H | Screw |
| 27 | H93500050250H | Screw |
| 28 | 512059048 | RELEASE SPRING - Call your local BRP dealership |
| 29 | H16551ZE1010 | Governor Arm |
| 30 | H16555ZE0000 | Governor Rod |
| 31 | H16561ZE0020 | Governor Spring |
| 32 | H16562ZE0020 | Throttle Return Spring |
| 33 | H90013883000 | Screw |
| 34 | H90015ZE5010 | Bolt |
| 35 | H90022888010 | Screw |
| 36 | H9405006080 | Flanged Nut 6 mm |
