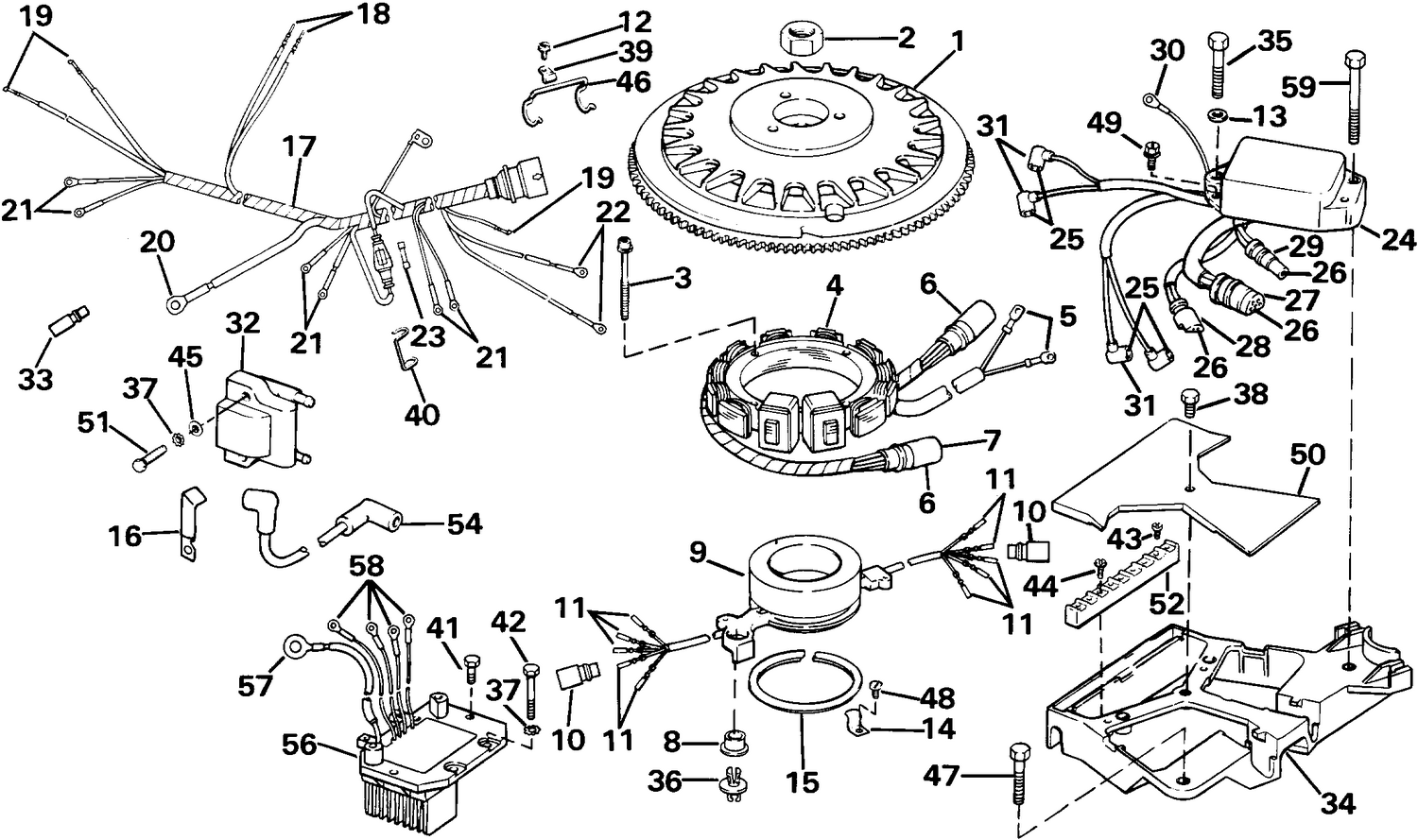

| Ref | Part Number | Description |
|---|
| 1 |
0582854 |
FLYWHEEL ASSY. |
| 3 |
0328672 |
SCREW, Stator mounting |
| 4 |
0582847 |
STATOR ASSY., 35 amp |
| 6 |
0511616 |
CLAMP, Cable |
| 8 |
0329168 |
SOCKET |
| 9 |
0582238 |
TIMER BASE & SENSOR ASSY. |
| 10 |
0512432 |
CONNECTER |
| 14 |
0326439 |
CLAMP, Leads |
| 15 |
0313666 |
RET., Distributor base 1 |
| 17 |
0391483 |
ENGINE CABLE ASSY. |
| 24 |
0583072 |
POWER PACK, Stbd. |
| 24 |
0583073 |
POWER PACK, Port |
| 27 |
0512415 |
CONNECTOR |
| 28 |
0511989 |
CONNECTOR |
| 29 |
0123404 |
CONNECTOR, 1-socket plug |
| 32 |
0582508 |
COIL ASSY |
| 33 |
0123405 |
CONNECTOR |
| 34 |
0582696 |
ELECTRICAL BRACKET ASSY. |
| 35 |
0324814 |
ECREW,Exhaust cover,1-1/2"long |
| 36 |
0330368 |
BUSHING, Timber base |
| 38 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 41 |
0304027 |
VIS, arbre de commande de sens de marche |
| 44 |
0306644 |
VIS, capteur de papillon |
| 47 |
0303398 |
VIS, support |
| 49 |
0512731 |
SCREW, Bumper |
| 50 |
0395312 |
COVER ASSY. |
| 52 |
0512656 |
TERMINAL BLOCK |
| 53 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
